SECTION 6 – ADVANCED SETUP
OMM-139_E • 8/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 119 of 196
Unit Mode = BST Client Unit Mode = BST Manager

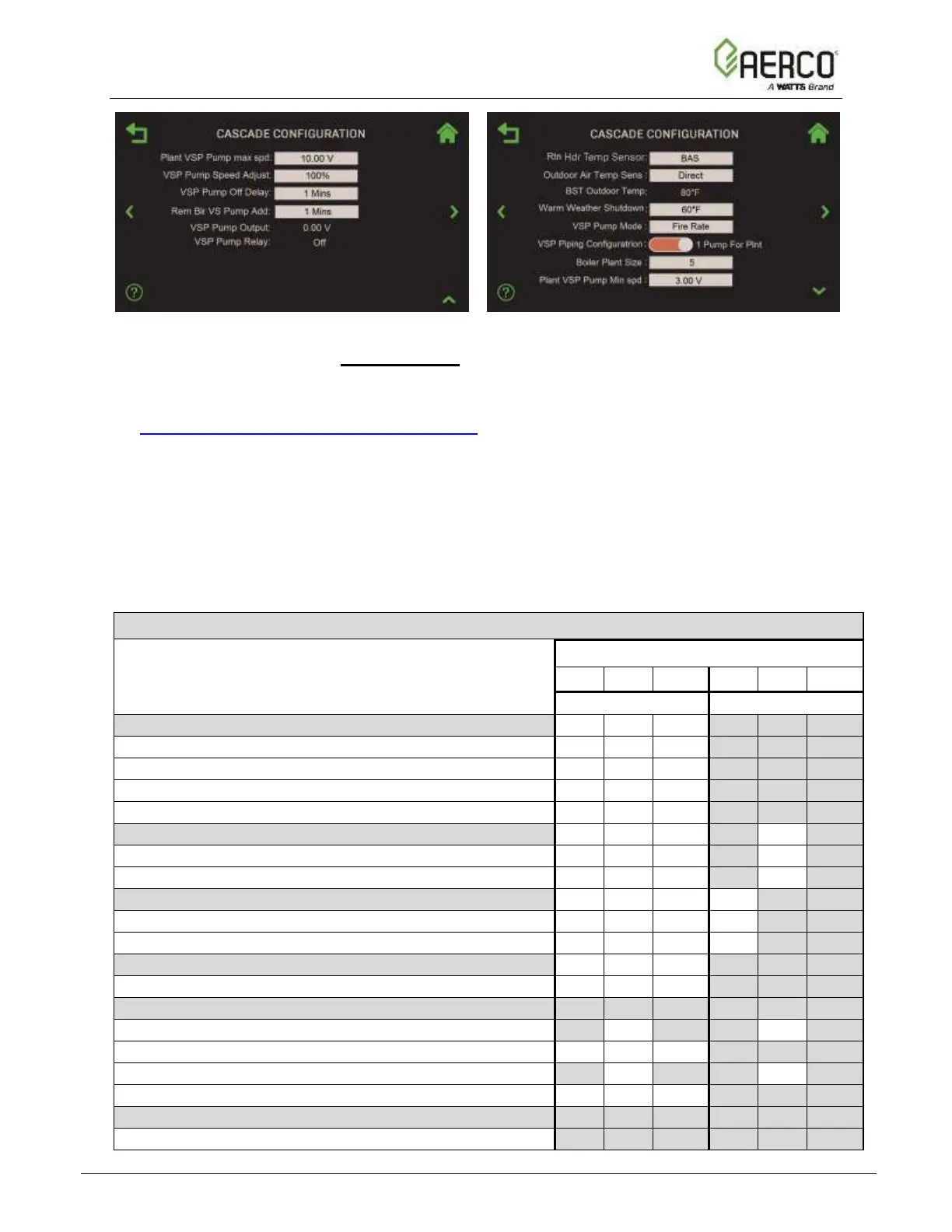

Figure 6.3.1-2: BST Cascade: Cascade Configuration Screen
3. Additional parameters now appear, depending on which Application is currently chosen in
Section 6.3.3: BST Application Configuration. Note, the Application in that section can be
set to SH, DHW or Other, or any of the combination Applications that includes SH, DHW or
Other. For example, if Application SH+DHW-1-Vlv (which includes both SH and DHW) is
chosen in the BST Application Configuration screen, the parameters in both the SH and
DHW columns below will appear.
Consult the table below to determine which parameters apply to your unit; descriptions of
each item appear below the table.
TABLE 6.3: Cascade Configuration Parameters
Parameters
Current BST Application
SH
DHW
Other
SH
DHW
Other
BST Client
BST Manager
1 Auto-Manager Transfer
✓
✓
✓
1a Auto Failover Type (Item 1 = Enabled)
✓
✓
✓
1b Auto-Manager Timer (Item 1 = Enabled)
✓
✓
✓
1c Auto-Manager Addr (Item 1 = Enabled)
✓
✓
✓
1d Backup Manager Addr (Item 1 = Enabled)
✓
✓
✓
2 Hdr Temp Sensor
✓
✓
2a SH Hdr Temp Point (Item 2 = Network, BAS)
✓
✓
2b SH Sensor Comm Addr (Item 2 or 5 = Network or BAS)
✓
✓
3 DHW Temp Sensor
✓
✓
3a DHW Hdr Sens Point (Item 3 = Network or BAS)
✓
✓
3b DHW Temp Unit Addr (Item 3 =Direct)
✓
✓
4 Rtn Hdr Temp Sensor
✓
✓
✓
4a Return Hdr Sens Point (Item 4 = Network)
✓
✓
✓
5 Outdoor Air Temp Sens
✓
✓
✓
✓
✓
✓
5a BST Outdoor Temp (Item 5 ≠ Off)
✓
✓
✓
✓
5b Outdoor Temp Addr (Item 5 = Network)
✓
✓
✓
5c Warm Weather Shtdwn (Item 5 ≠ Off)
✓
✓
✓
✓
5d OAT Temp Point (Item 5 = Network)
✓
✓
✓
6 VSP Pump Mode
✓
✓
✓
✓
✓
✓
6a VSP Pump Speed Adjust (Item 6 ≠ Off)
✓
✓
✓
✓
✓
✓
