Edge [ii] Controller Operation Manual
SECTION 2: EZ SETUP
OMM-139_E • 8/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 21 of 196
1. The SH Operating Mode screen appears. Choose the Operating Mode for space heating
(its square turns green) then press Next to go to that option’s screen:
• If you chose Constant Setpoint, proceed to Step 2.
• If you chose Remote Setpoint, skip to Step 3.
• If you chose Direct Drive, skip to Step 4.
• If you chose Combo Unit, skip to Step 5.
• If you chose Outdoor Air Temperature Reset, skip to Step 6.

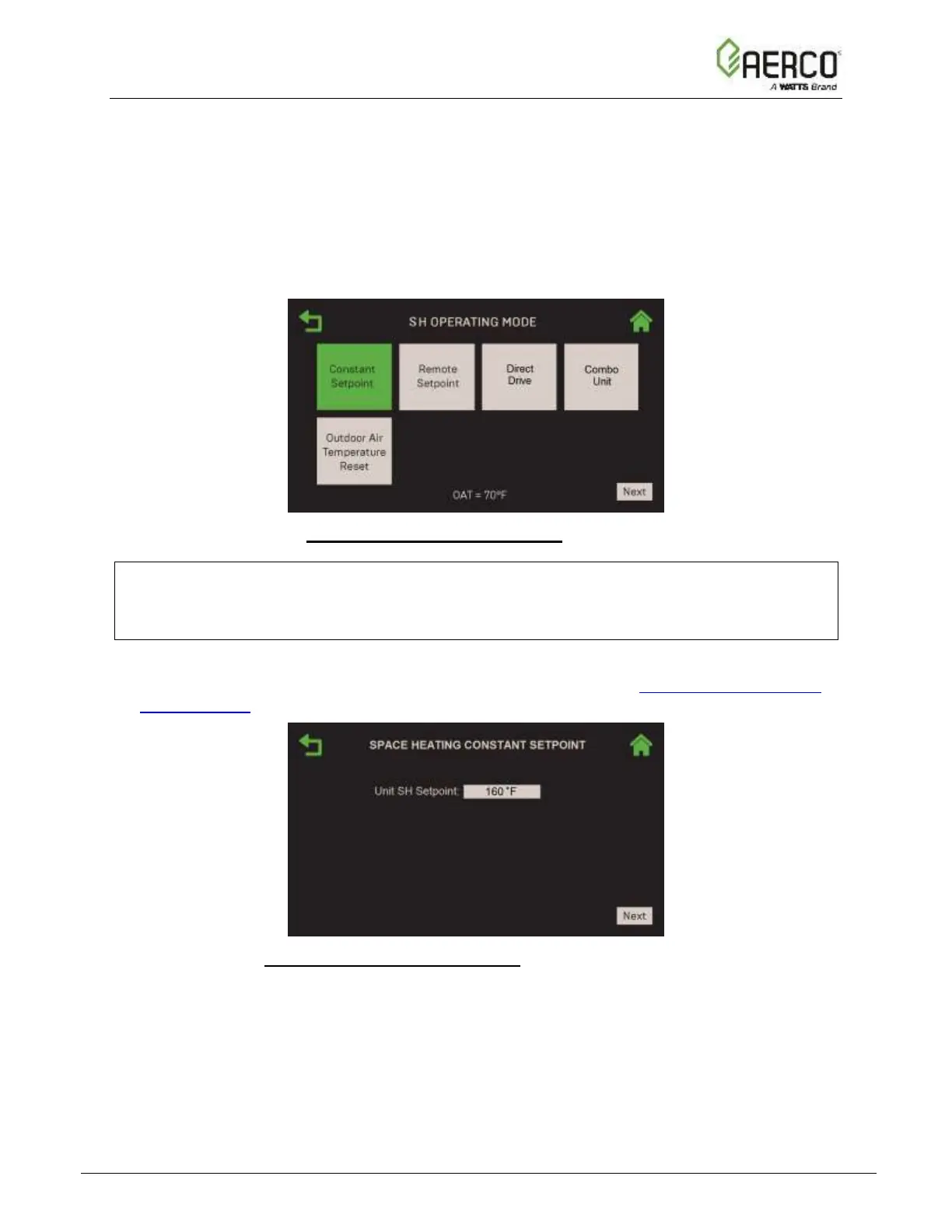

Figure 2.2.1-2: Standalone – Space Heating: Operating Mode Screen
NOTE:
If the outdoor air sensor is not connected, the Outdoor Air Temperature Reset option is
disabled.
2. If you chose Constant Setpoint in Step 1, specify it in the Unit SH Setpoint parameter.
Pressing Next takes you to the Select BAS Mode screen; skip to Section 2.4: Completing
the Installation for instructions.
Figure 2.2.1-3: Standalone – Space Heating: Space Heating Constant Setpoint
