Edge [ii] Controller Operation Manual
SECTION 2: EZ SETUP
OMM-139_E 8/25/2020 Technical Support (800) 526-0288 Mon-Fri, 8 am - 5 pm EST Page 27 of 196
2. If you chose Constant Setpoint in Step 1, the Other Heating Constant Setpoint screen
appears. Specify the Unit Other Setpoint. Pressing Next takes you to the Select BAS
Mode screen; skip to Section 2.4: Completing the Installation for instructions.

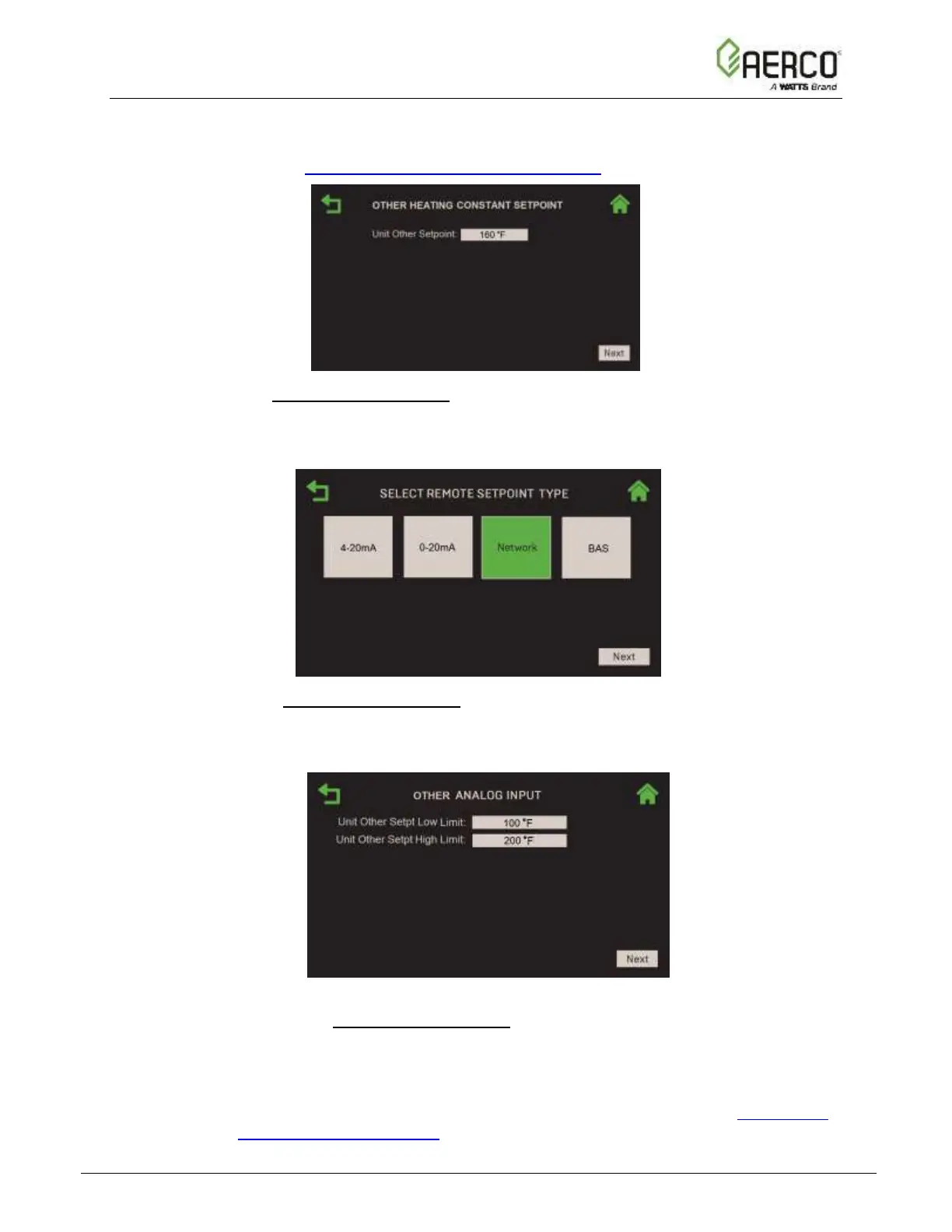

Figure 2.2.3-3: Standalone Other: Other Heating Constant Setpoint Screen
3. If you chose Remote Setpoint in step 1, the Select Remote Setpoint Type screen
appears. Choose how the unit will access the setpoint, then press Next.
Figure 2.2.3-4: Standalone Other: Select Remote Setpoint Type Screens
A. If you chose either 4-20mA or 0-20mA the Other Analog Input screen appears.
Configure the following parameters:
Figure 2.2.3-5: Standalone Other: Other Analog Input Screen
Enter the upper and lower limits of the “other” setpoint in the Unit Other
Setpt Low Limit and Unit Other Setpt High Limit parameters.
Pressing Next takes you to the Select BAS Mode screen; skip to Section 2.4:
Completing the Installation for instructions
