2. If you chose Constant Setpoint in step 1, specify the SH Setpoint. When you press Next
the Other Operating Mode screen appears (skip to Step 5).

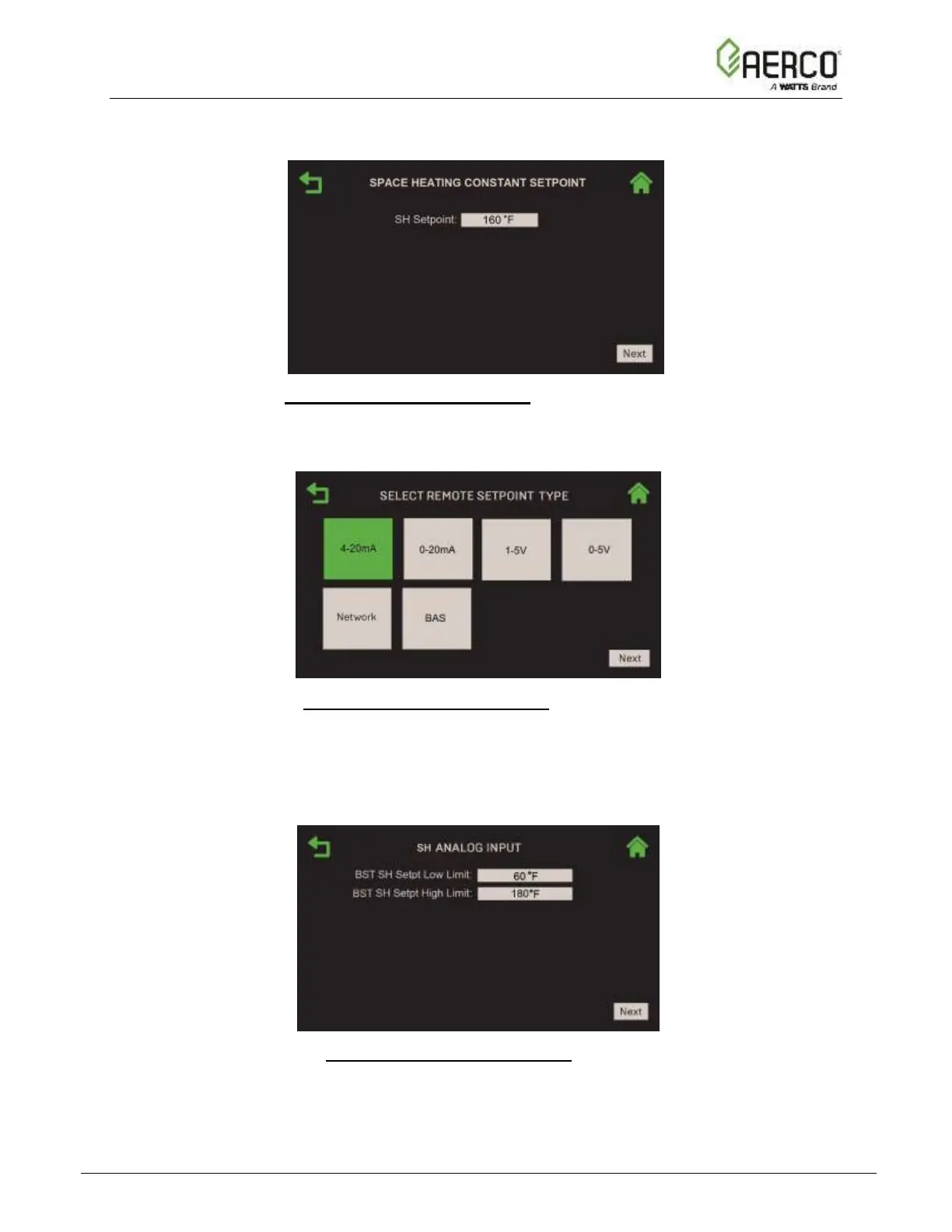

Figure 2.3.2.2.3-3: BST Manager – SH & Other: Space Heating Constant Setpoint
3. If you chose Remote Setpoint in step 1, the Select Remote Setpoint Type screen
appears. Choose how the unit will access the setpoint, then press Next.
Figure 2.3.2.2.3-4: BST Manager – SH & Other: Select Remote Setpoint Type
A. If you chose 4-20mA, 0-20mA, 1-5V, or 0-5V, the SH Analog Input screen appears.
Enter the upper and lower limits of the SH setpoint in the BST SH Setpt Low
Limit and BST SH Setpt High Limit fields. When you press Next the Other
Operating Mode screen appears (skip to Step 5).
Figure 2.3.2.2.3-5: BST Manager – SH & Other: SH Analog Input Screen
B. If you chose either Network or BAS, the Other Operating Mode screen appears
(skip to Step 5).
