Edge [ii] Controller Operation Manual
SECTION 2: EZ SETUP
OMM-139_E • 8/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 54 of 196

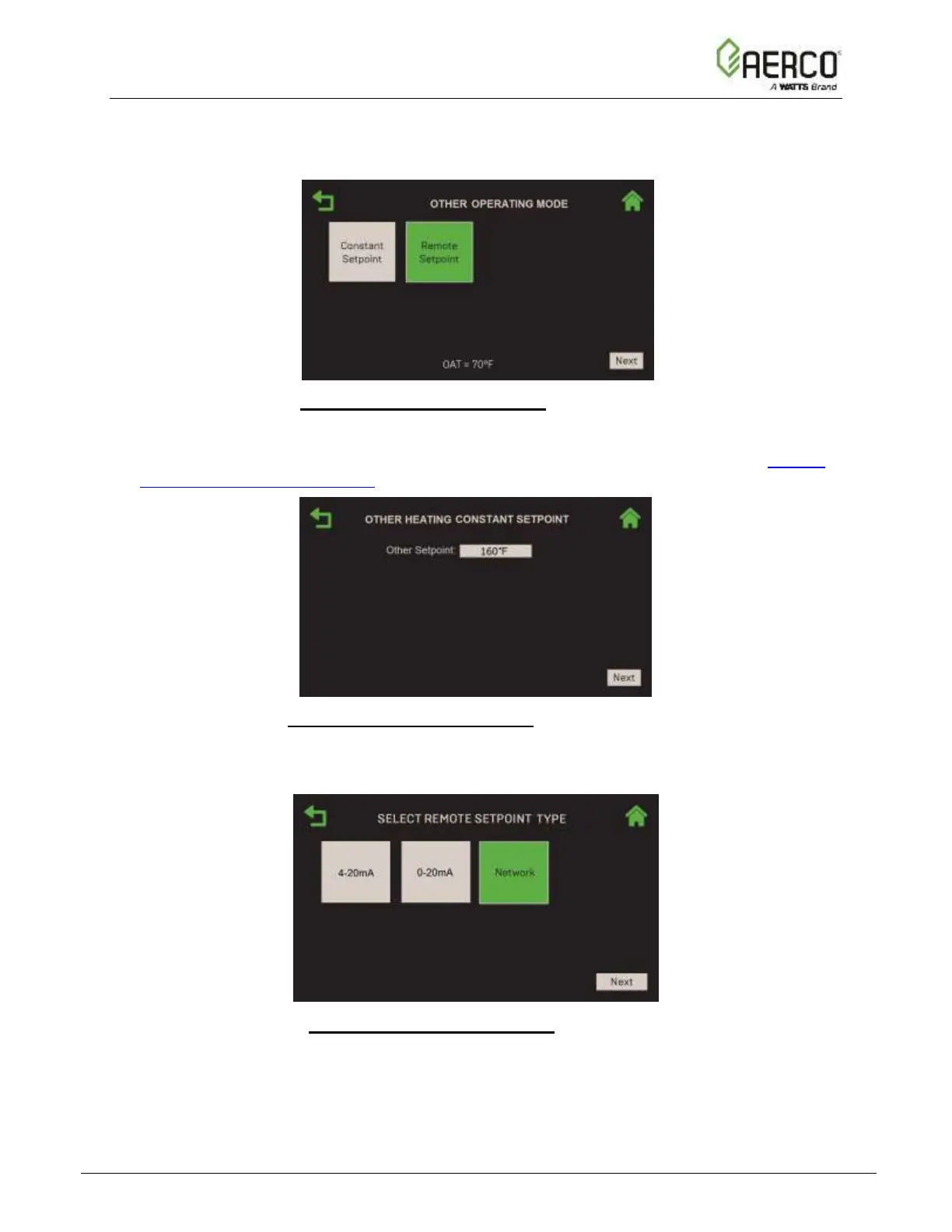

5. When all Space Heating parameters have been configured, the Other Operating Mode
screen appears. Choose either Constant Setpoint or Remote Setpoint. Press Next to
continue.
Figure 2.3.2.2.3-8: BST Manager – SH & Other: Other Operating Mode Screen
6. If you chose Constant Setpoint in step 5, specify the setpoint for the “other” application in
Other Setpoint. Pressing Next takes you to the Select BAS Mode screen; skip to Section
2.4: Completing the Installation for instructions.
Figure 2.3.2.2.3-9: BST Manager – SH & Other: Other Heating Constant Setpoint
7. If you chose Remote Setpoint in step 5, the Select Remote Setpoint Type screen
appears. Choose how the unit will access the setpoint, then press Next.
Figure 2.3.2.2.3-10: BST Manager – SH & Other: Select Remote Setpoint Type
A. If you chose either 4-20mA or 0-20mA, the Other Analog Input screen appears. Fill
in the following parameters:
• Choose the remote setpoint source in the Other Rmt Setpt Source field
(the previous choice, if there was one, has a green border): Spare Analog In
1, Spare Analog In 2 or Spare Analog In 3.
