Edge [ii] Controller Operation Manual
SECTION 2: EZ SETUP
OMM-139_E • 8/25/2020 Technical Support • (800) 526-0288 • Mon-Fri, 8 am - 5 pm EST Page 56 of 196

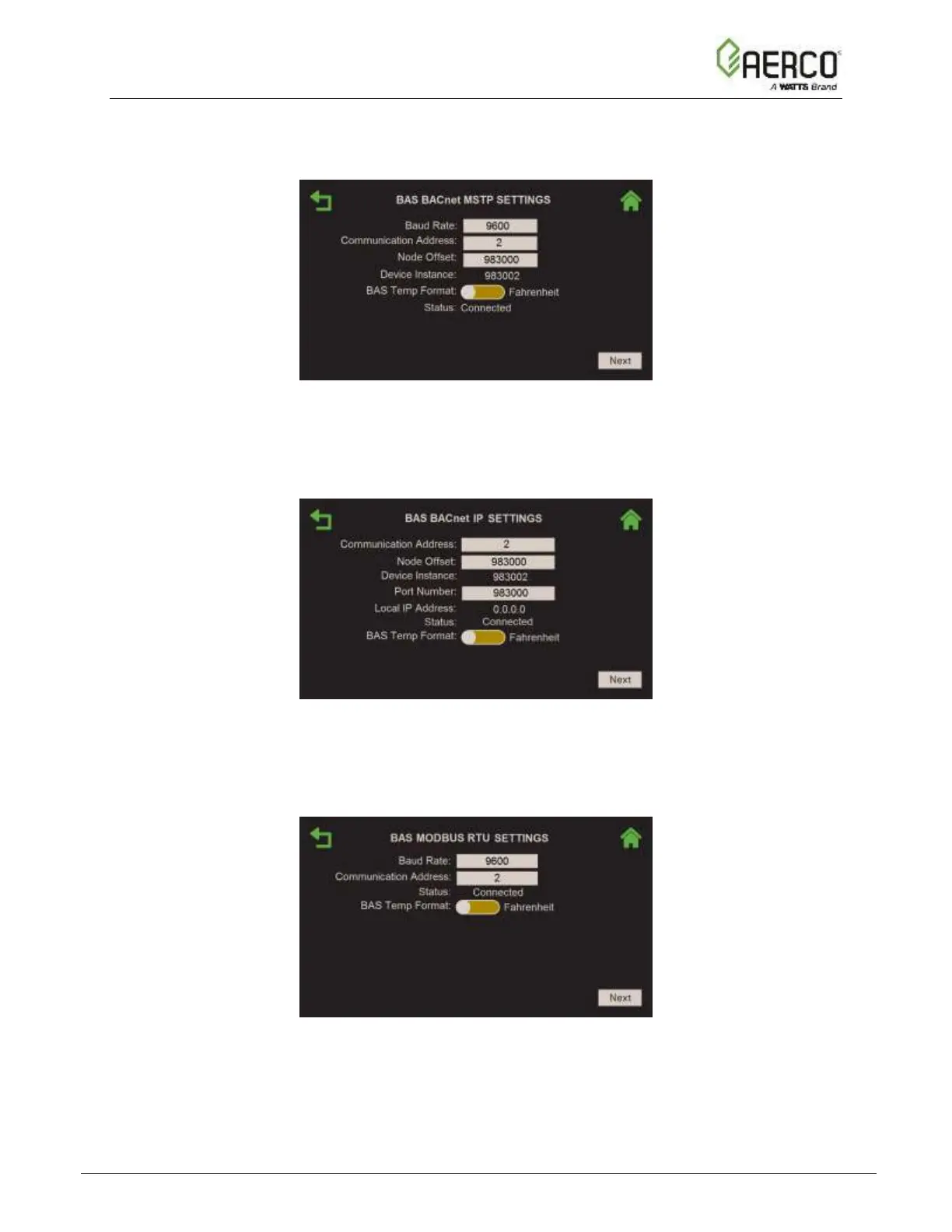

3. If you chose BACnet MSTP, the BAS BACnet MSTP Settings screen appears. Fill in the
parameters to establish communications with BAS via BACnet MSTP. Pressing Next
completes the setup (skip to Step 7).
Figure 2.4-2: BAS BACnet MSTP Settings Screen
4. If you chose BACnet IP, the BAS BACnet IP Settings screen appears. Fill in the
parameters to establish communications with BAS via BACnet IP. Pressing Next completes
the setup (skip to Step 7).
Figure 2.4-3: BAS BACnet IP Settings Screen
5. If you chose Modbus RTU, the BAS Modbus RTU Settings screen appears. Fill in the
parameters to establish communications with BAS via Modbus RTU. Pressing Next
completes the setup (skip to Step 7).
Figure 2.4-5: BAS Modbus RTU Settings Screen
