9.9 Set Cycle Machining
This operation is used to set times and interval of cycle machining and check the
finished times.
To set cycle machining, do the following:

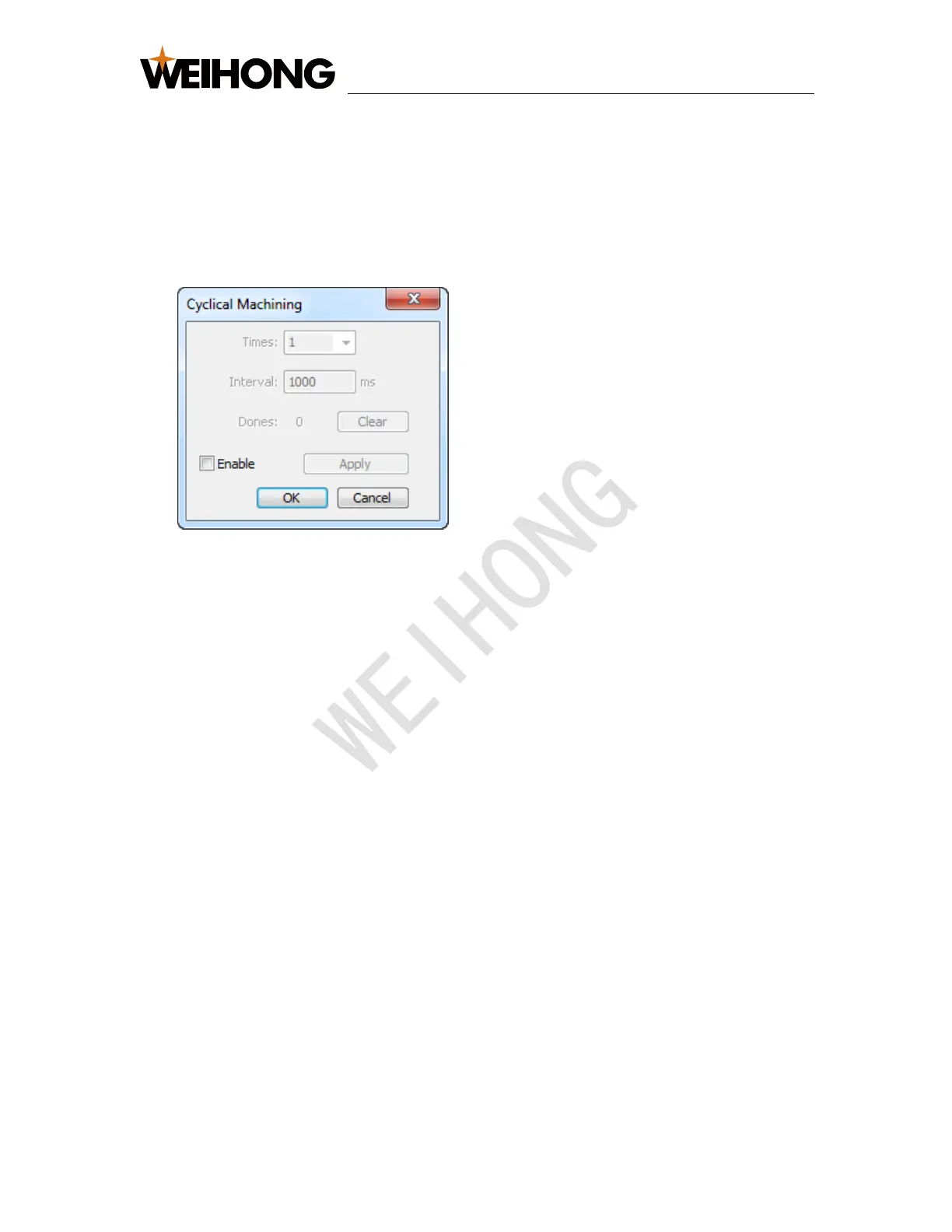

1. Click Mach → Cyclical Machining. Cyclical Machining dialog box pops up:
2. Check Enable, and set times and interval of cycle machining.
3. Click OK or Apply.
After finishing the set cycle times, you need to clear the current finished times by
clicking Clear.
The system counts the finished times as follows:
• If you pause/stop machining before reaching the set cycle times, the number
behind Dones indicates the actual cycle times finished at present.
• If a toolpath file is machined completely, the finished cycle times add one.
• Cycle machining is also available to dry run.
