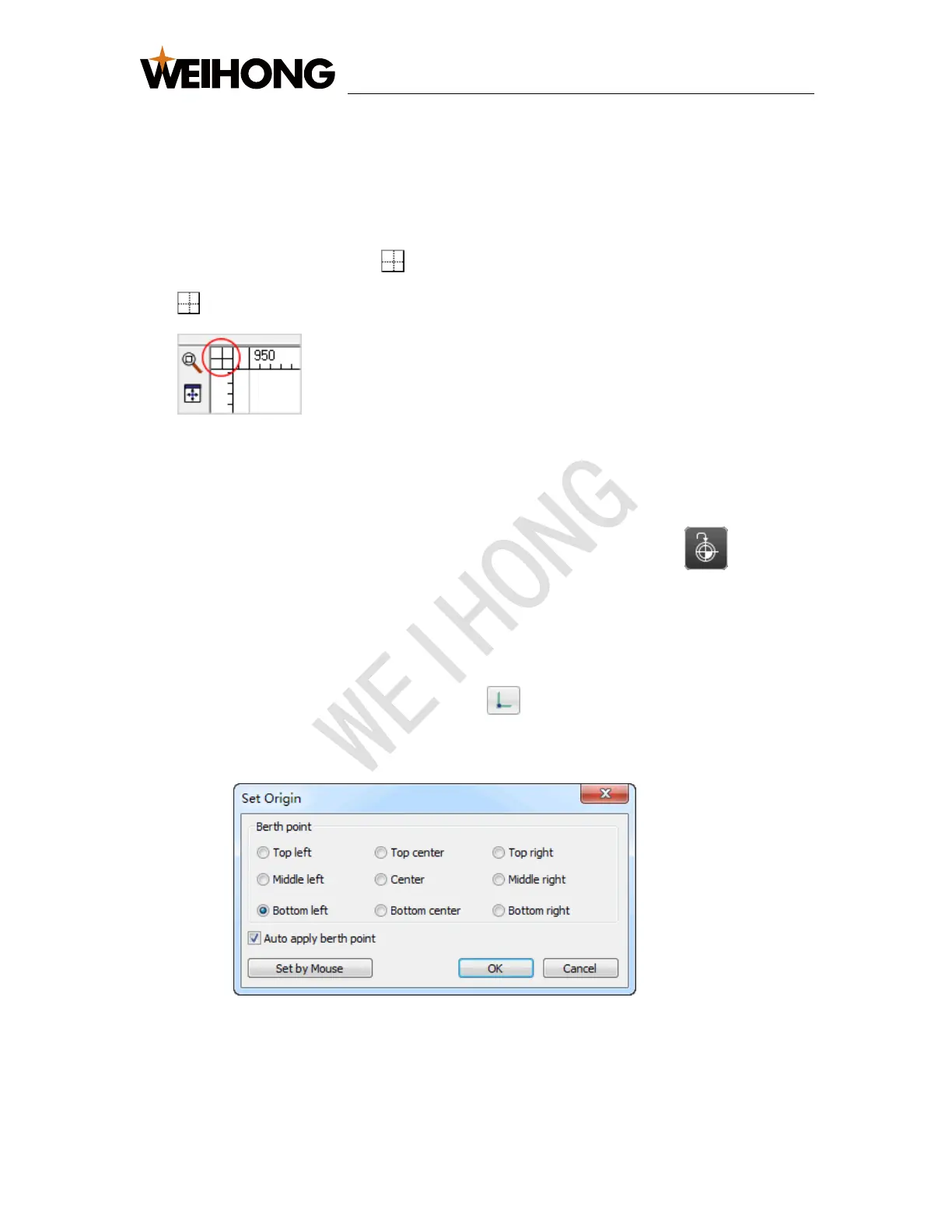

2.4 Set the Workpiece Origin
This operation is used to define the coordinate origin in a toolpath file before
machining.
To set the workpiece origin, do one of the following:
• In drawing window, drag to the target position.
is at the intersection of horizontal scale and vertical scale:
• Specify the position of the cutting head as the workpiece origin:
1. To move the cutting head to the target position, click X+ / X- / Y+ / Y- in
machine control area.
2. To set the current position as the workpiece origin, click in
machine control area or press F5.
• Set the berth point as the workpiece origin:
1. To open Set Origin dialog box, do one of the following:
• In drawing toolbar, click .
• In menu bar, click Mach → Set Origin.
Set Origin dialog box pops up:
2. Select a position for the berth point.
3. Optional: Check Auto apply berth point.
