上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
5 / 131
: Catch
Used to enable/disable catching function.
: Catch option
Used to catch option.
If one or more objects are selected, it shows related information of the objects
and the following buttons:
: Preprocess
See Preprocess with One Click for details.
: Group
See Group or Ungroup Objects for details.
: Ungroup
See Group or Ungroup Objects for details.
1.2 Drawing Window
It is used to draw and preview objects.

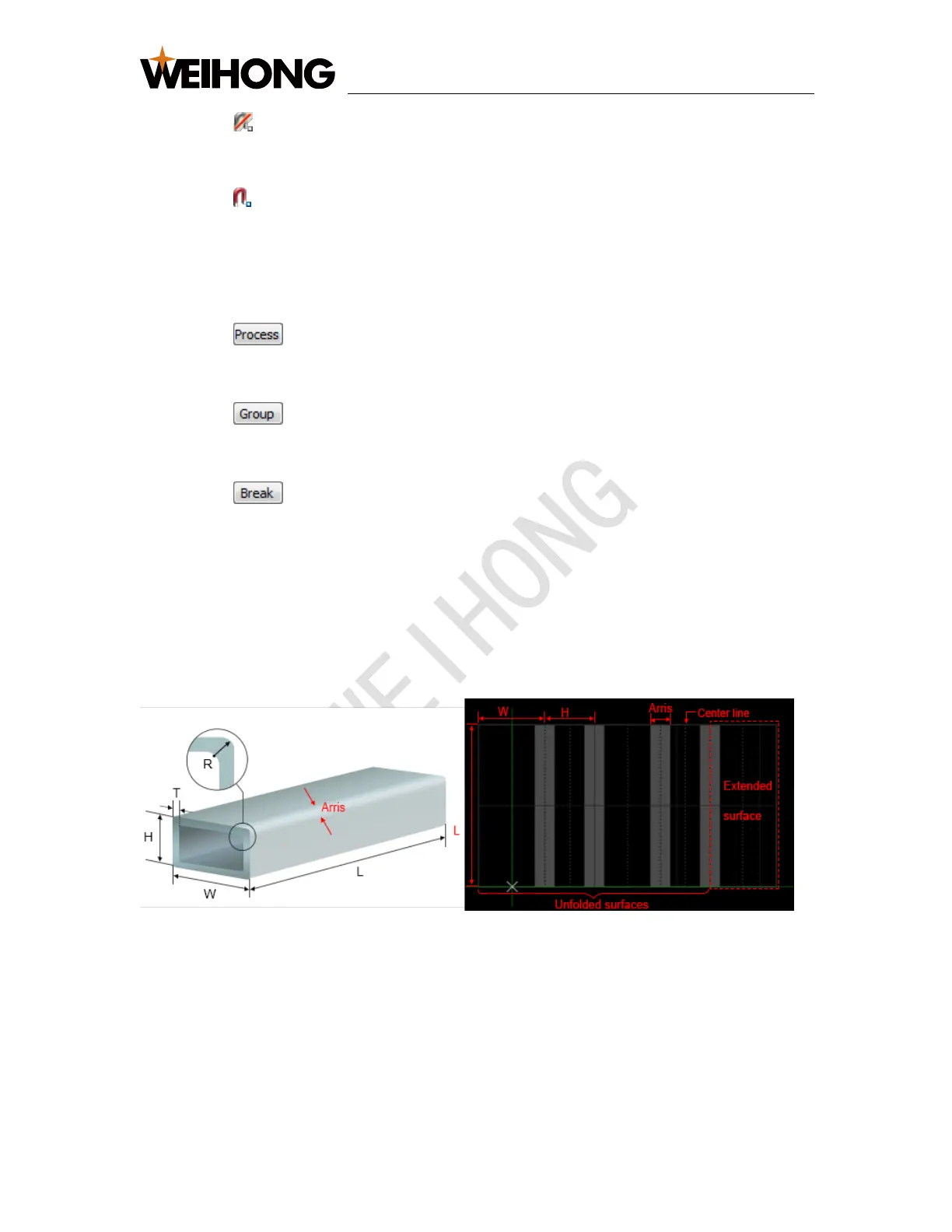

In tube cutting configuration, the development effect of a rectangular tube shows in
drawing window for ease of drawing:
Length of an arris: depending on the corner radius and thickness of the
rectangular tube.
Extended face: corresponding to the first face of the actual tube.
Center line: including face center line and arris center line. It exists on each
face. When you drag the object, the center of the object automatically gets close
to the center line.
