5.10 Add Chamfer
This operation is used to add chamfers to angles less than 180°, so as to improve
cutting effect on corners of a thick workpiece. It is applicable to all objects.
To add chamfer, do one of the following:
• Automatically add chamfer.
Used to automatically add chamfer to the selected and qualified objects
according to the set value.
• Manually add chamfer.
Used to manually select chamfer position based on your need. The range of the
angle is (0, 180)°.
5.10.1 Automatically Add Chamfer
To automatically add chamfer, do the following:
1. Select the target objects.
2. To open Chamfer dialog box, do one of the following:
– In menu bar, click Object → Special Technics → Chamfer.
– In drawing window, right click and select Chamfer.

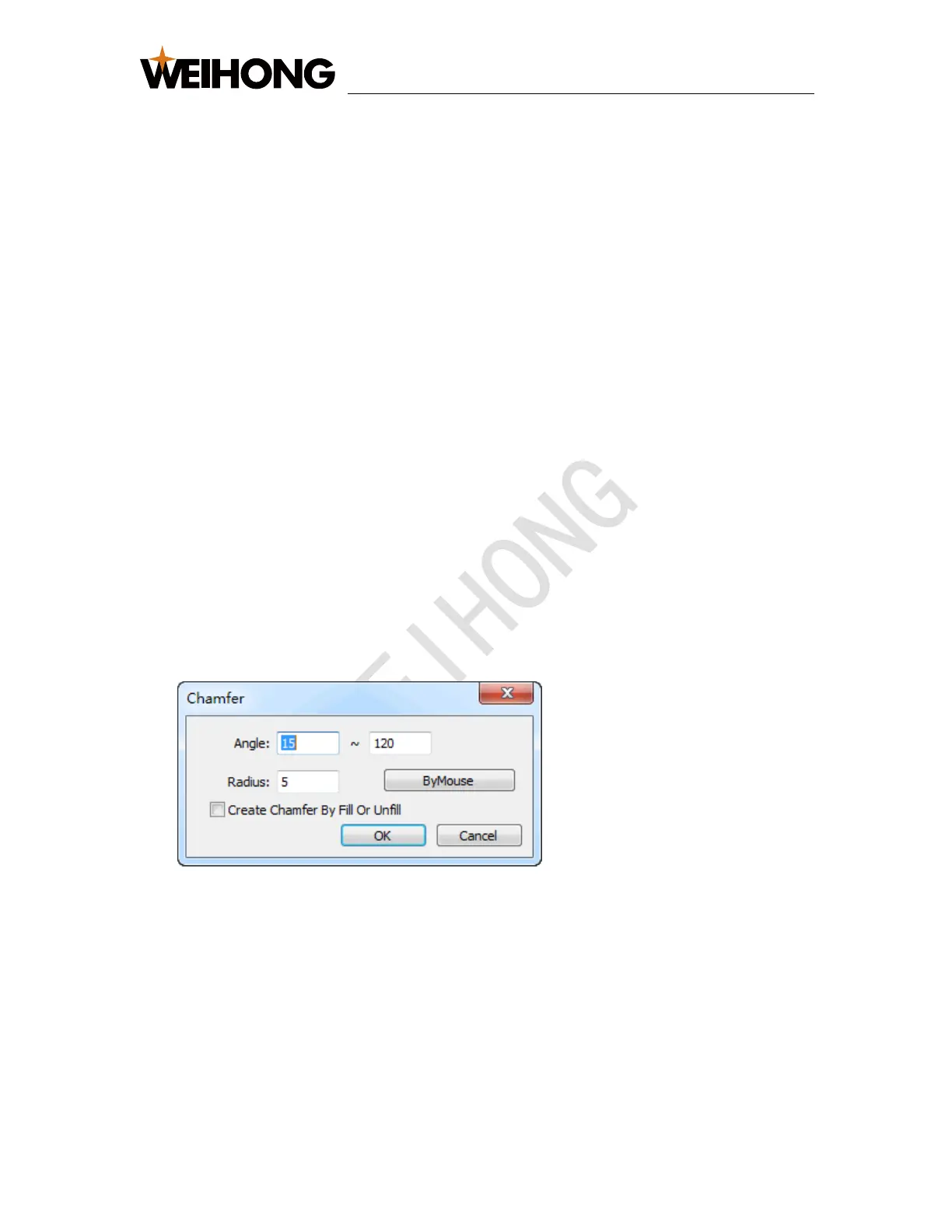

Chamfer dialog box pops up:
3. Set the range of the angle and the radius.
4. Optional: To automatically add chamfer according to the attribute of fill/unfill,
check Create Chamfer By Fill Or Unfill.
It is only applicable to closed objects.
