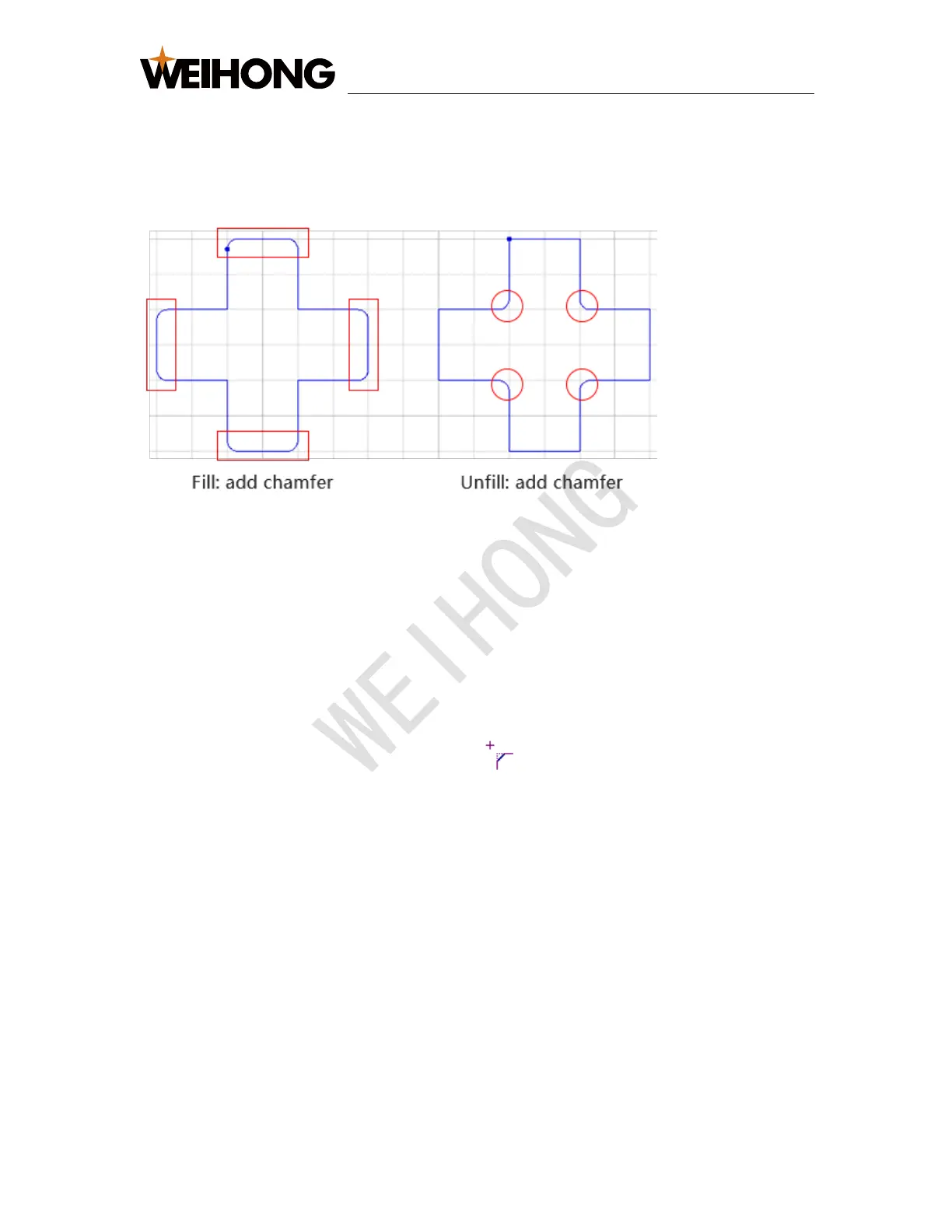

Example
Set the angle between 45° and 90° and check Create Chamfer By Fill Or Unfill.
The system automatically adds chamfer as follows:
5.10.2 Manually Add Chamfer
To manually add chamfer, do the following:
1. To open Chamfer dialog box, do one of the following:
– In menu bar, click Object → Special Technics → Chamfer.
– In drawing window, right click and select Chamfer.
2. Set the range of the radius, and select whether to check Create Chamfer By Fill
Or Unfill.
3. Click By Mouse. The cursor turns into .
4. Move the mouse to the target position and left click to select an adding position.
If you need to exit adding chamfer, right click the mouse.
