上海维宏电子科技股份有限公司
SHANGHAI WEIHONG ELECTRONIC TECHNOLOGY CO., LTD.
79 / 131

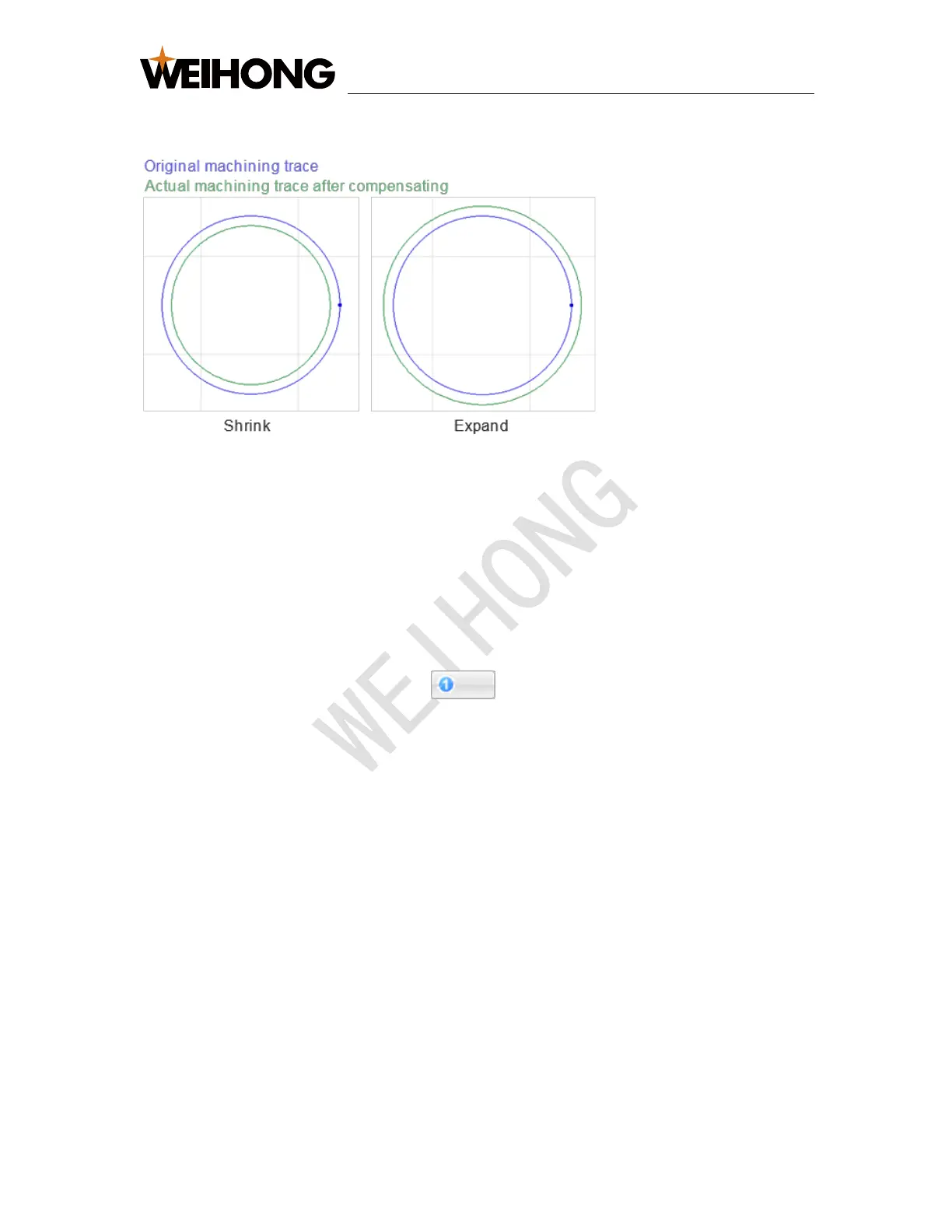

Result of kerf compensation shows as follows:
5.6 Execute Instant Setting
This operation is used to set fill/unfill, lead line, machining direction, machining
order and kerf compensation with one click, so as to improve machining efficiency.
To execute instant setting, do the following:
1. Select the target objects.
2. To open Instant Setting dialog box, do one of the following:
– In drawing toolbar, click .
– In menu bar, click Object → Instant Setting.
– In drawing window, right click and select Instant Setting.
