Maintenance
2124−1/A1
Winterthur Gas & Diesel Ltd.
1/ 2
Measure the Cylinder Liner
Tools:
1 Gauge 94225 1 Ladder
1 Tool cylinder liner measuring 94226
WARNING
Danger: Gas Hazard.
Poisonous gas can stay in
the cylinder liner. There is
a risk of suffocation. You
must make sure that
poisonous gas is removed
before you go into the
cylinder liner. You must put
on a harness attached to a
safety person before you
do work in cylinders where
gas can stay.
WARNING
Injury Hazard: Before you
operate the turning gear,
make sure that no
personnel are near the
flywheel, or in the engine.
CAUTION
Injury Hazard: Hot parts
can cause injury to
personnel. Be careful when
you do work in areas
where there are hot parts.
Note: Measure the the cylinder liner
before you remove a piston.
1) Remove the cylinder cover, refer to
2708−1.
2) Operate the turning gear to move the
piston to BDC.
3) Put on a harness that is attached to a
safety person. If necessary, the safety
person can pull you out of the cylinder
liner if there is an emergency.
4) Lock the lever of the cooling water
valve in the closed position. This
makes sure that no cooling water can
go into the cylinder liner.
5) Clean the area (1, Fig. 1) above the
running surface (2).
6) Remove the bottom part of the
gauge (94225).

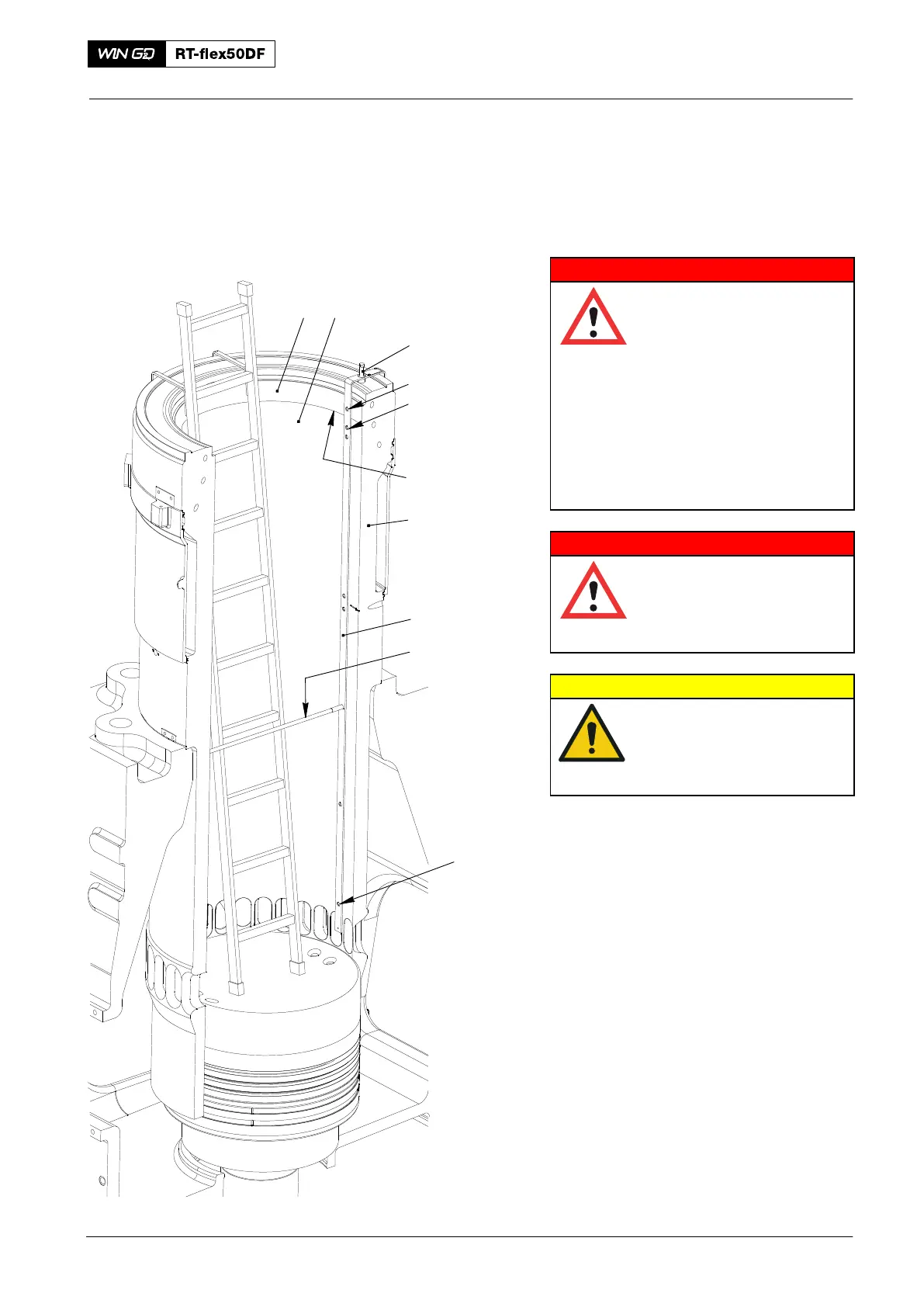

Cylinder Liner
2016
Fig. 1
3
94101
Setting Screw
94225
RIDGE OF
MATERIAL
A
1
2
B
F
Note: Some parts
can look different
016.682/08
