2. Removal
2.1 Preparation
1) Read and obey the data given in
0012-1, General Guidelines for Lifting
Tools.
2) Stop the engine.
3) Set to off the power supply.
4) Disconnect the electrical connection
from the electric motor (2, Fig. 2).
2.2 Removal
WARNING
Injury Hazard: The weight
of the support (94658) is
approximately 62 kg. The
weight of the spur-geared
chain block (94018-001) is
approximately 23 kg. Use
approved equipment and /
or sufficient personnel for
lifting, movement and
installation.
Note: The procedure that follows is for
each of the two electric motors.

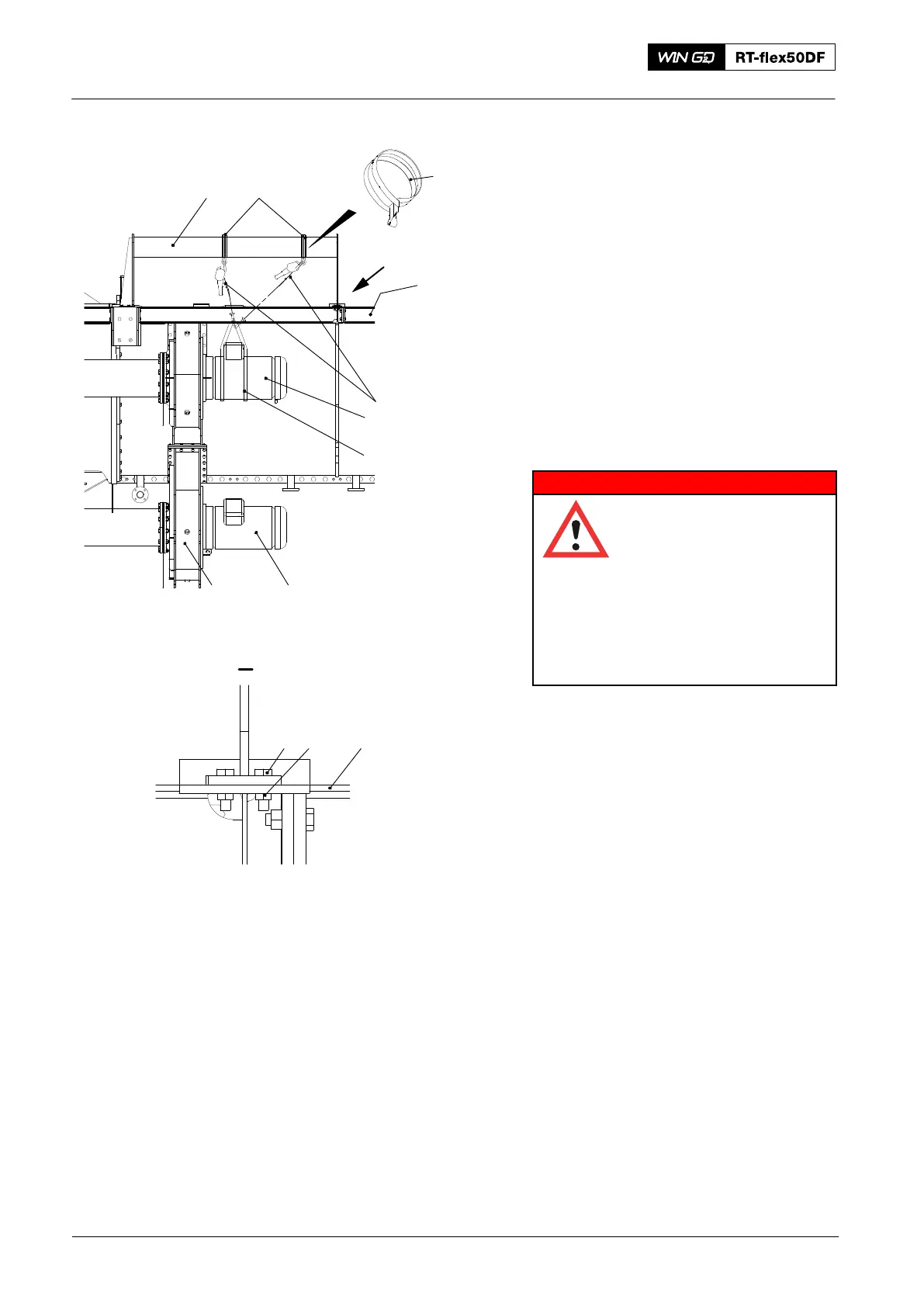

1) Attach the two slings (94657) to the
pipe of the support (94658).
2) Operate the engine room crane to put
the support (94658) on the beam (1) as
shown.
3) Attach the support (94658) to the beam
(1) with the bolts (4) and nuts (5).
4) Attach two slings (94657) to the electric
motor (2).
5) Attach the two manual
ratchets (94016−007) to the two
slings (94657) on the support (94658).
6) Attach the two manual
ratchets (94016−007) to the two
slings (94657)on the electric motor (2).
7) Operate the two manual
ratchets (94016−007) to apply sufficient
tension to the slings (94657) to hold the
mass of the electric motor (2).
8) Remove the screws that attach the
electric motor (2) to the casing (3).
2016
Auxiliary Blower: Maintenance
94657
94657
94658
I
1
WCH03034
94016−007
94657
2
2
3
I
45 1
Fig. 2
