WinGD RT-flex50DF - Starting Air Valve: Removal, Disassemble, Grind, Assemble, Installation

Maintenance2728−1/A1
Winterthur Gas & Diesel Ltd.
2/ 6
3. Removal

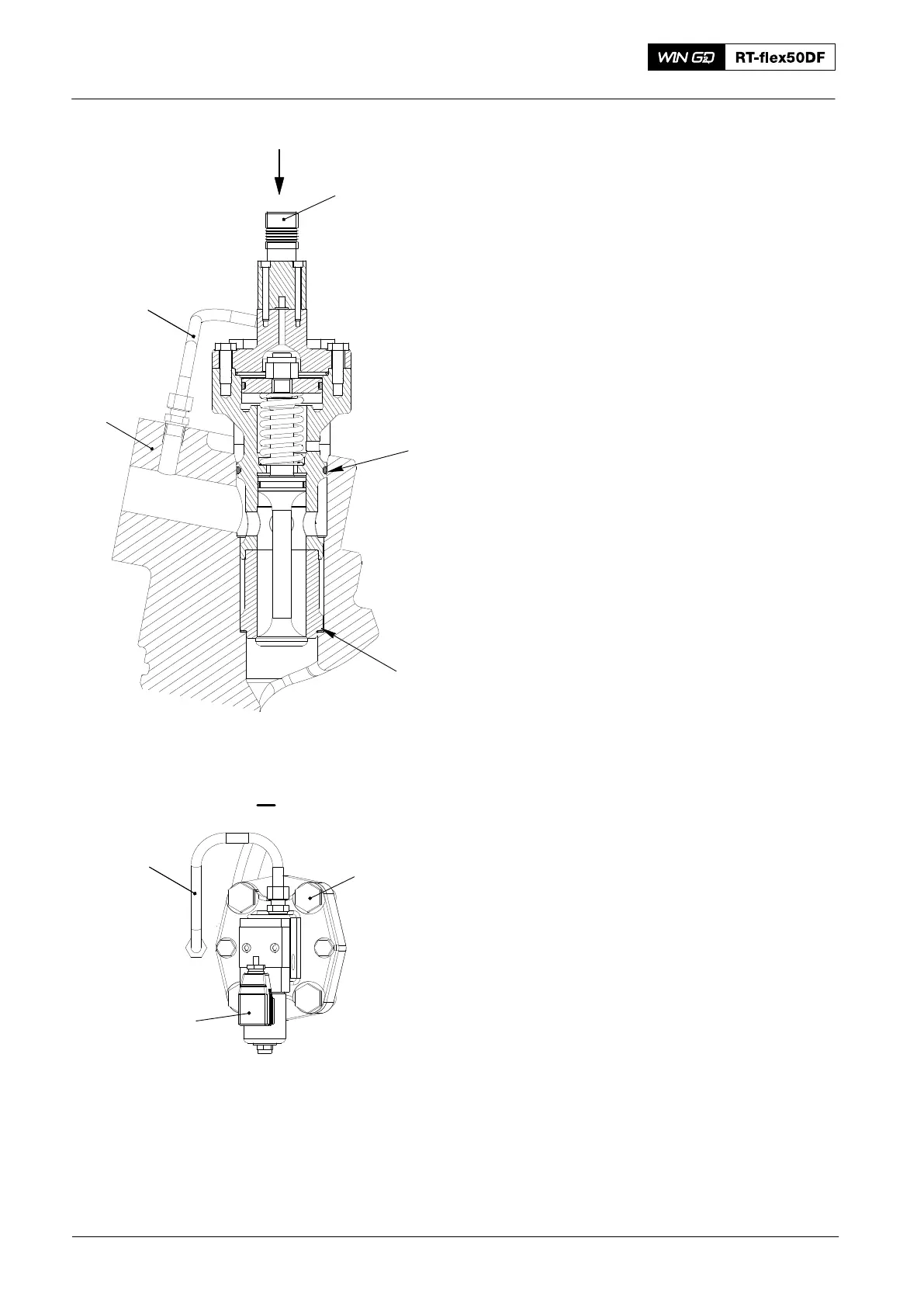

1) Remove the control air pipe (5, Fig. 1)
from the starting air valve.
2) Disconnect the electrical connection
from the 3/2-way solenoid valve (1).
3) Remove the four screws (6).
4) Carefully remove the starting air valve
from the cylinder cover (4).
5) Remove and discard the gasket (3).
6) Put applicable protection over the
opening in the cylinder cover (4).
2016
Starting Air Valve: Removal, Disassemble, Grinding, Assemble, Installation
1
3
I
5
WCH03192
4
2
I
5
6
1
Fig. 1
