Maintenance2751−2/A1
Winterthur Gas & Diesel Ltd.
6/ 8

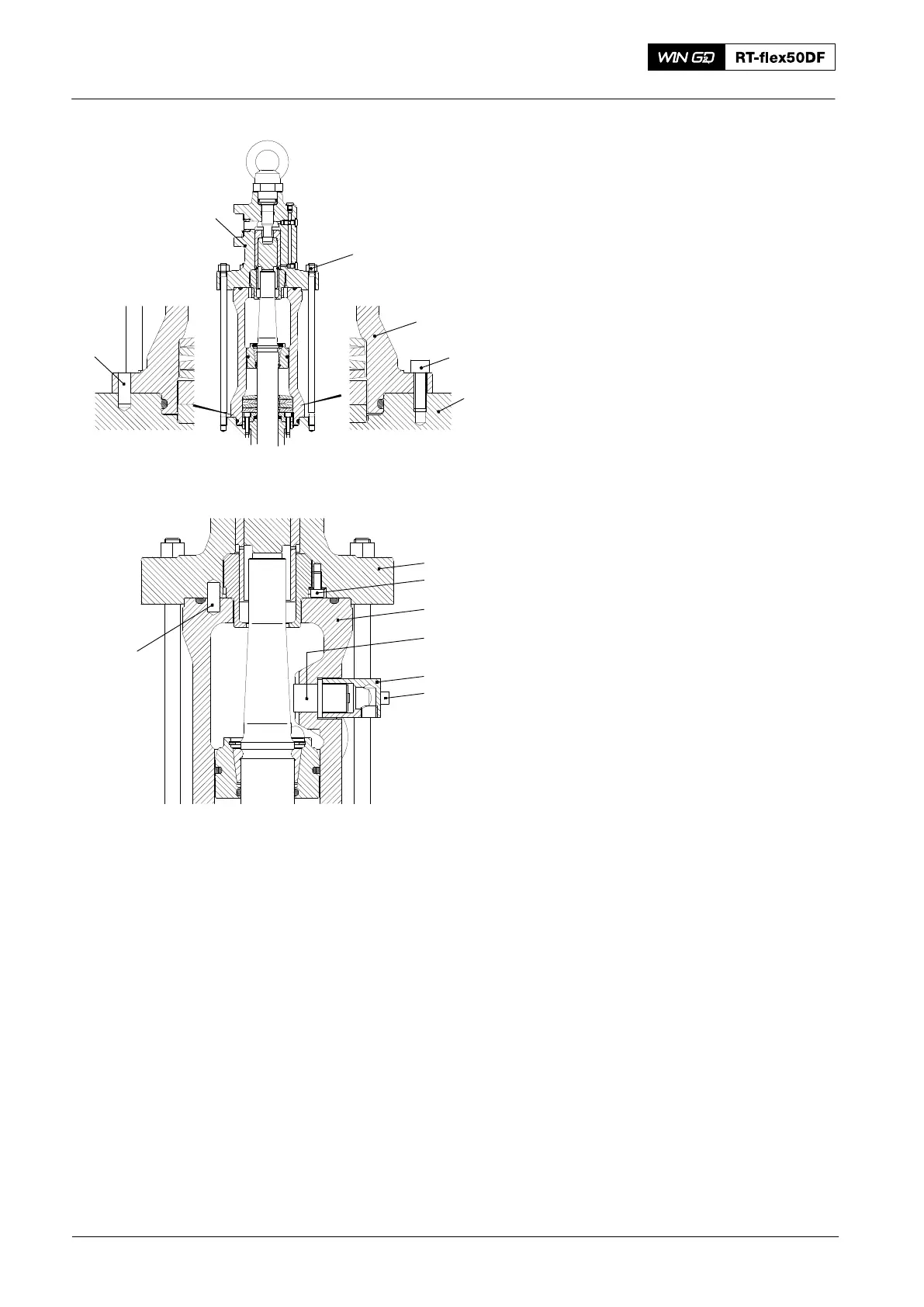

3.3 Valve Drive − Assemble
1) Attach the lifting equipment to the
housing (2, Fig. 8).
2) Lift, then lower the housing (2) on to
the valve cage (4).
3) Attach the housing (2) to the valve
cage (4) with the two Allen screws (3).
4) Put the top housing (6) in position on
the housing (2). Make sure that the
spring dowel pin (5) engages with the
hole in the valve cage (4).
5) Put oil on the six nuts (1).
6) Put the six nuts (1) on the elastic bolts.
7) Torque symmetrically the six nuts (1) to
125 Nm.
3.4 Valve Stroke Sensor −
Install
1) Clean the items that follow:
D Valve stroke sensor (10)
D Transmitter housing (11)
D The bore and collar in the
housing (9).
2) Put the valve stroke sensor (10) and
the transmitter housing (11) into the
bore.
3) Attach the transmitter housing (11) with
the two screws (12).
2016
Exhaust Valve: Disassemble and Assemble
WCH02863
5
2
Turned
through 18°
WCH02863
Turned
through 30°
Fig. 8
3
4
1
5
8
7
12
11
10
9
6
