WinGD RT-flex50DF - 6708−1;A1

Maintenance
6708−1/A1
Winterthur Gas & Diesel Ltd.
1/ 10
Removal and Installation
Tools:
1 Manual ratchet (WLL 800 kg) 94016−001 (H3) 1 Lifting plate 94667A
2 Manual ratchet (WLL 250 kg) 94016−005 (H1, H2) 1 Support 94667B
2 Shackles (WLL 1000 kg) 94018A (S1, S2) 1 Lifting lug 94667C
1 Lifting plate 94667 1 Angle support 94667D
1. Preparation 1.......................................................
2. Removal 2.........................................................
3. Installation 5.......................................................
4. Completion 10.......................................................
5. Condensate Drain 10.................................................
1. Preparation
CAUTION
Injury Hazard: The cover of
the water separator weighs
approximately 53 kg. Use
applicable equipment to
install the cover.
1) Read and obey the data in 0012−1
General Guidelines for Lifting Tools.
2) Remove the applicable supports and
bottom plates for access.
3) Remove the cover (1, Fig. 1).
4) Open the inspection cover (3) to get
access to the water separator.
5) Lock the inspection cover (3) in the
open position with the pin (2).
2016
Water Separator
WCH00709

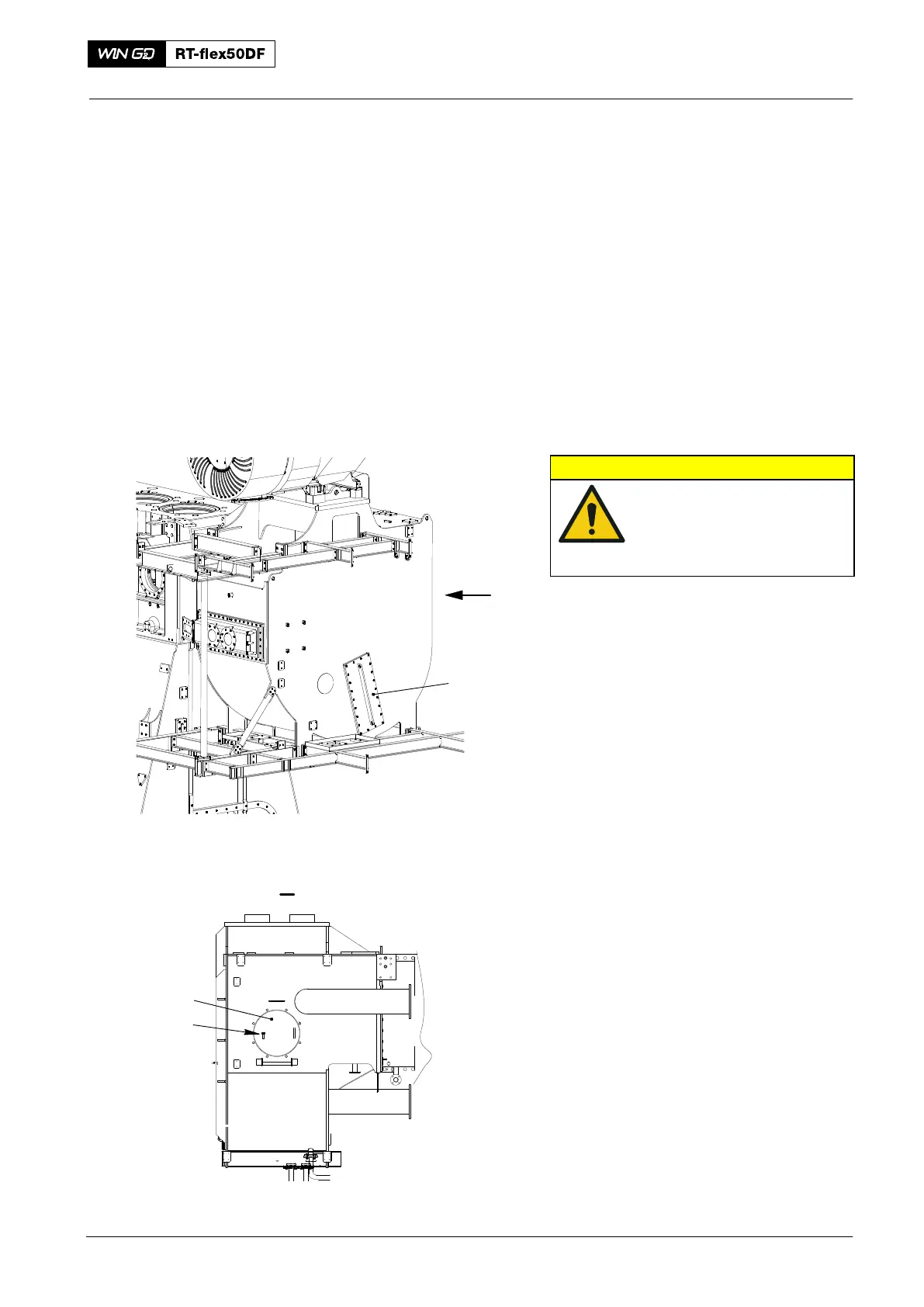

Fig. 1
1
x
WCH03010
3
I
I
2
