WinGD RT-flex50DF - Fuel Pressure Control Valve: Removal, Check, Installation

Maintenance5562−1/A1
Winterthur Gas & Diesel Ltd.
2/ 5
3. Removal
1) Make sure that the fuel rail (4, Fig. 1)
has no pressure.
2) Disconnect the electrical connection
from the solenoid valve (2).
3) Remove the fuel return pipe (5) from
the PCV (1).
4) Remove the four screws (8).
5) Remove the PCV (1) from the valve
block (3).
6) Do a check of the lip seal (9). Replace
the lip seal if necessary.
2016
Fuel Pressure Control Valve: Removal, Check, Installation
WCH02900
DRIVING END
WCH02366

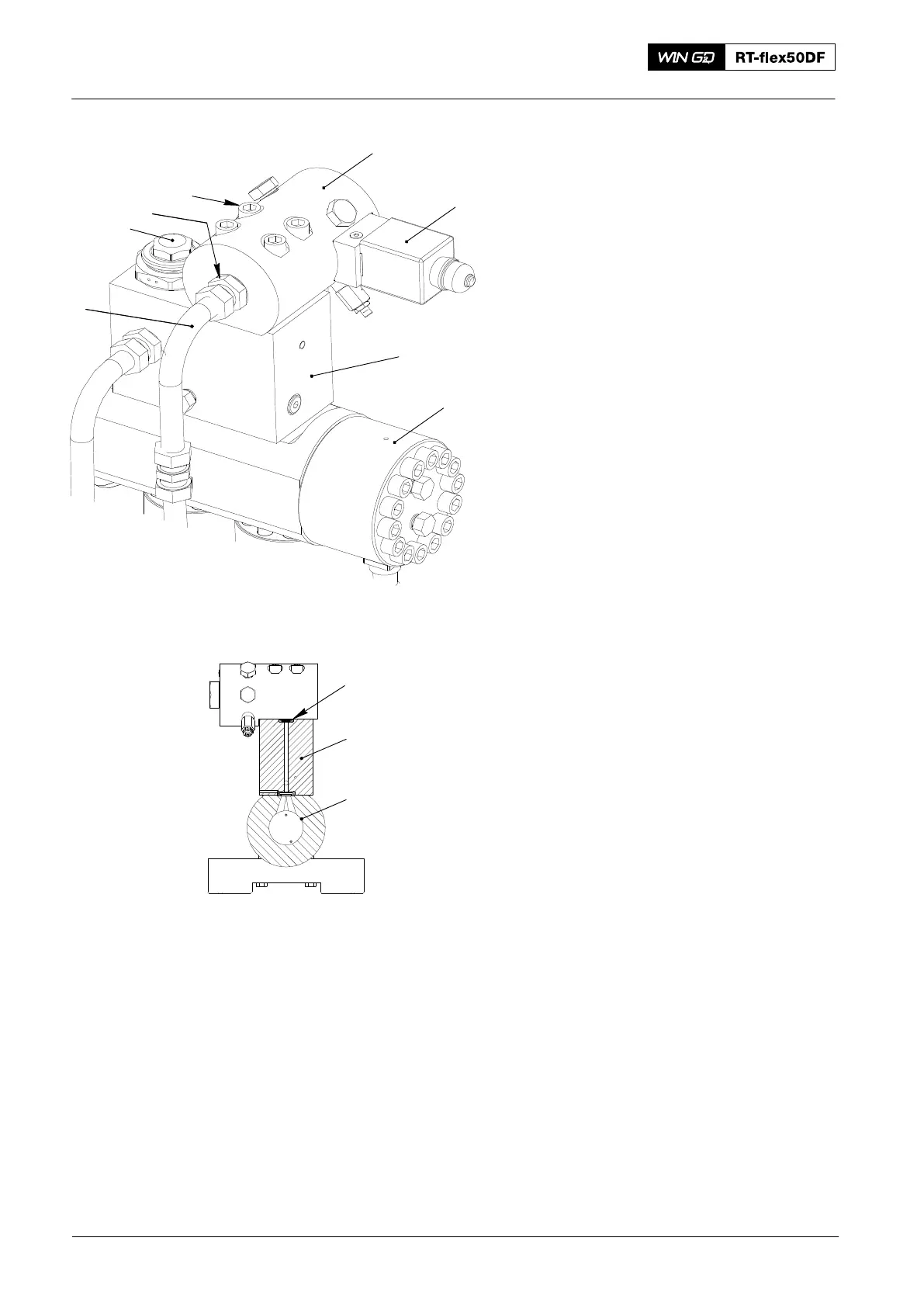

Fig. 1
5
8
7
6
4
2
1
3
9
3
4
