2. Disassemble
WARNING
Danger: Do not weld or
grind materials in the area.
The sparks from welding
equipment and grinding
tools can cause a fire.
1) Make sure that the work area is clean
and has no dust.

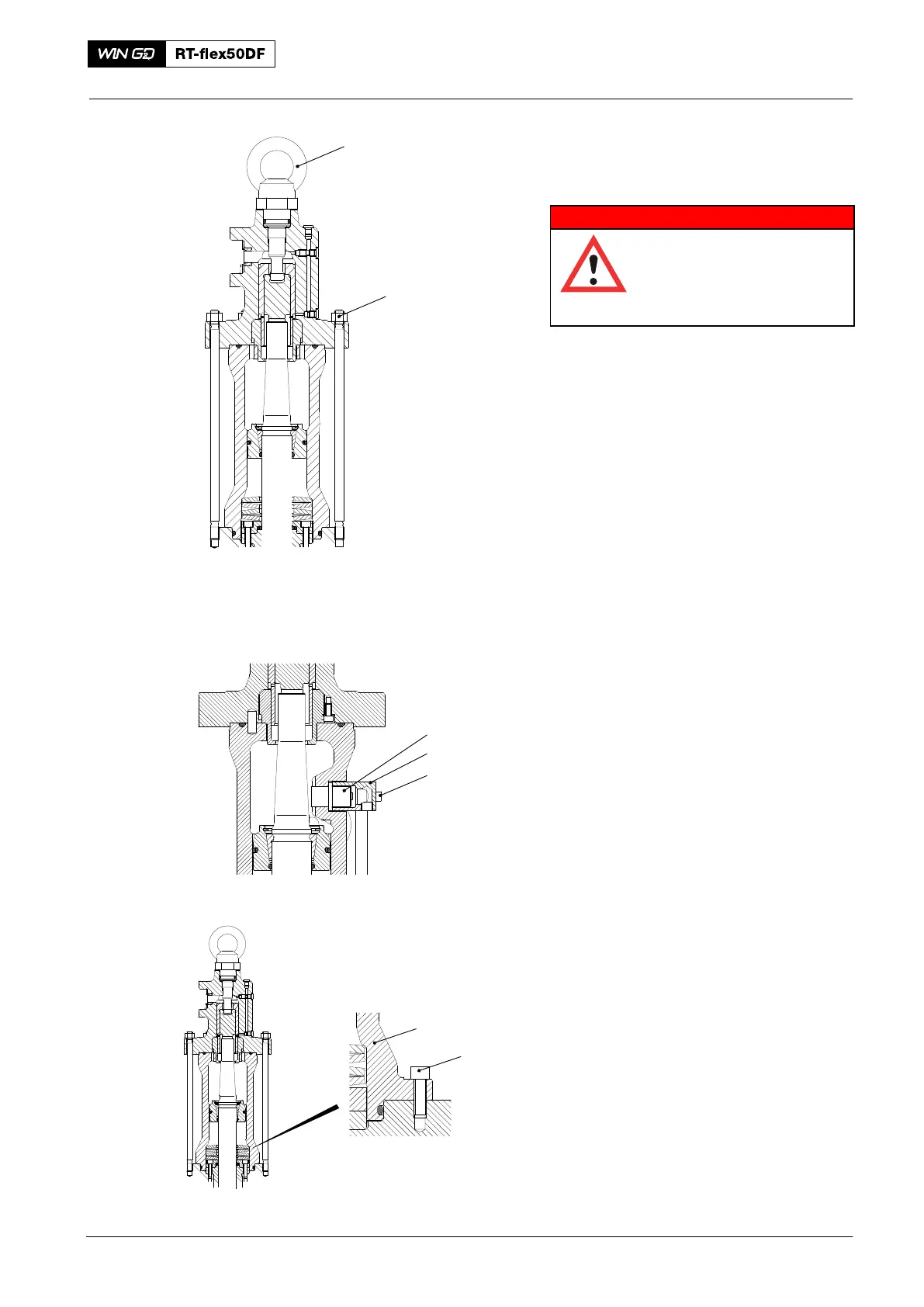

2.1 Valve Drive − Disassemble
1) Make sure that the exhaust valve is in a
vertical position on wooden underlay.
2) Remove the six nuts (2, Fig. 2).
3) Attach the applicable equipment to the
eye bolt (1).
4) Remove the valve drive.
5) Remove the two screws (3, Fig. 3).
6) Remove the transmitter housing (2).
7) Remove the valve stroke sensor (1).
8) Remove the two screws (2, Fig. 4).
9) Remove the housing (1).
2016
2
Fig. 2
1
Exhaust Valve: Disassemble and Assemble
Fig. 3
3
2
1
2
1
Turned through 90°
Fig. 4
