2. Fuel Pump − Removal
1) Remove the connecting element (3,
Fig. 1) between the regulating rack (4)
and the actuator (2).
2) Operate the turning gear until the cam
base touches the roller (5, Fig. 2).
3) Remove the four screws (1, Fig. 1).
4) Use the two M12 jacking screws to lift
the fuel pump until the pin disengages.
5) Attach the cover (94552, Fig. 2) to the
pump cover (5).
6) Use the applicable lifting equipment to
lift and move the fuel pump.
7) Move the fuel pump to an applicable
work bench.
8) Put the fuel pump on its side on the
wooden surface. Make sure that you do
not cause damage to the toothed rack
(7) or and the roller (6).
9) Remove the lifting equipment from the
fuel pump.
2016
Fuel Pump: Removal, Disassemble, Assemble, Installation

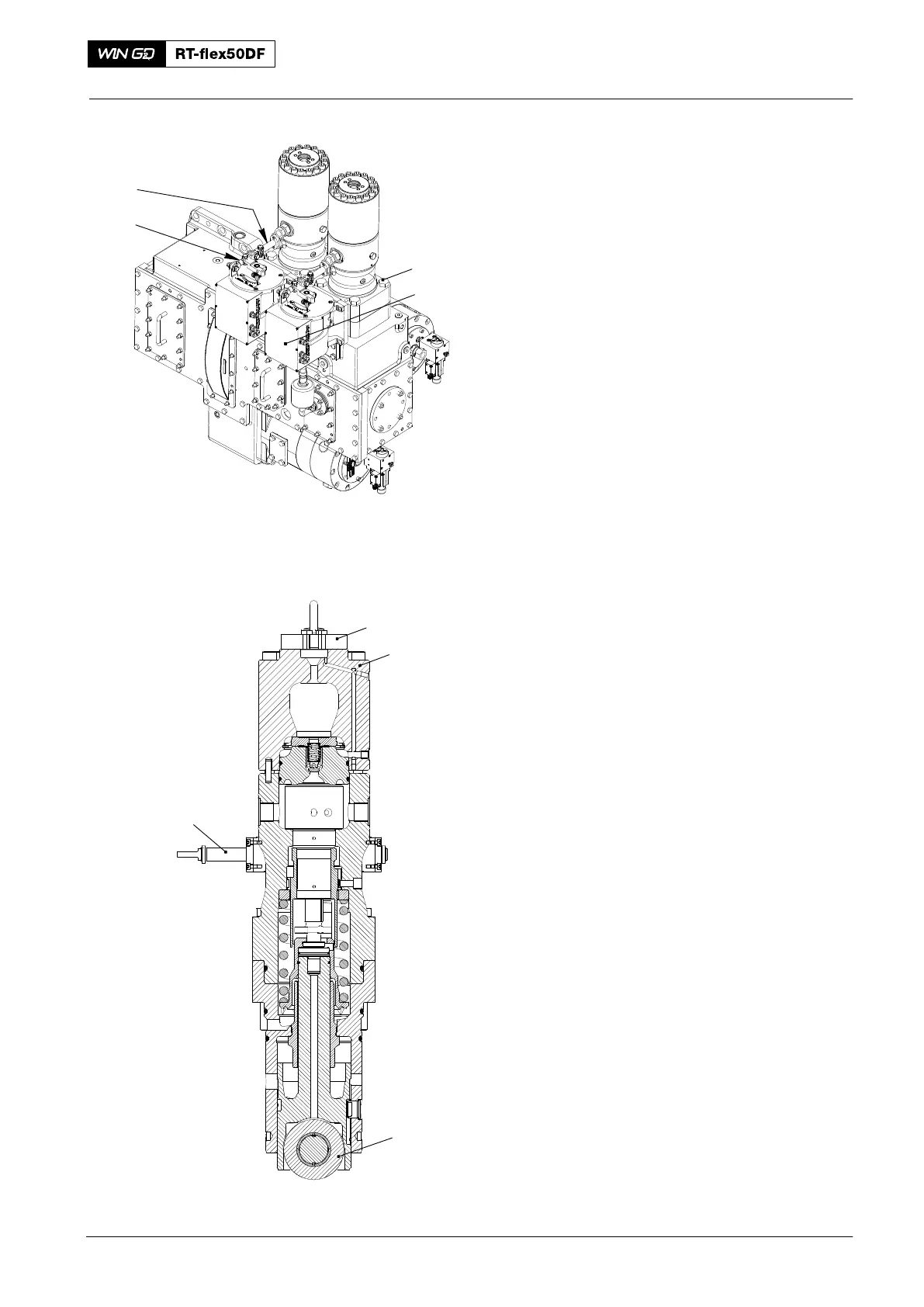

Fig. 1
