WinGD RT-flex50DF - 2708−1;A1; Water Guide Jacket − Installation

Maintenance
2708−1/A1
Winterthur Gas & Diesel Ltd.
3/ 5
4. Water Guide Jacket −
Installation
1) Clean all the sealing faces and O-ring
grooves.
2) Apply oil to the sealing faces of the top
water guide jacket (3, Fig. 2).
3) Apply oil to the new O-rings (6, 7).
4) Put the new O-rings (6) into the
grooves of the transition tubes.
5) Put new O-rings into the grooves in the
cylinder cover (2)
6) Attach the tool (94265) to the special
eye bolts (94265A) on the cylinder
cover (2).
7) Operate the engine room crane to
move the cylinder cover (2) and
exhaust valve into position above the
top water guide jacket (3).
8) Make sure that the holes in the cylinder
liner (2) align with the holes for the
bolts in the top water guide jacket (3).
9) Carefully operate the engine room
crane to lower the cylinder liner (2) on
to the top water guide jacket (3).
10) Attach the cylinder liner (2) to the top
water guide jacket with the screws (4).
2016
Cylinder Cover and Water Guide Jacket − Removal and Installation

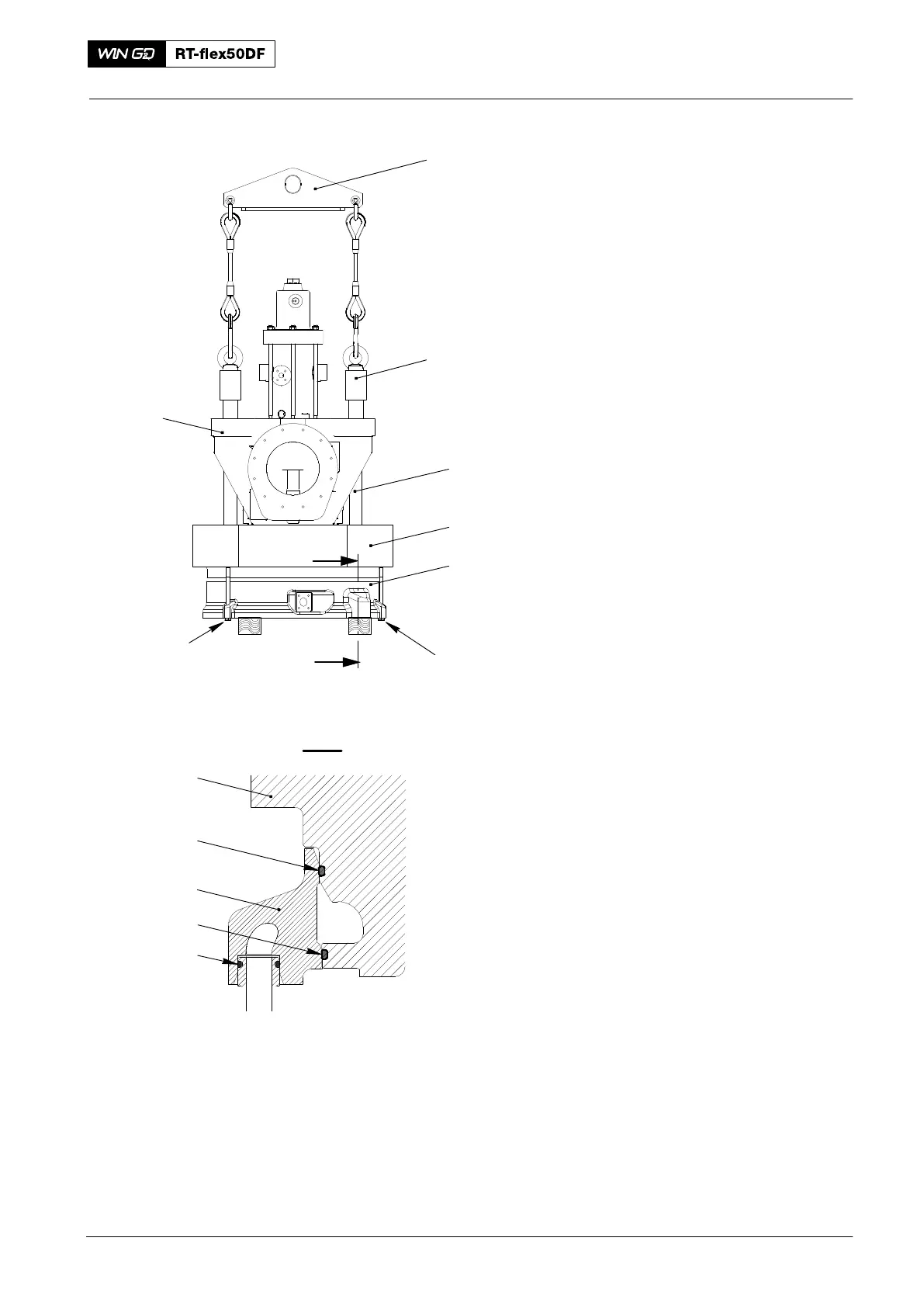

94265
94265A
1
2
3
5
012.895/05
4
4
Fig. 2
2
7
3
7
6
I
I - I
I
