Maintenance
8447−1/A1
Winterthur Gas & Diesel Ltd.
1/ 5
Removal, Grind, Installation
Tools:
1 Grinding tool 94841 Emery cloth As necessary
1 Stencil 94841A 1 Hand drill
1. Preparation
1) Stop the engine, refer to the Operation Manual 0310−01.
2) Make sure that the servo oil service pump is set to off.
3) Put an oil tray under the applicable intermediate piece (3, Fig. 1).
4) Put an oil tray under the connecting blocks of the applicable HP servo oil
pump (2).
5) Remove the stirrup bolts (1) from the applicable HP servo oil pipe.
III
WCH02974
2
1
I
I
II
II
IV
V
For views I − I to V,
see Fig. 2 and Fig. 5
WCH02974
1
3

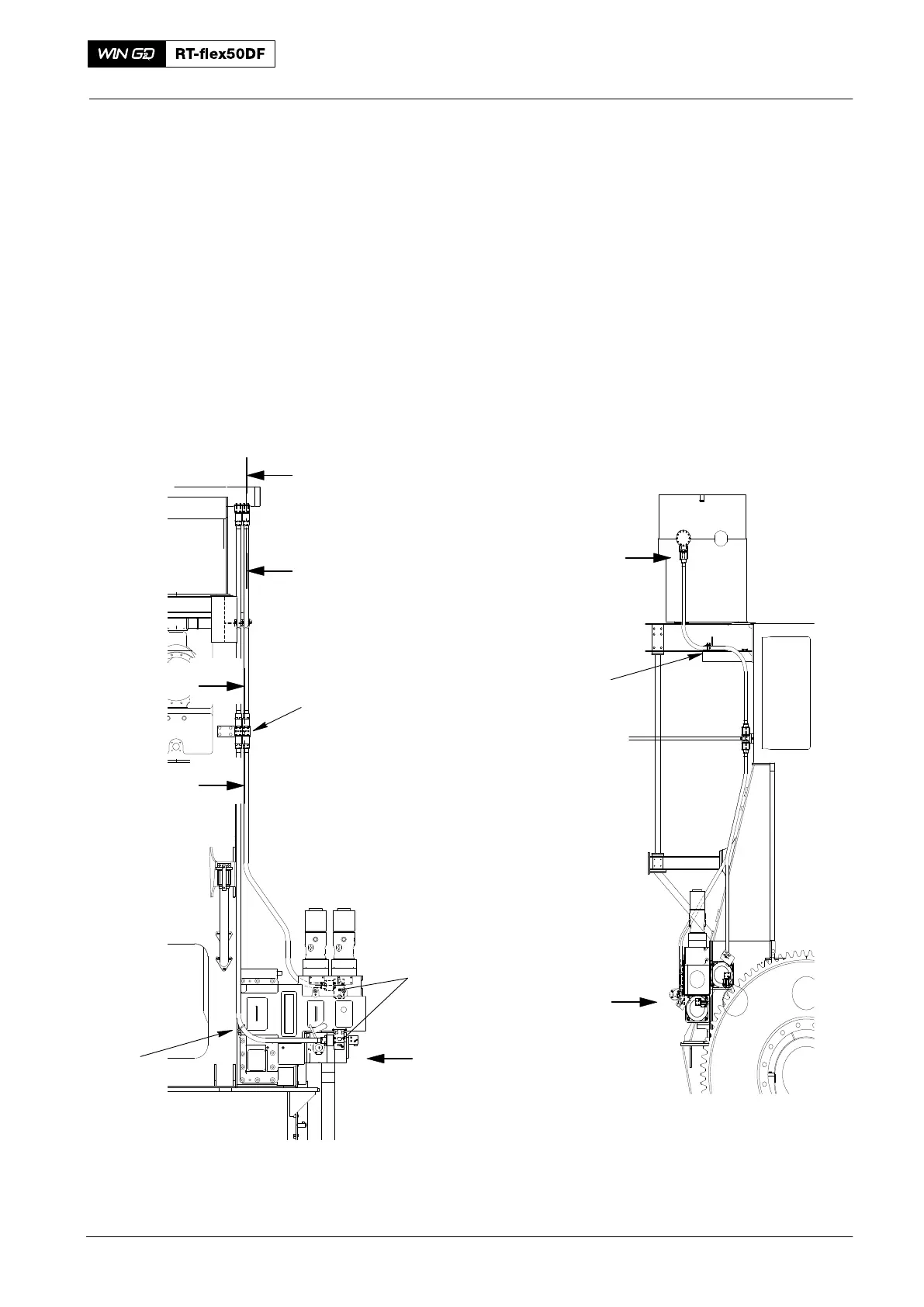

Fig. 1
HP Servo Oil Pipe
2016
