Maintenance
3425−1/A1
Winterthur Gas & Diesel Ltd.
9/ 9
3.5 New Piston Rings − Installation
CAUTION
Damage Hazard: Do not open the piston rings too far. This will
cause damage to the piston rings.
Note: Make sure that the mark TOP, on the piston ring, points up.
Note: For the ring types and their locations, refer to Table 3.
Note: Make sure that you use tool (94338, Fig. 8) to install the piston rings.
1) Measure and record the thickness of the chrome-ceramic layer on each piston
ring. This will help you monitor the rate of wear during operation.
2) Install the bottom piston ring (4) to the piston head.
3) Install the middle piston ring (3) to the piston head.
4) Install the top piston ring (1) to the piston head. Make sure that the ring
clearance (5) is opposite the ring clearance (2) of the middle piston ring (3).
5) Refer to the Operation Manual, 0410−1 for the running-in procedure for new
piston rings.
1
4
3
5
2
WCH02682
WCH02956

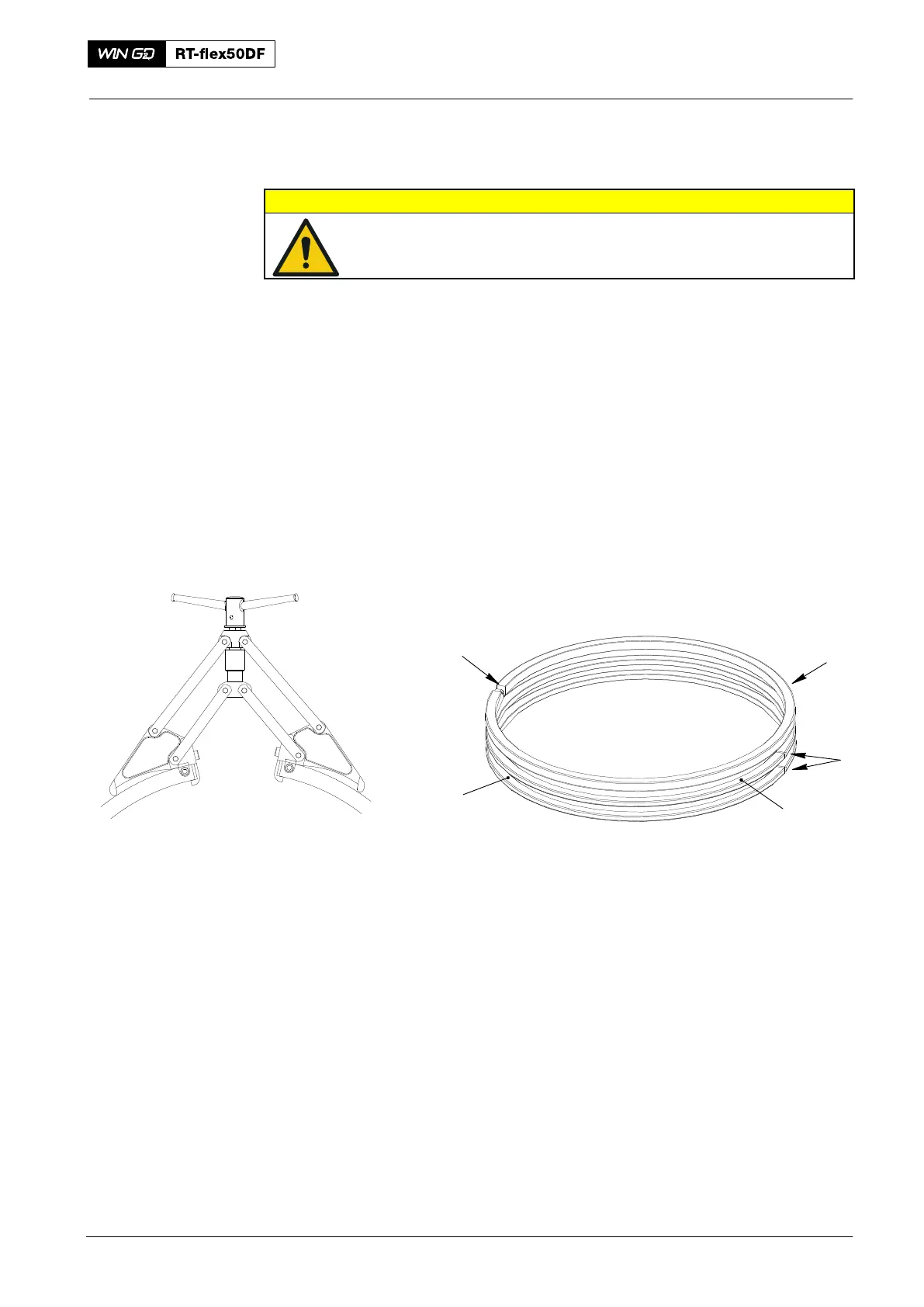

Fig. 8
4. Piston Rings − Storage
Keep the piston rings in their original packages in a dry area. Make sure that the
piston rings are in a horizontal position on a flat surface.
To prevent damage, be careful when you prepare the piston rings for installation and
during movement.
2016
Piston Rings and Grooves − Rate of Wear Three Piston Rings
