WinGD RT-flex50DF - Cylinder Cover Elastic Studs − Loosen and Apply Tension; 2708−2;A1; Preparation

To Next Page

To Previous Page

Maintenance

2708−2/A1

Winterthur Gas & Diesel Ltd.

1/ 3

Cylinder Cover Elastic Studs − Loosen and Apply Tension

Tools:

1 Hydraulic tensioning device 94215 1 Hydraulic distributor 94934A

includes: 3 HP hoses 94935

8 Pre-tensioning jacks 94215A 1 Hose 94935C

2 Connection pieces with HP hoses 94215B 1 Hydraulic unit 94942

1 Connection block 94934

1. Preparation

1) Read the data in 9403−4 for the configuration of hydraulic pre-tensioning jacks.

2) If the cylinder cover must be replaced, refer to 2751−1.

2. Pre-tensioning Jacks − Attach

1) Clean the threads of the eight elastic

studs (5, Fig. 1) and the area around

the round nuts (4).

Note: You can attach the pre-tensioning

jacks (94215A) with the vent

screws (3) open, or connect the

hose (94935C) to the adaptor (1). If

you connect the hose (94935C) to

the adaptor, put an oil tray in an

applicable position to collect oil.

2) Attach all pre-tensioning jacks on the

elastic studs until there is little or no

clearance at X.

3) Turn back the pre-tensioning jacks to

get the clearance (6).

2016

Cylinder Cover

012.963/05

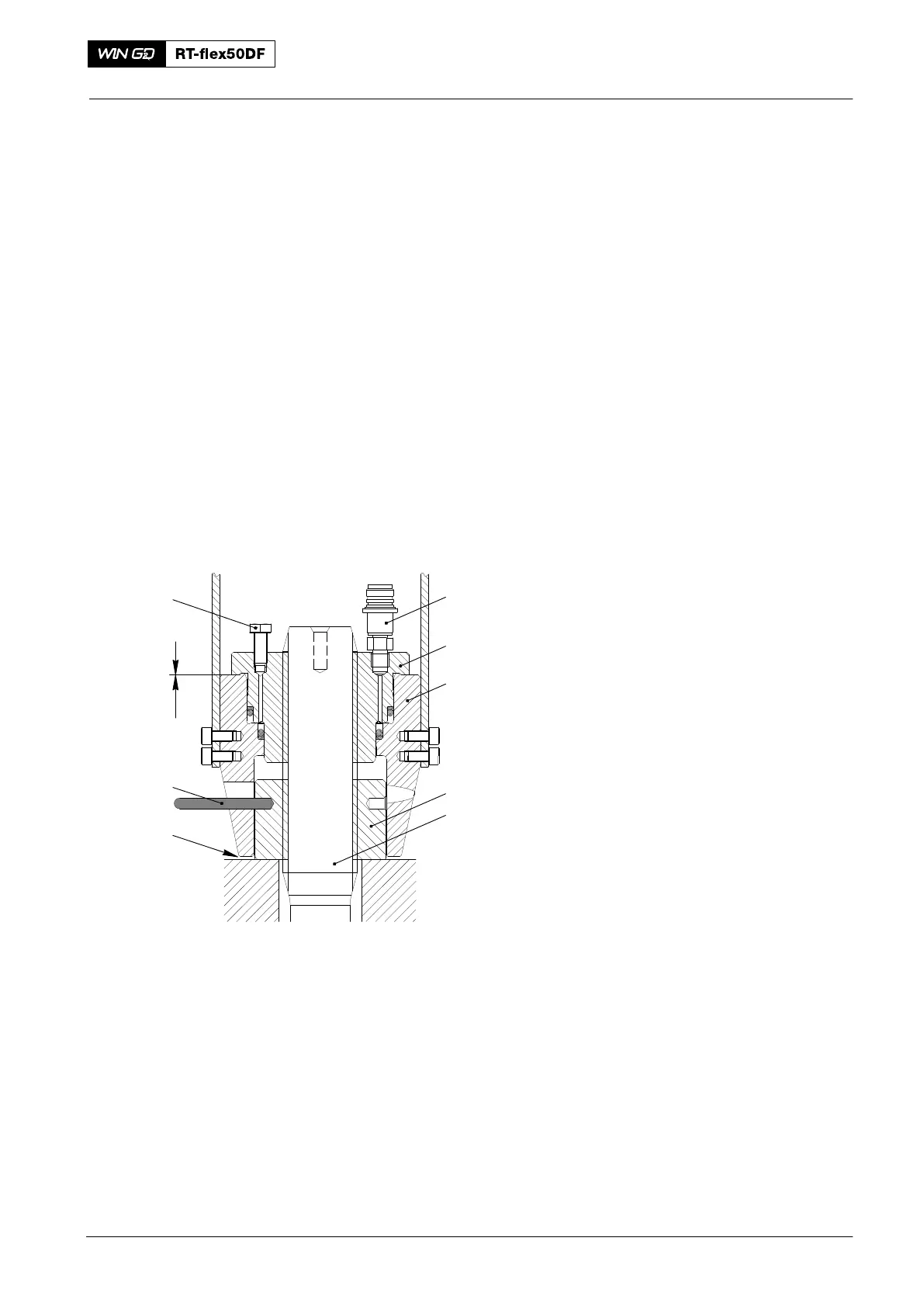

Fig. 1
