WinGD RT-flex50DF - 3303−5;A2

Maintenance
3303−5/A2
Winterthur Gas & Diesel Ltd.
3/ 5

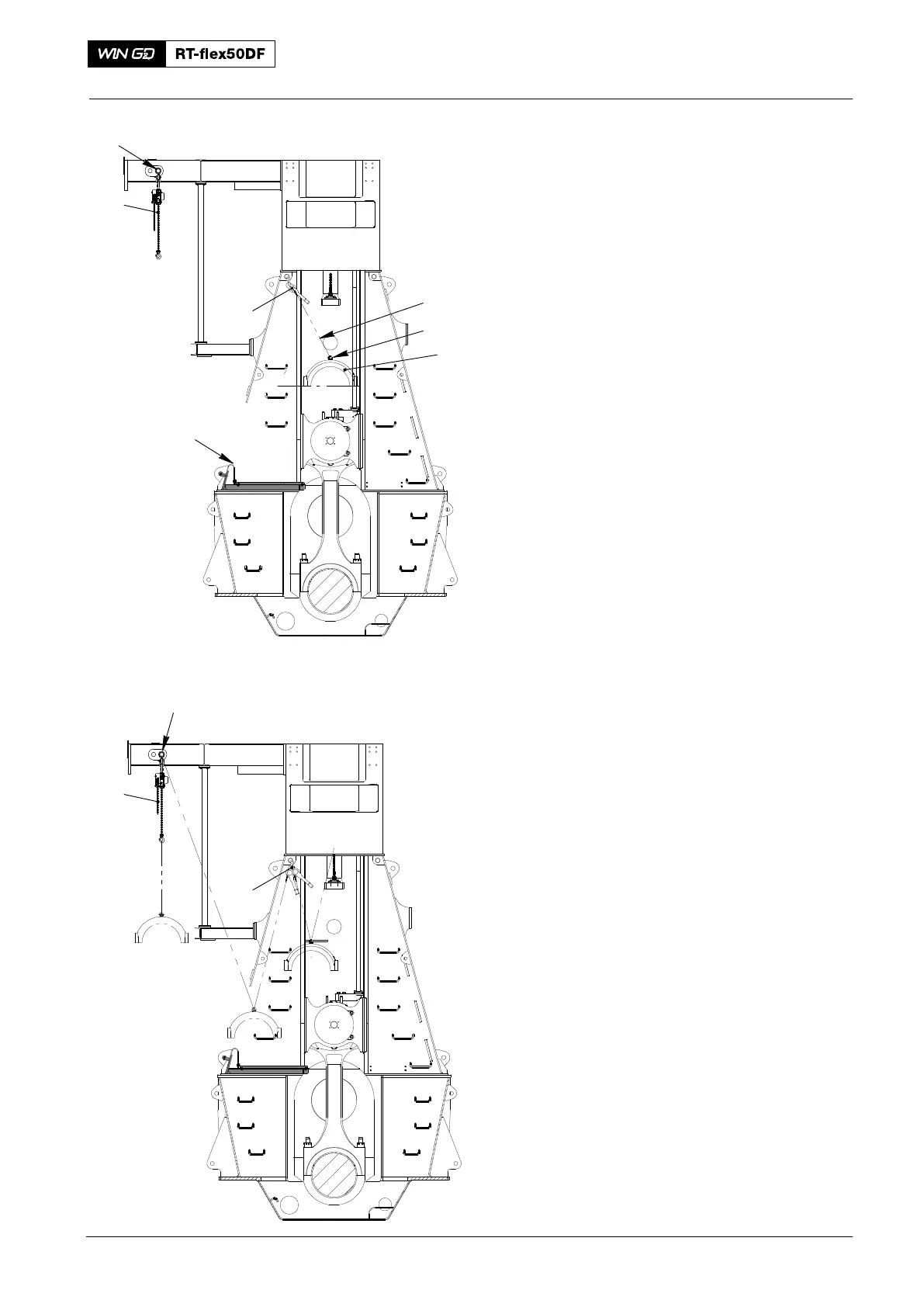

8) Attach the lifting tool (94335, Fig. 4)
between the double-I girders.
9) Attach the work platform (94142), refer
to 3301−1.
10) Attach the manual ratchet (H3) to the
top attachment point in the column.
11) Attach the chain (94666I) to the manual
ratchet (H3) and the eye bolts (EB1,
EB2).
12) Remove the applicable part of the
bottom plate from the middle platform.
13) Operate equally the manual ratchets
(H1, H2 and H3, Fig. 5) to lower the
bearing cover (1) until the chains of the
manual ratchet (H3) is vertical.
14) Remove the manual ratchets (H1, H2)
from the eye bolts (EB1, EB2).
15) Attach the chain block (H5) to the chain
(94666I).
16) Operate the chain block (H4) and the
manual ratchets (H3) to move the
bearing cover out of the column.
17) Lower the bearing cover on to an
applicable surface.
Top End Bearing − Bearing Cover Removal and Installation
2016
013.039/05a
H3
1
EB1, EB2
c
H4
94335
Fig. 4
Fig. 5
94335
H4
H3
FUEL SIDEFUEL SIDE
94142
94666I
