Maintenance
3301−1/A1
Winterthur Gas & Diesel Ltd.
1/ 1
Work Platform
Tools:
1 Platform 94142
2 Nut 94142A
1 Support 94143
1. General
WARNING
Injury and Damage Hazard: Do not turn the crankshaft when the
platforms and/or supports are installed. This can cause injury to
personnel and damage to equipment.

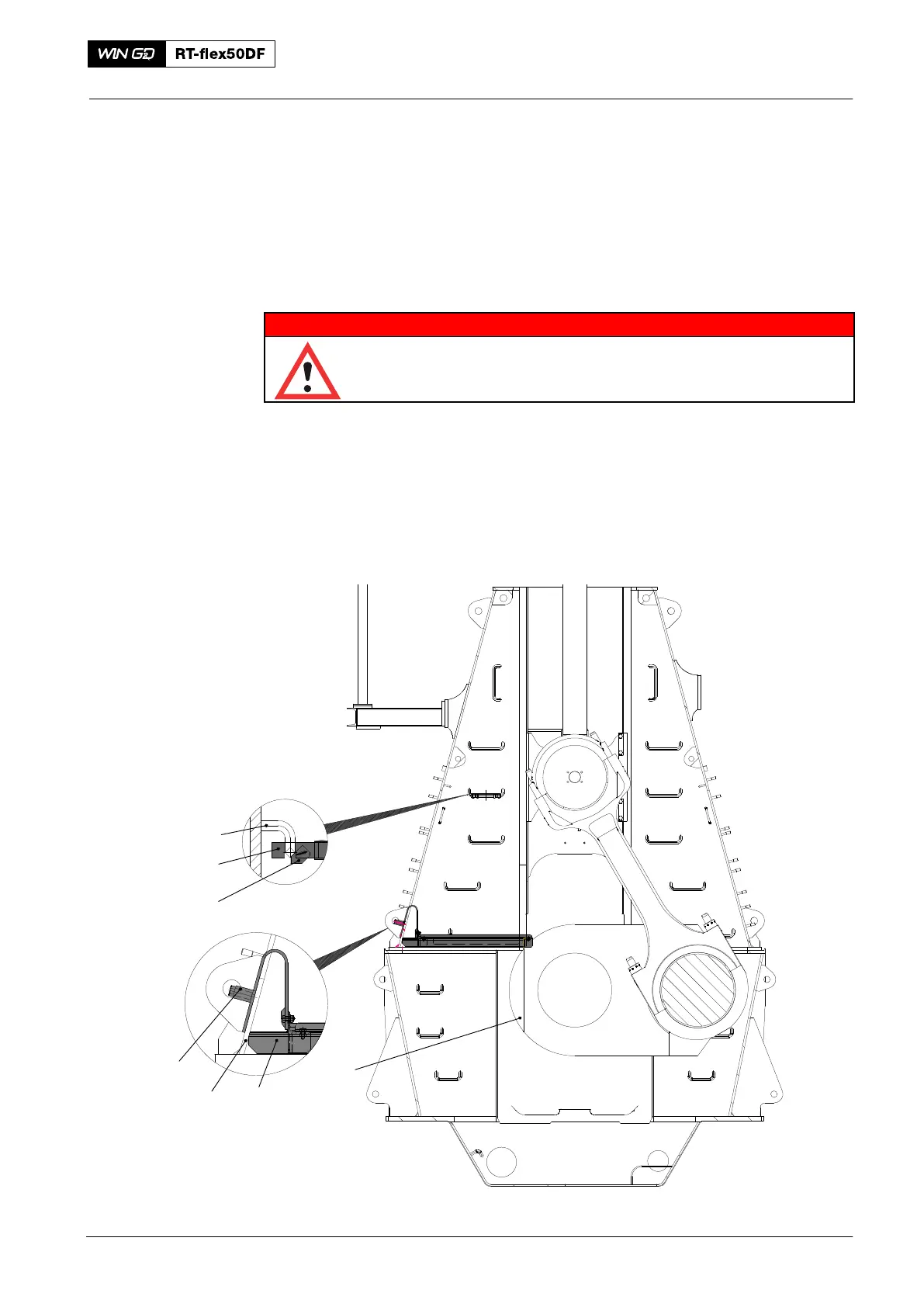

You use the platform (94142, Fig. 1) and support (94143) when you do work in the
crank area and between the columns. The platform and support help to prevent
accidents in these areas.
You install the platform (942142) with the nuts (94142A) to the longitudinal beam (2)
and the crank (1).
You install the support (94143) between the columns at the applicable height, on the
steps (4). You put the straps (3) around the steps to hold the support in position.
012.897/05
Fig. 1
94143
94142
94142A
2
1
4
3
2016
Crankcase
