WinGD RT-flex50DF - Page 462

Maintenance6708−1/A1
Winterthur Gas & Diesel Ltd.
2/ 10
2. Removal
1) Remove the 18 screws (2, Fig. 2).
2) Remove the 18 intermediate rings (1).

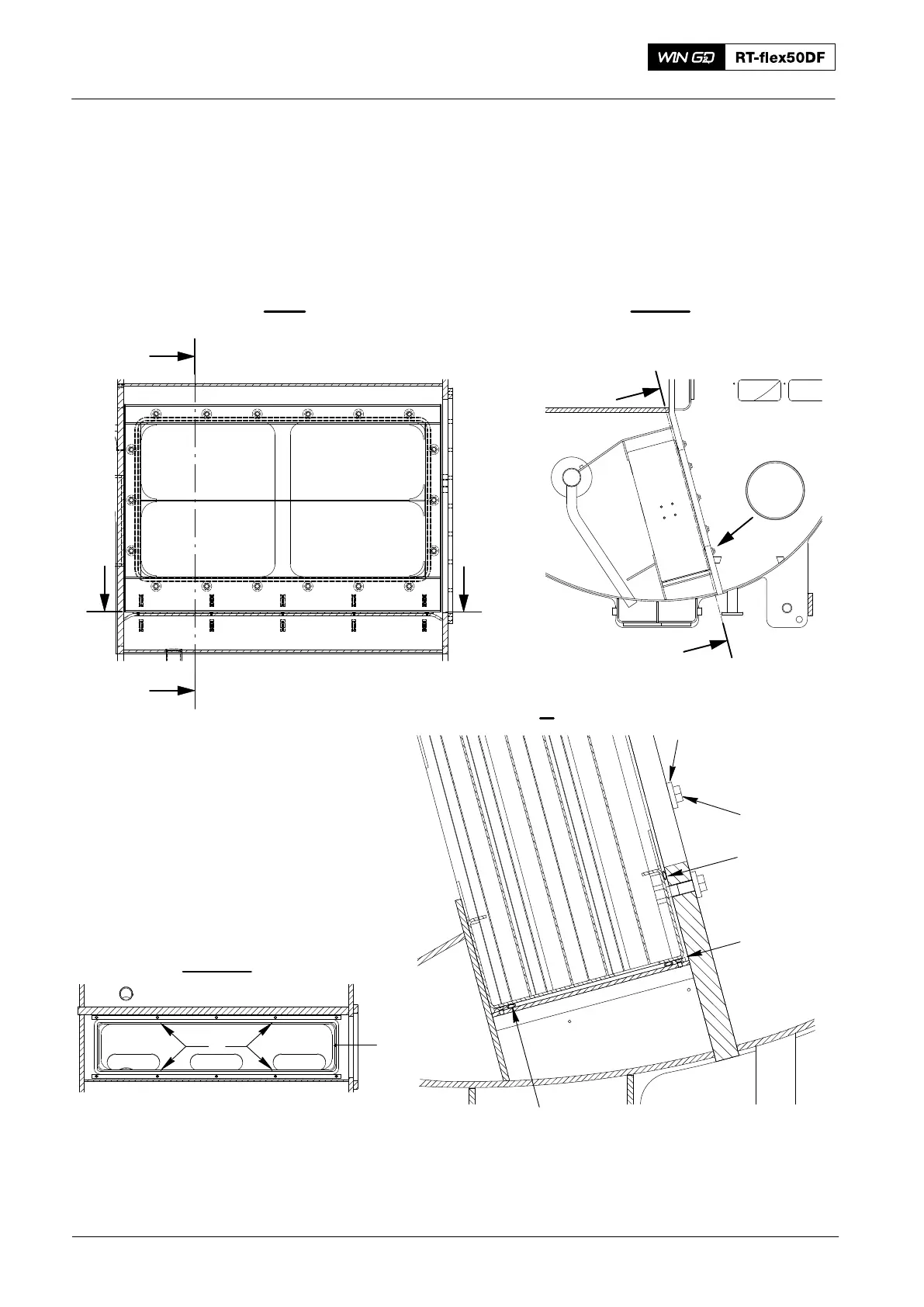

Fig. 2
I - I
II
II
III
III
I
II - II
III - III
I
5
5
4
WCH00709
I
6
I
3
1
2
2016
Water Separator: Removal and Installation
