Maintenance2728−1/A1
Winterthur Gas & Diesel Ltd.
6/ 6
7. Installation
1) Remove the protection from the
cylinder cover (4, Fig. 9).
2) Put a new gasket (3) in the bore of the
cylinder cover (4).
3) Apply a thin layer of oil to the bore of
the cylinder cover (4).
4) Attach the control air pipe (5) to the
bore in the cover (1).
5) Carefully put the starting air valve in the
cylinder cover (4). Make sure that the
control air pipe (5) goes into the bore of
the cylinder cover correctly.
6) Apply Never-Seez NSBT-8 to the
threads of the four screws (2).
7) Put the four screws (2) in position in the
cover (1).
8) Symmetrically torque the four screws
(2) to 80 Nm.
9) Symmetrically tighten the screws (2) to
an angle of 90° .
10) Tighten the connections of the control
air pipe (5).
11) Connect the electrical connection to the
3/2-way solenoid valve (6).
2016
Starting Air Valve: Removal, Disassemble, Grinding, Assemble, Installation
3
I
5
WCH03192
4
1
2
I
2
5
1
6

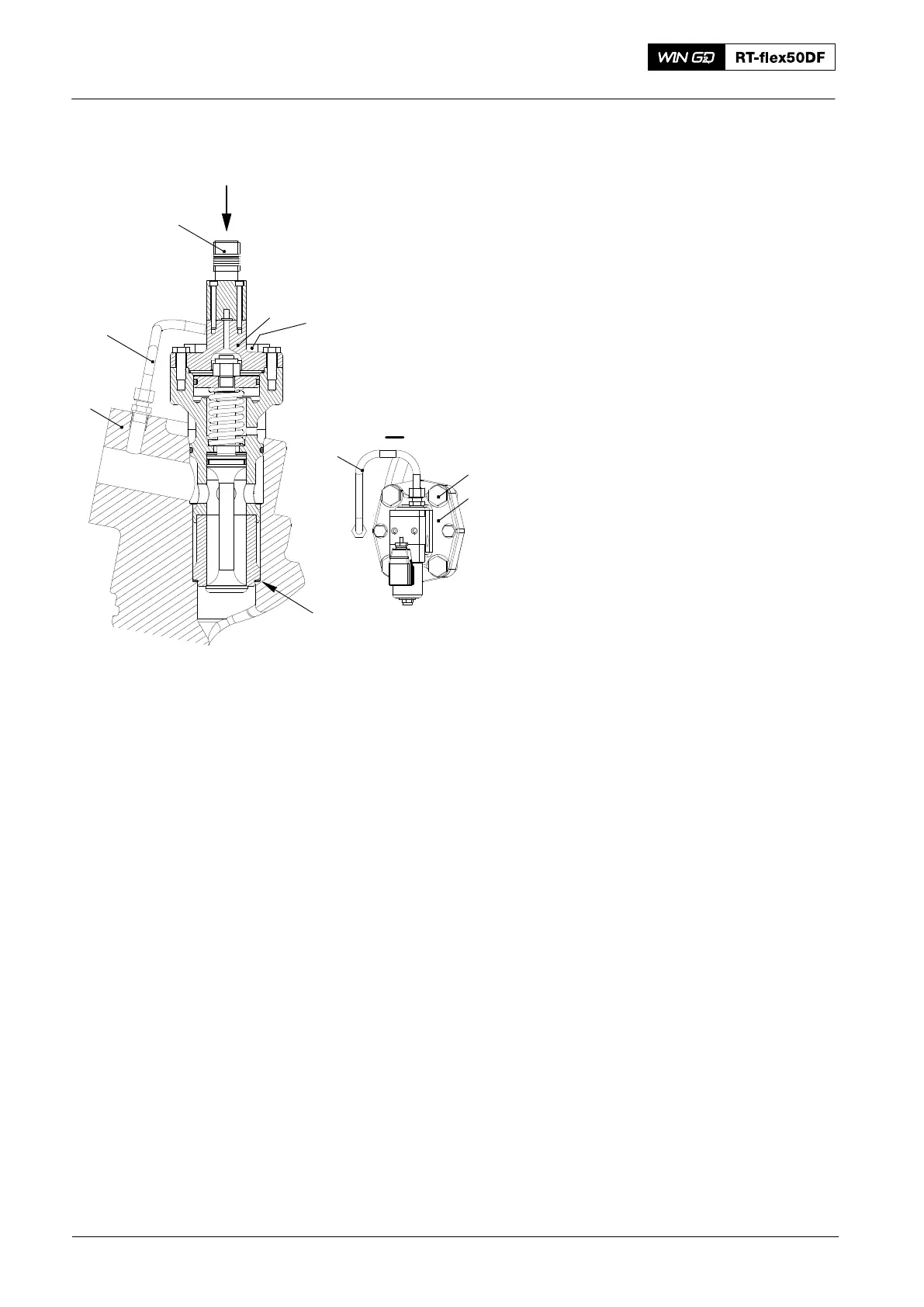

Fig. 9
