Maintenance
5555−2/A1
Winterthur Gas & Diesel Ltd.
5/ 6
I I
III
III
X
I - I
II
II

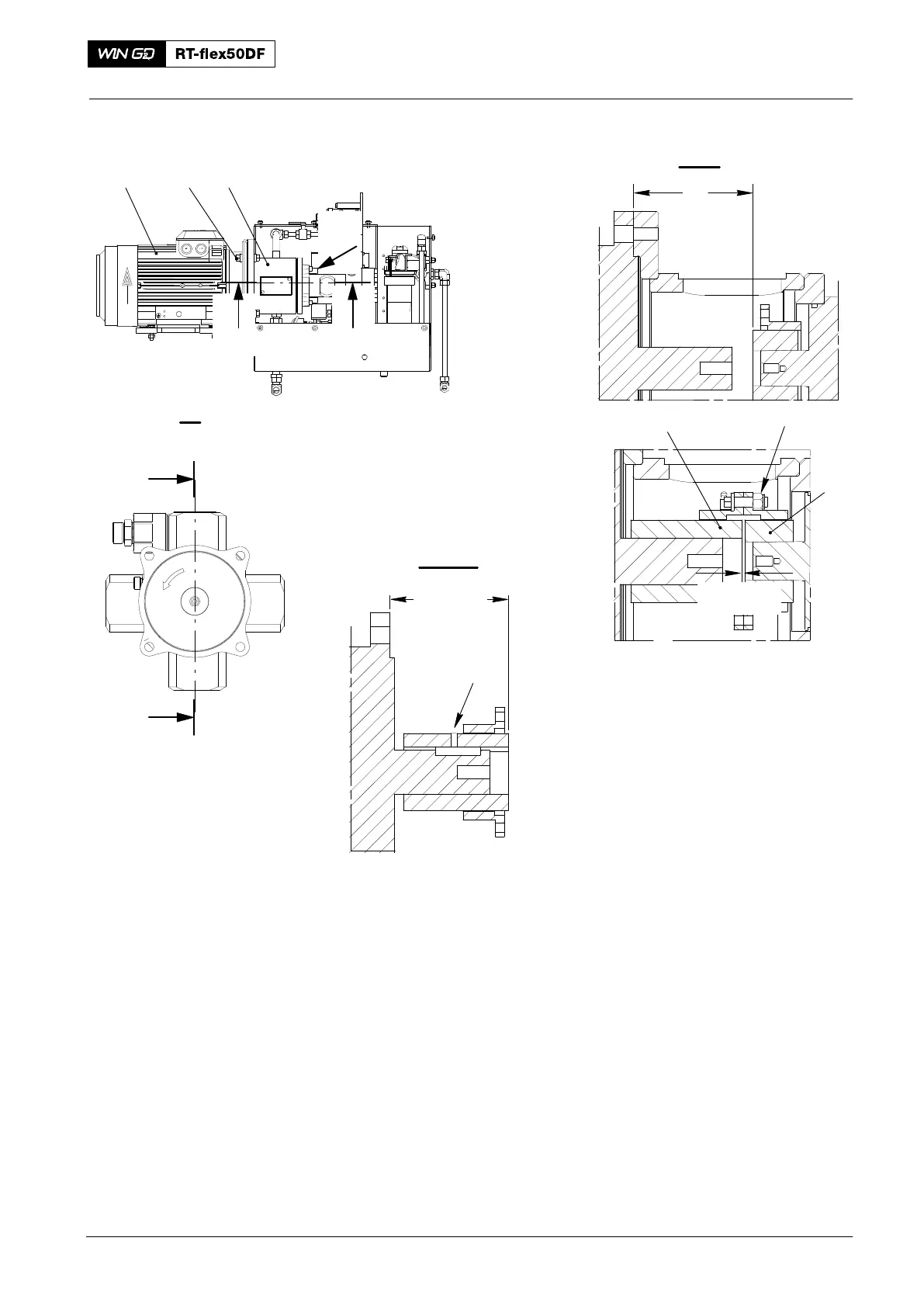

Fig. 4
Note: Some parts can look different.
WCH03848
WCH03848
2
X−3.0 mm
II - II
5
16
3.0 mm
3
4
7
24) Attach the sleeves together with the screws (3) and nuts (2).
25) Torque the screws (3) and nuts (2) to 36 Nm.
26) Make sure that the sleeves (1) turn freely an axial distance of ±1.5 mm.
3. Completion
1) Apply NeverSeez NSBT8 to the threads and surfaces that touch of the pilot fuel
pressure pipe (4, Fig. 5).
2) Attach the pilot fuel pressure pipe (4) as shown.
3) Torque the two coupling nuts (5) to 30 Nm.
4) Install the pilot fuel return pipe (2).
5) Install the fuel inlet pipe (10).
6) Connect the electrical connection to the electric motor (1).
2018
Pilot Fuel Pump: Removal and Installation
