Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
25/45
KF

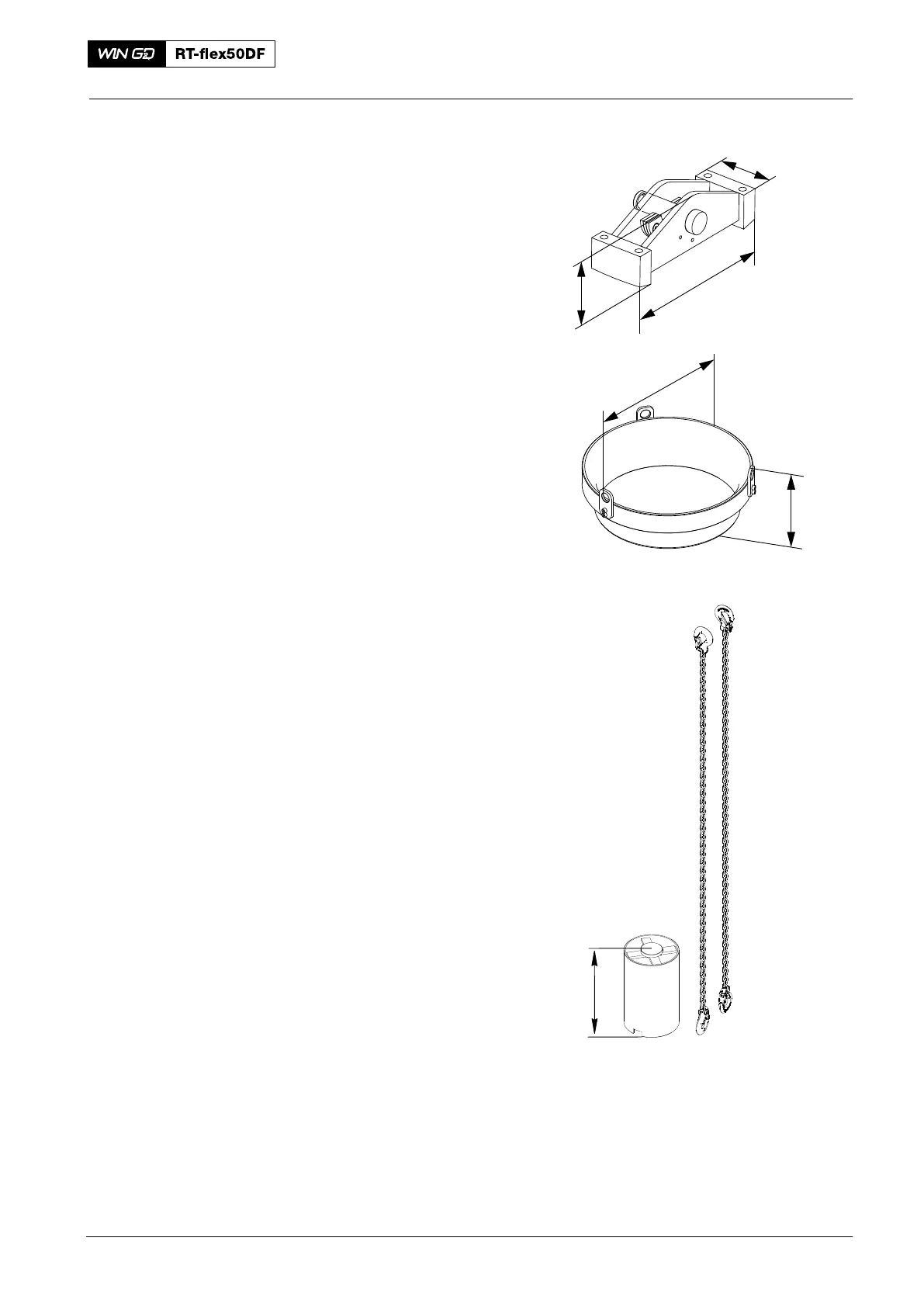

KF 94156 1 Fitting and dismantling device
For piston assembly
X = 141 mm
Y = 153 mm
Z = 417 mm
X
YZ
KF 94157 1 Dismantling and assembling tool
For piston assembly
X = 616 mm
Y = 221 mm
Y
X
94344 2 Dismantling tool
for removal and installation of piston
rod gland and piston
including:
94344A 1 Holder
X = 312 mm
94344B 2 Chains
X
2020
Standard Tools
