Maintenance
9403−5/A1
Winterthur Gas & Diesel Ltd.
39/45

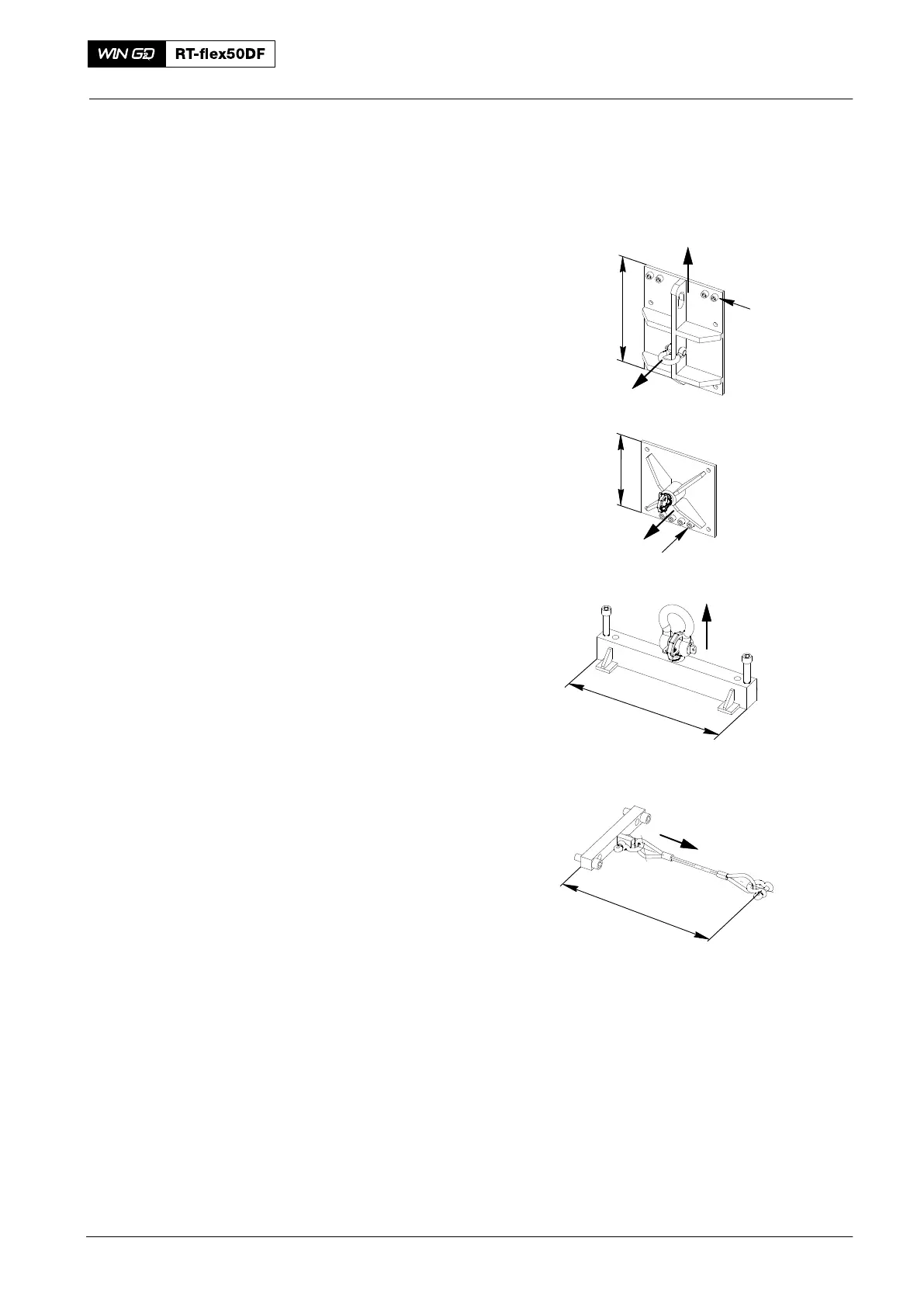

Tools for removal and fitting of water separator
engines with 1 scavenge air cooler
(underslung SAR design; TC at ES)
94667E 1 Lifting and withdrawing gear
including: 1 Shackle
4 Screws M12x25
X = 330 mm
(WLL 400 kg and 6000 N)
X
016.829/08
kg
N
DP
94667F 1 Disassembling tool
including: 1 RUD-eye bolt
4 Screws M12x25
X = 240 mm
(WLL 6000 N)
DP
X
016.829/08
94667G 1 Lifting tool
including: 1 RUD-eye bolt
1 Shackle
2 Screws M12x65
X = 330 mm
(WLL 400 kg)
X
016.829/08
94667H 1 Limiter
including: 1 Wire rope ∅10 mm
2 Shackles
2 Screws M16x50
X = 1187 mm
(WLL 6000 N)
X
018.229/09
