Xerox 8850 Service Manual

03/2003
4-38
8850/ 510DP
REP 8.7
Repairs and Adjustments

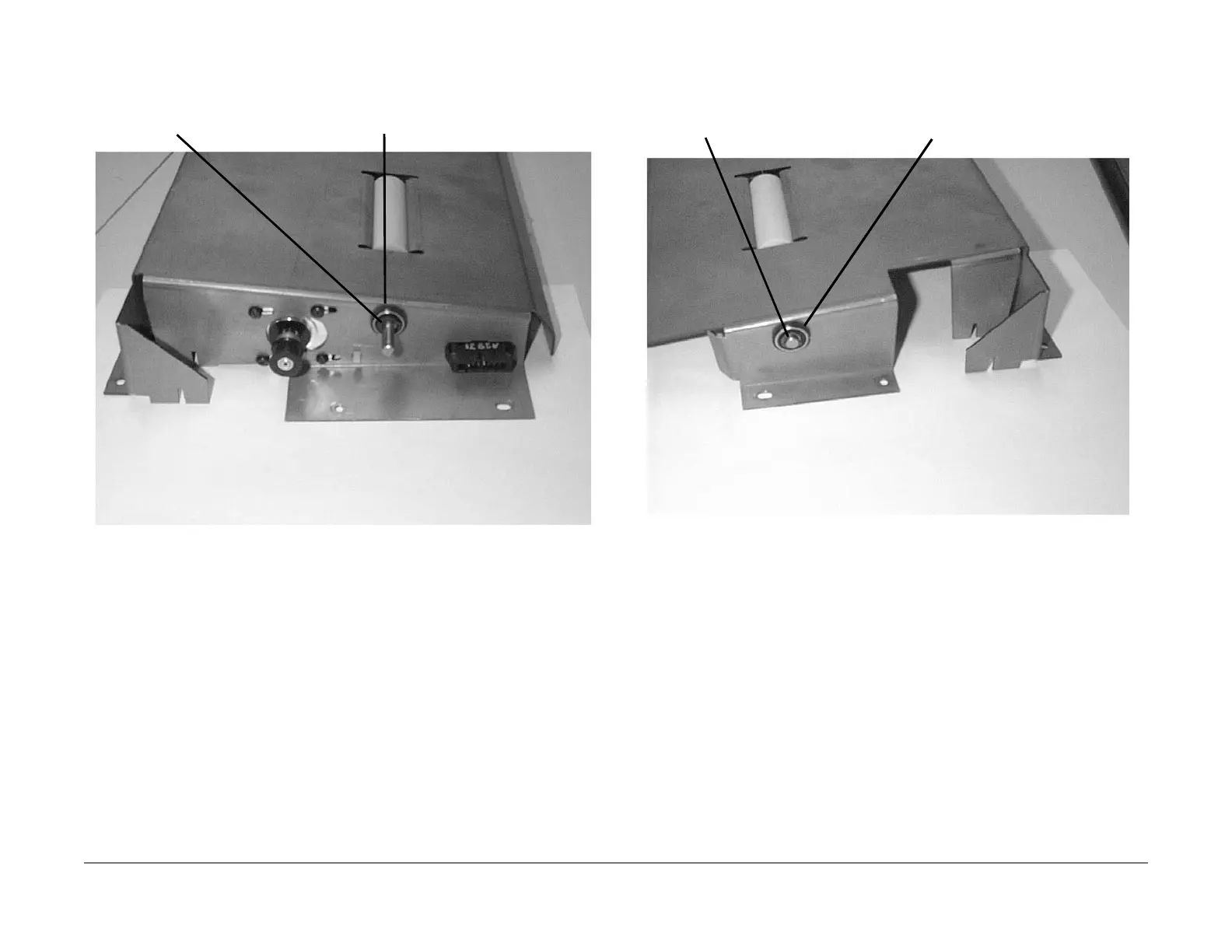

4. (Figure 3): Remove the mounting hardware from the left side of the Sheet Feed Drive Roll
Shaft.
Figure 3 Removing the Mounting Hardware from the Left Side
5. (Figure 4): Remove the mounting hardware from the right side of the Sheet Feed Drive
Roll Shaft.
Figure 4 Removing the Mounting Hardware from the Right Side
6. Turn the Lower Sheet Feed Assembly over.
1
Remove the E-ring
2
Remove the bearing
1
Remove the E-ring
2
Remove the bearing
