03/2003
4-39
8850/ 510DP
REP 8.7
Repairs and Adjustments
7. (Figure 5): Prepare to remove the Sheet Feed Drive Roll.

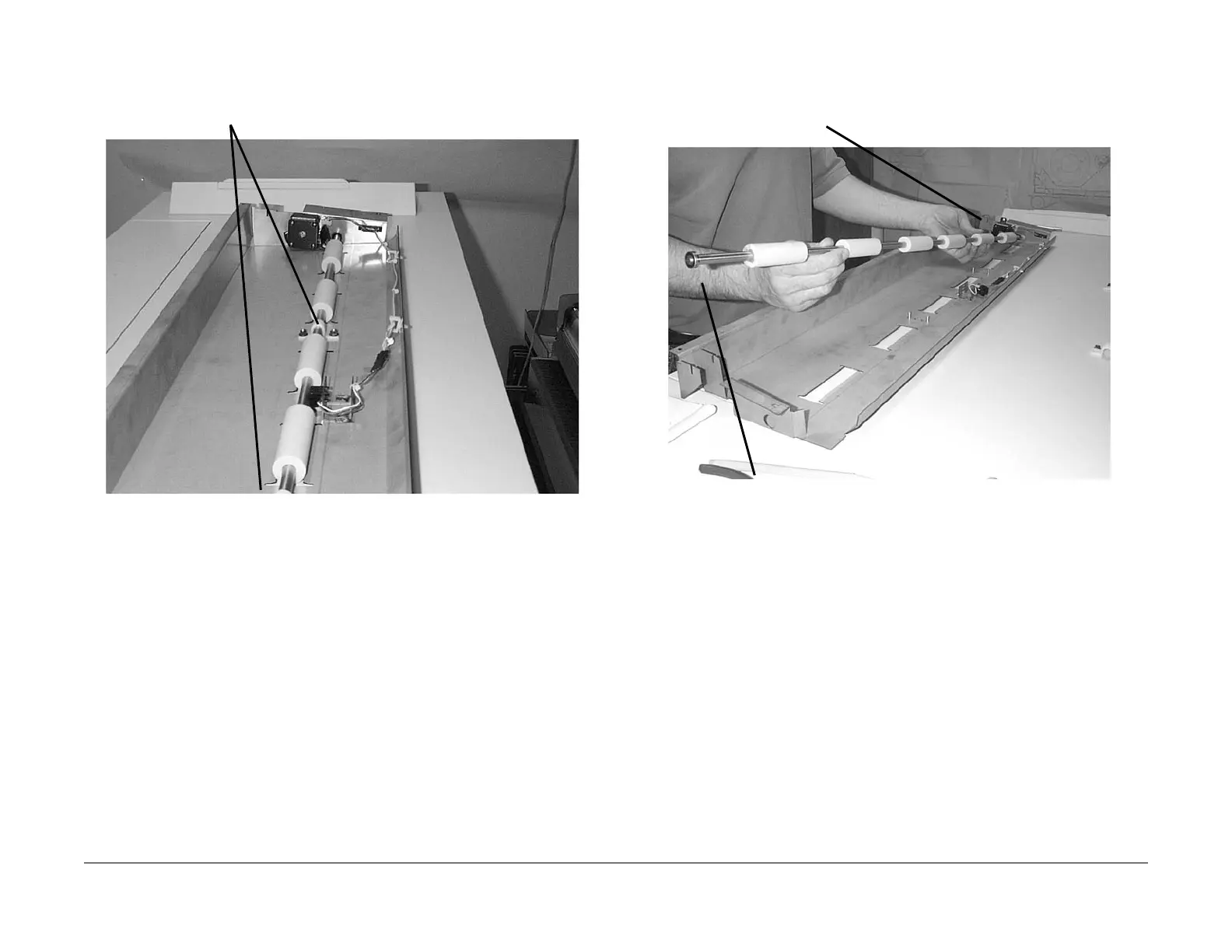

Figure 5 Preparing to Remove the Sheet Feed Drive Roll
8. (Figure 6): Remove the Sheet Feed Drive Roll from the Lower Sheet Feed Assembly.
Figure 6 Removing the Sheet Drive Roll
1
Remove the two retaining straps by removing the
two screws on each strap
1
Slide the shaft towards the Sheet Feed
Drive Motor
2
Withdraw the opposite end from the Lower
Sheet Feed Assembly first
To Next Page
