Xerox 8850 Service Manual

03/2003
4-41
8850/ 510DP
REP 8.12
Repairs and Adjustments

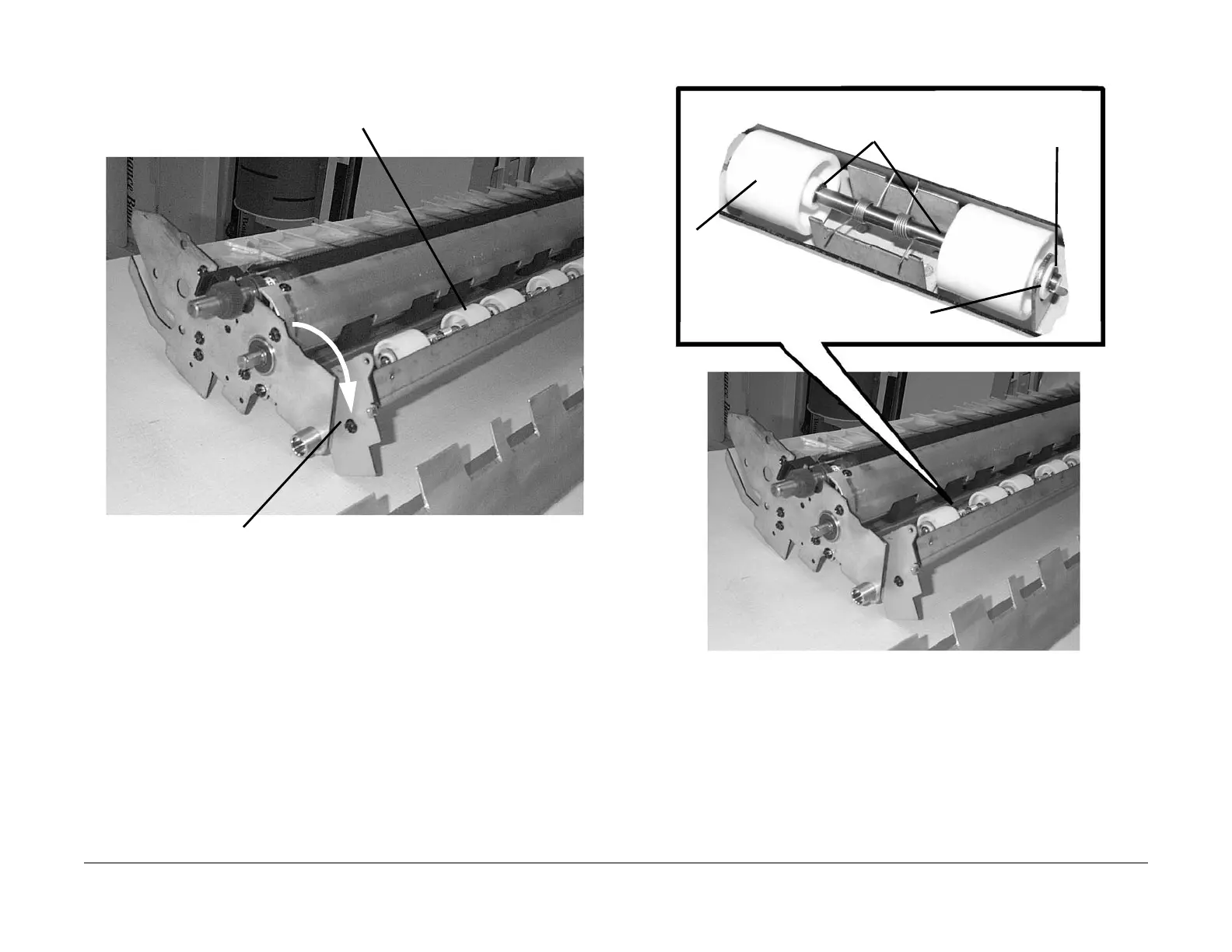

3. (Figure 2): Rotate the Registration Support Assembly back to expose the Registration
Pinch Rolls.
Figure 2 Rotating the Registration Support Assembly
4. (Figure 3): Remove the Registration Pinch Rolls.
Figure 3 Removing the Registration Pinch Rolls
Registration Support Assembly
Registration Pinch Rolls
1
Remove the two E-
rings (one at each end)
2
Remove the two bearings
(one at each end)
3
Remove the two
inner E-rings
4
Remove the
two rolls and
spring by slid-
ing out the
shaft
