03/2003
4-62
8850/ 510DP
REP 9.3
Repairs and Adjustments
3. (Figure 2): Remove the Drum from the Shaft Assembly.

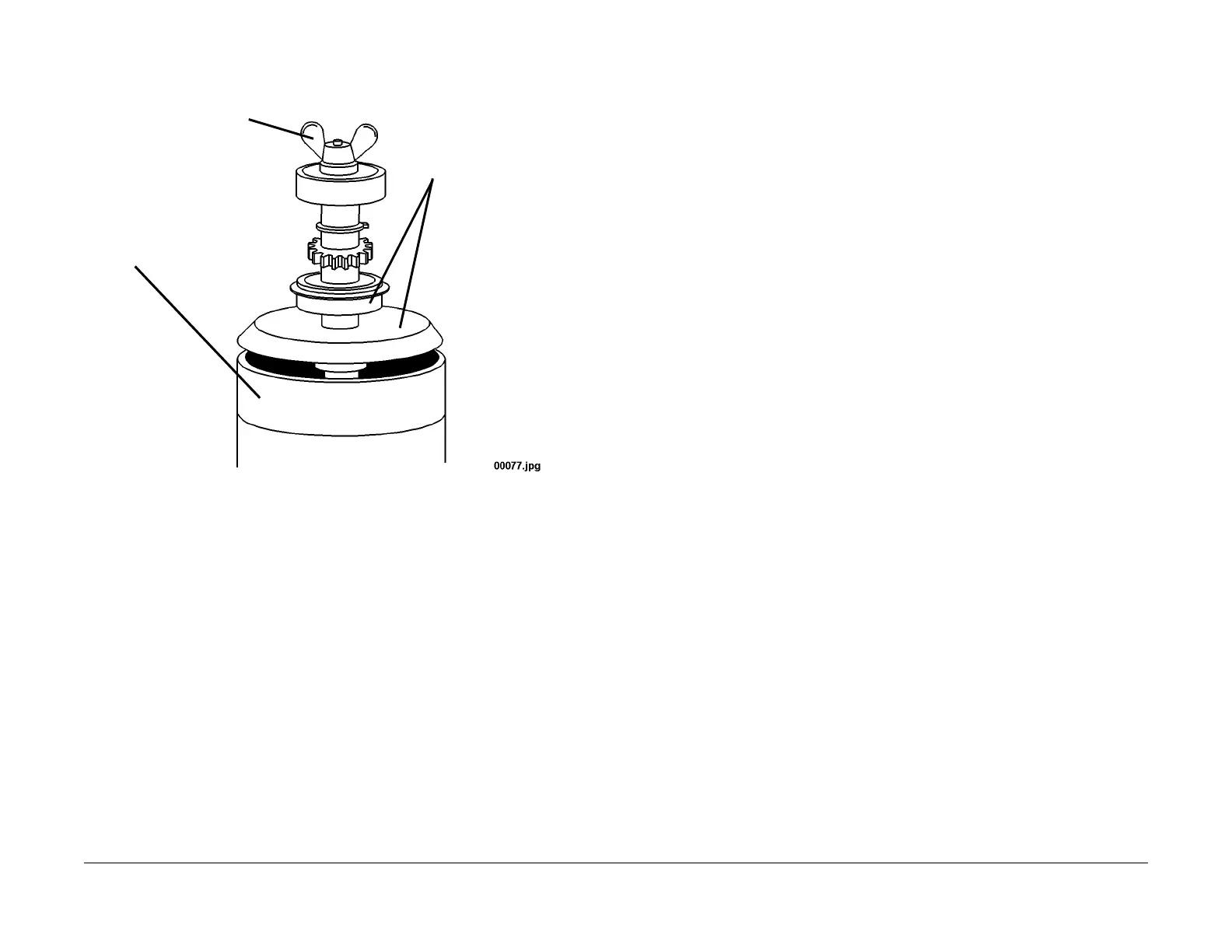

Figure 2 Removing the Drum from the Shaft Assembly
4. If the Drum is being replaced, install a Cleaner Blade Kit (REP 9.4).
5. Reassemble the Drum Assembly.
6. Perform (GP 4) Drum Cleaning Enhancement procedure.
7. Reinstall the Drum Assembly.
8. Perform the Electrostatic Series (ADJ 9.2).
3
Lift the Drum off the
Shaft Assembly
1
Remove the wing nut
2
Lift off the Bearing/Plate
Assembly
