03/2003
4-67
8850/ 510DP
REP 9.5
Repairs and Adjustments
CAUTION
Ensure that the two Clamp Bars (located at either end of the Developer Module) are rotated
downward prior to removing the Developer Module. This will prevent them from getting in the
way as the Developer Module is removed from the Printer.
CAUTION
The Developer Module must be kept in the same relative position as it is being removed from
the Printer. Excessive rotation or lateral swaying of the module can cause the Developer Mate-
rial to shift, resulting in diagnostic or image quality faults.
6. (Figure 2): Remove the Developer Module.

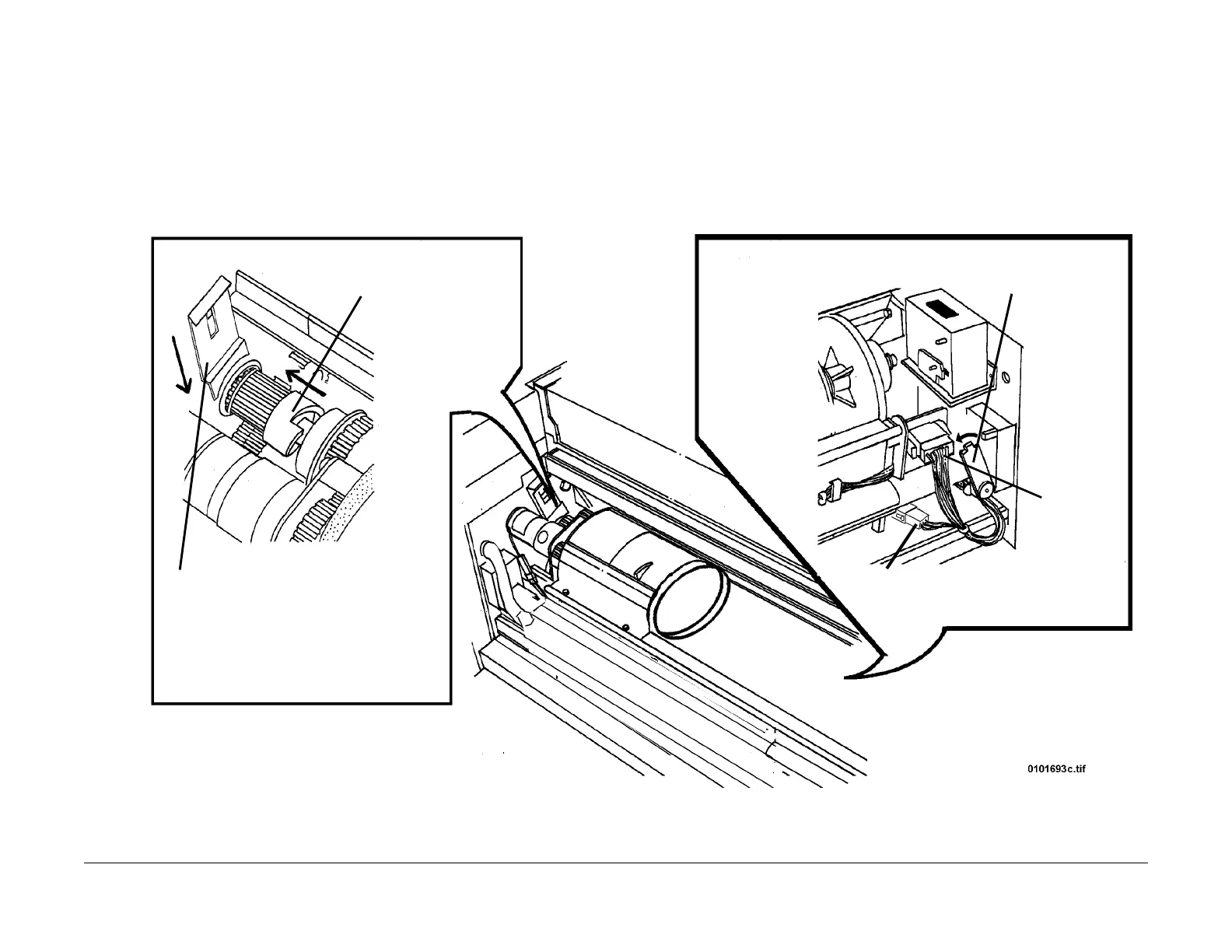

Figure 2 Removing the Developer Module
2
Move the Gear
Retainer into the
groove on the gear
1
Slide the gear to the left
3
Disconnect
A22P1
4
Press tab and swing down
Clamp Bar (one each end)
5
Remove the
Developer Module
from the Printer
6
8850 W/TAG 2 and SPS
510dp: Disconnect the
Developer Heater
To Next Page
