REP 9.5
Repairs and Adjustments
2. (Figure 4): Reinstall the Toner Cartridge.

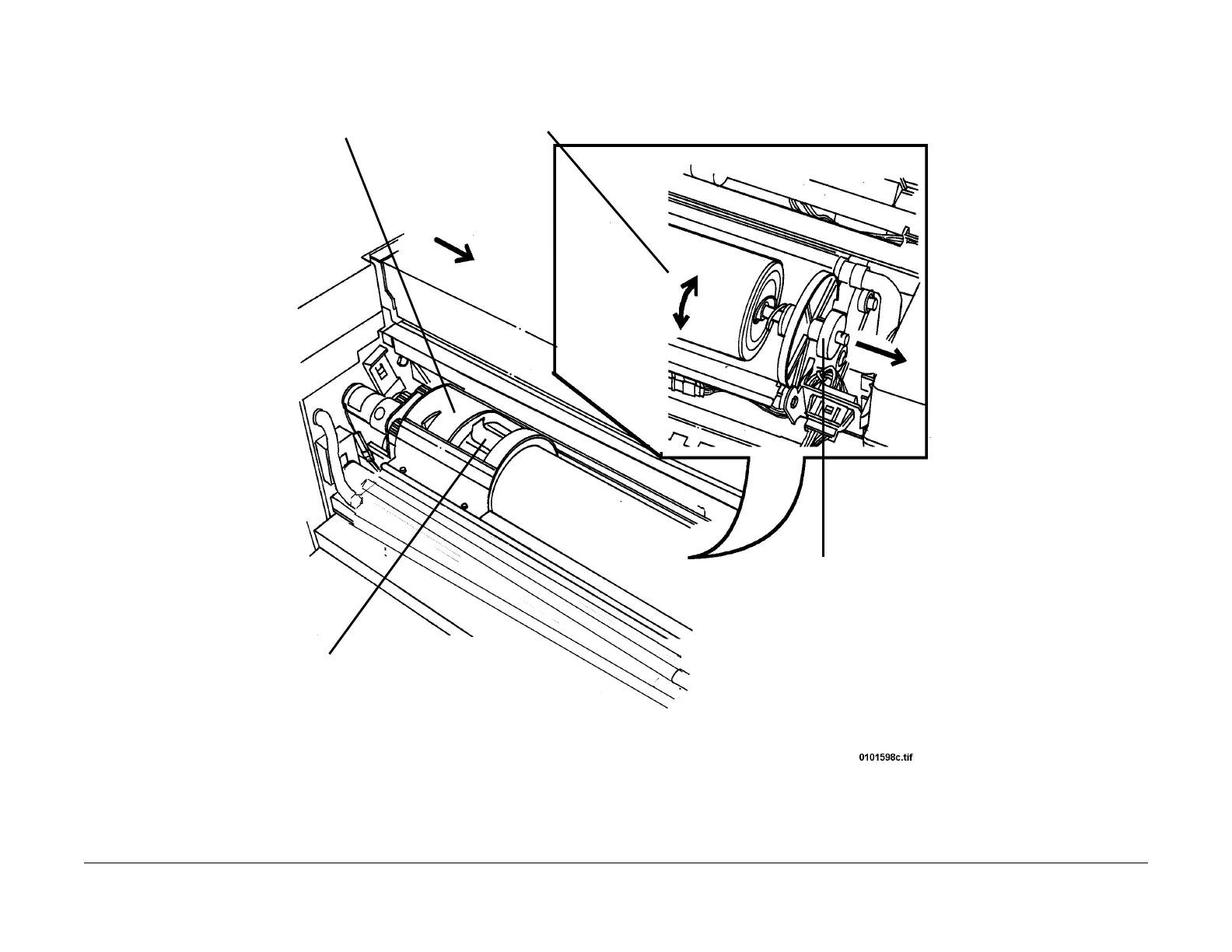

Figure 4 Reinstalling the Toner Cartridge
3. If new Developer Material has been installed, perform GP 8, Toner Control System Cali-
bration.
4
Slide the Top Shield
closed
3
Remove the tape
2
Partially rotate the Toner Cartridge in both directions to ensure that the
cartridge is locked in the Drive Hub
1
Pull the plunger and
then reinstall the
Toner Cartridge
