03/2003
4-72
8850/ 510DP
REP 9.7
Repairs and Adjustments
4. (Figure 2): Dump the Developer Material.

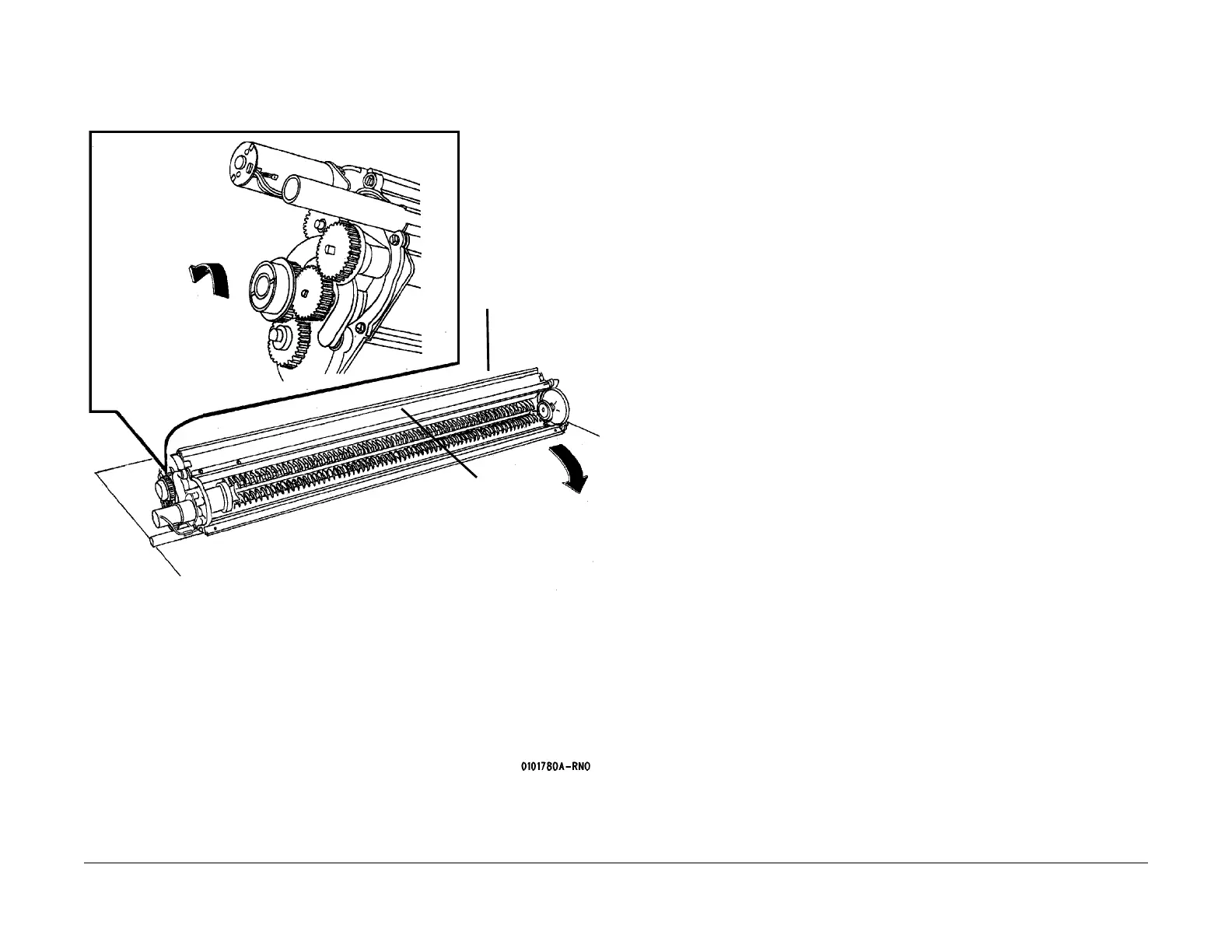

Figure 2 Dumping the Developer Material
CAUTION
Do not rotate the Auger Gears individually more than the slight amount required for removal or
to mesh the teeth during reinstallation. If the factory setting of the augers is changed during the
procedure, perform the adjustment procedure, Augers (ADJ 9.6).
1
Rotate the
Developer
Module
2
Rotate the gear
counterclockwise
Magnetic Roll
To Next Page
