03/2003
4-73
8850/ 510DP
REP 9.7
Repairs and Adjustments
5. (Figure 3): Remove the Pressure Equalizer Tubes.

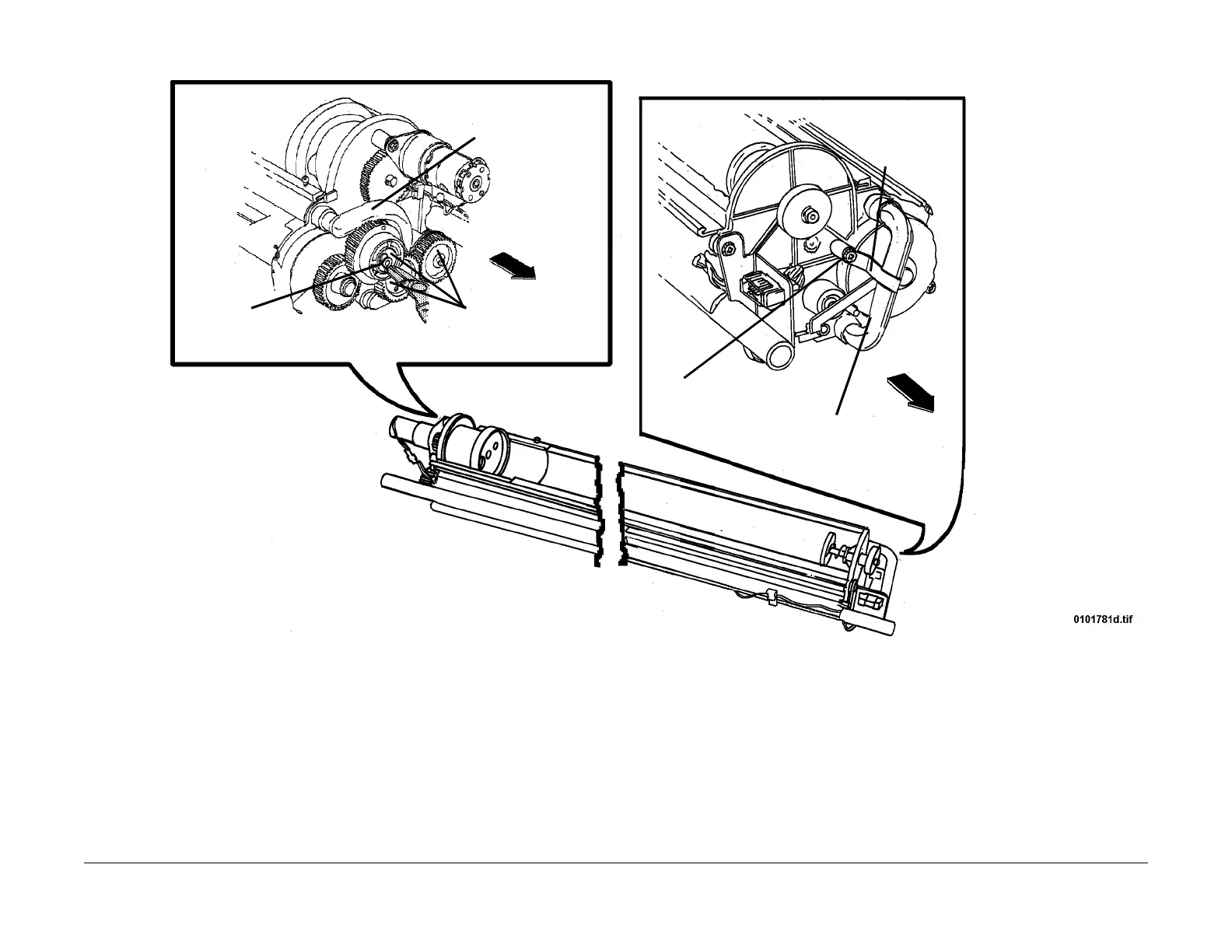

Figure 3 Removing the Pressure Equalizer Tubes
6. Using a vacuum cleaner, clean the entire Developer Module, Magnetic Roll, and Pressure
Equalizer Tubes thoroughly.
CAUTION
Ensure that the entire length of the tube on the Developer Module is clear of any developer.
7. Using a vacuum cleaner, clean the housing where the Pressure Equalizer Tubes attach.
1
Remove the Grip
Ring
2
Remove the gears
(3)
3
Remove the Pres-
sure Equalizer Tube
4
Remove the screw
5
Remove the
retainer
6
Remove the Pressure
Equalizer Tube
