03/2003
4-78
8850/ 510DP
REP 9.7
Repairs and Adjustments
8. (Figure 8): Reinstall the Toner Cartridge.

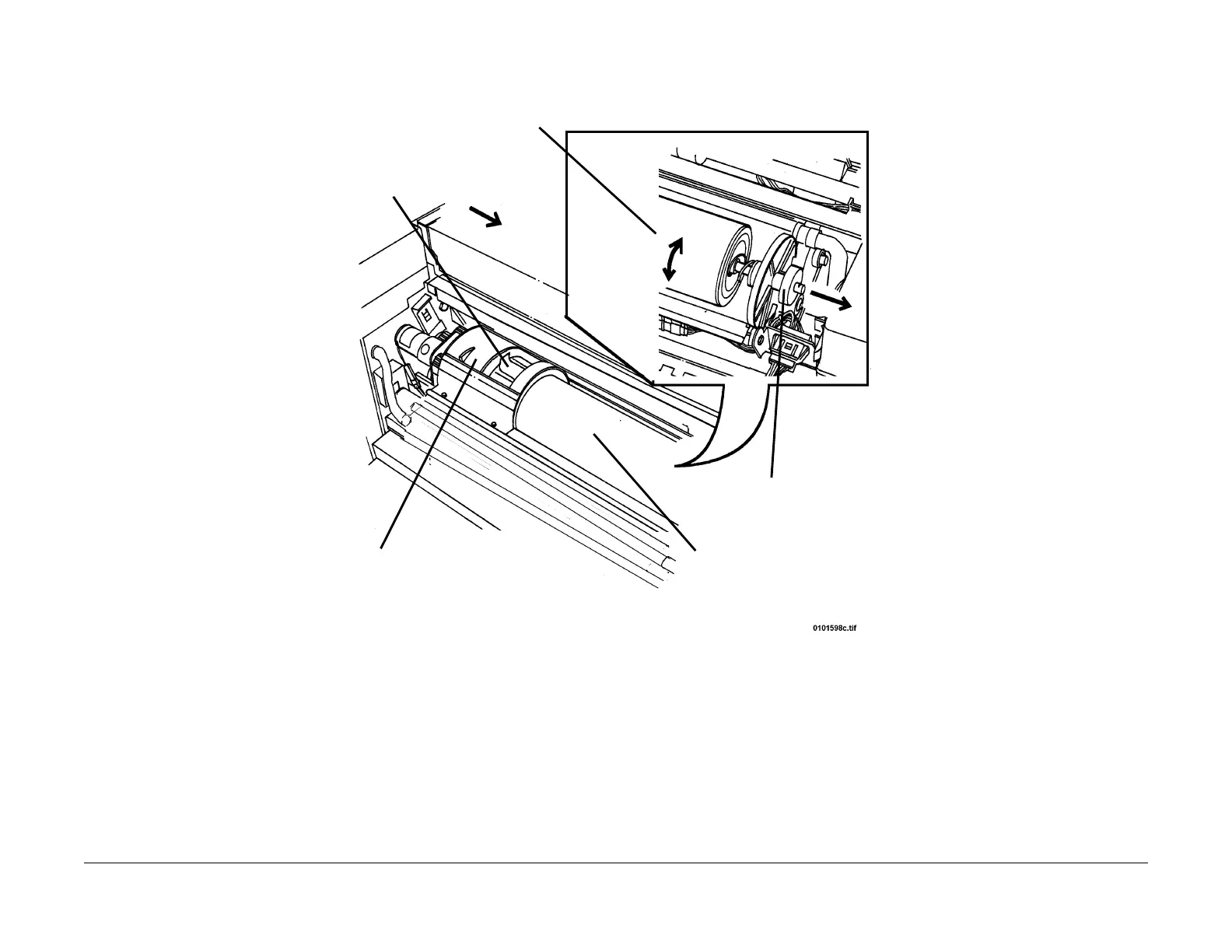

Figure 8 Reinstalling the Toner Cartridge
9. Switch on the Printer and after warm-up, run diagnostic [9 - 21- 4] for sixty seconds.
10. Refer to Section 6 and perform GP 8 Toner Control System Calibration.
5
Slide the Top Shield
closed
3
Partially rotate the Toner Cartridge in both directions to ensure that the
cartridge is locked in the Drive Hub
4
Remove the tape
1
Reinstall the Toner Car-
tridge while performing
Step 2
2
Pull the Plunger
