03/2003
4-77
8850/ 510DP
REP 9.7
Repairs and Adjustments
5. (Figure 7): Reinstall the Top Shield, taking care not to overtighten the screws.

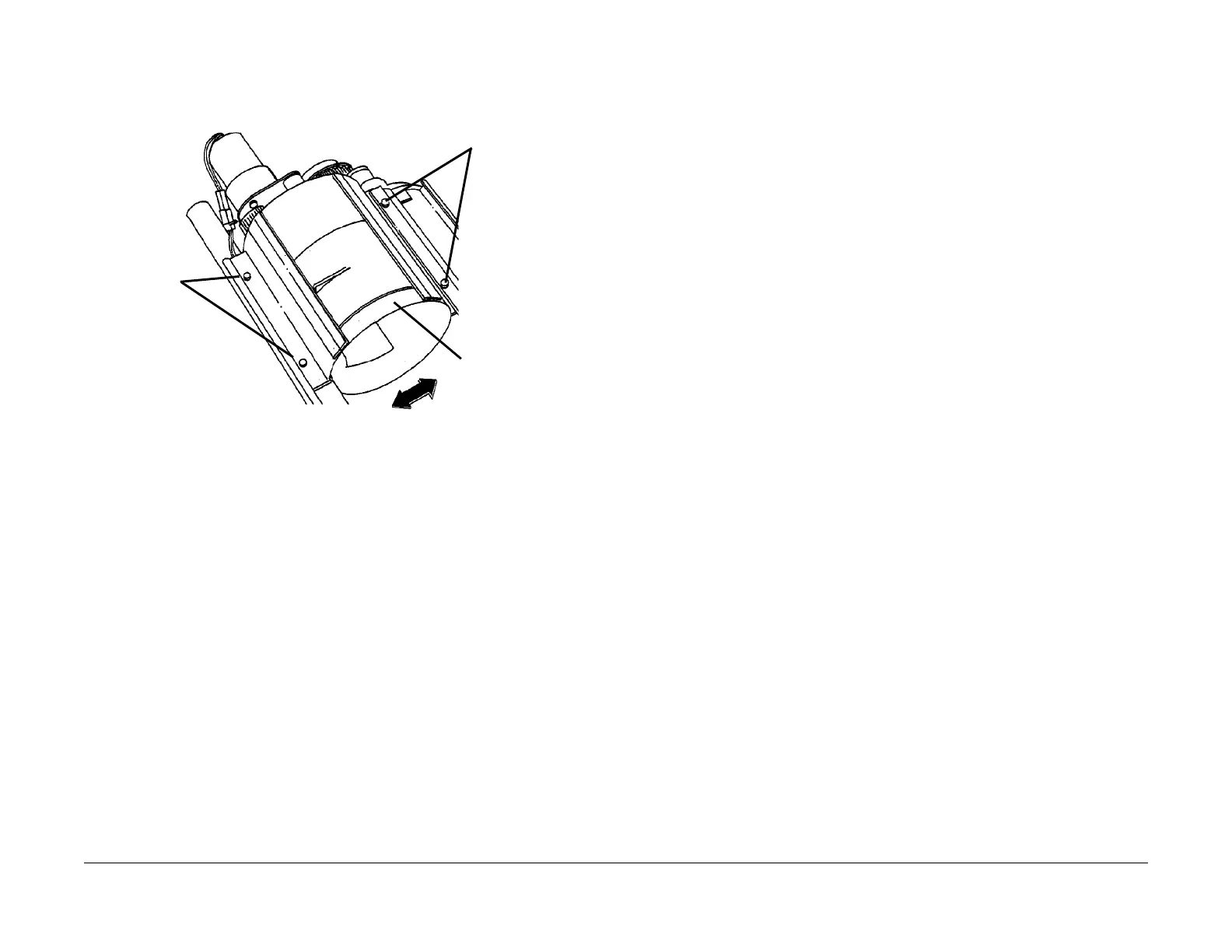

Figure 7 Reinstalling the Top Shield
6. (Figure 1): Reinstall the Sump Filter onto the Developer Module.
7. Reinstall the Developer Module (REP 9.5).
1
Reinstall the Top
Shield
3
Tighten the screws (2), being
careful not to drive the screws
through the Top Shield
2
Reinstall the
screws (2)
To Next Page
