REP 9.12
Repairs and Adjustments
Replacement
1. Reinstall the Toner Cartridge Home Sensor.
2. Perform the Toner Cartridge Home Sensor Adjustment (ADJ 9.5).
CAUTION
To avoid damage to the Drive Plate Seal, always rotate the drive plate in the direction shown in
[Figure 2].
3. (Figure 2): Reinstall the Cartridge Drive Plate.

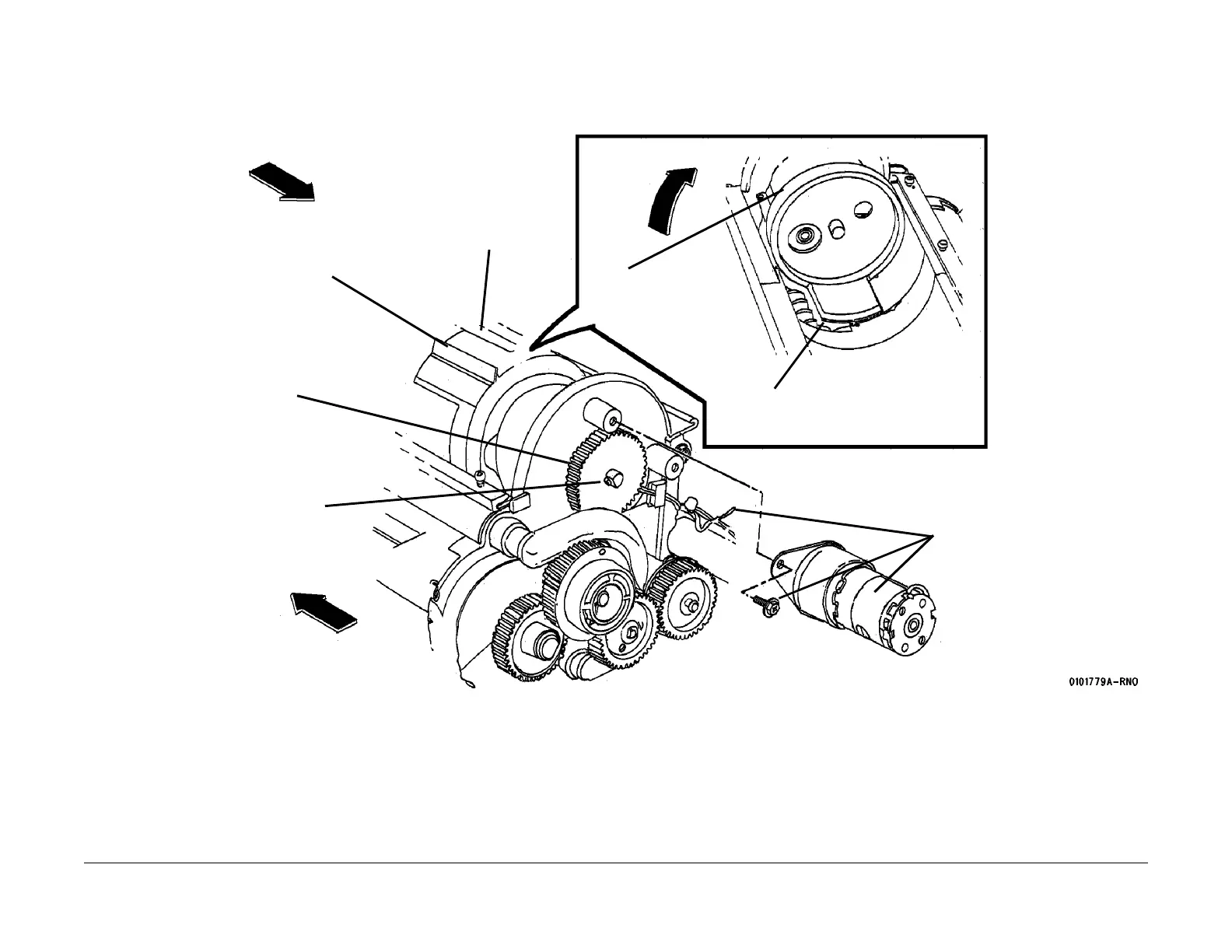

Figure 2 Reinstalling the Cartridge Drive PLate
1
Reinstall the Cartridge
Drive Plate with the
seal up
4
Position the tab at the
bottom
3
Rotate while per-
forming step 4
2
Reinstall the gear
Seal
5
Reinstall the E-ring
6
Reinstall the motor, the two
mount screws and the Ground
Wire
