03/2003
4-87
8850/ 510DP
REP 9.12
Repairs and Adjustments
4. (Figure 3): Reinstall the Top Shield, taking care not to overtighten the screws.
CAUTION
In the following step take care not to overtighten the two screws on the interior side of the
Developer Module, as this can cause the screws to puncture the Top Shield.

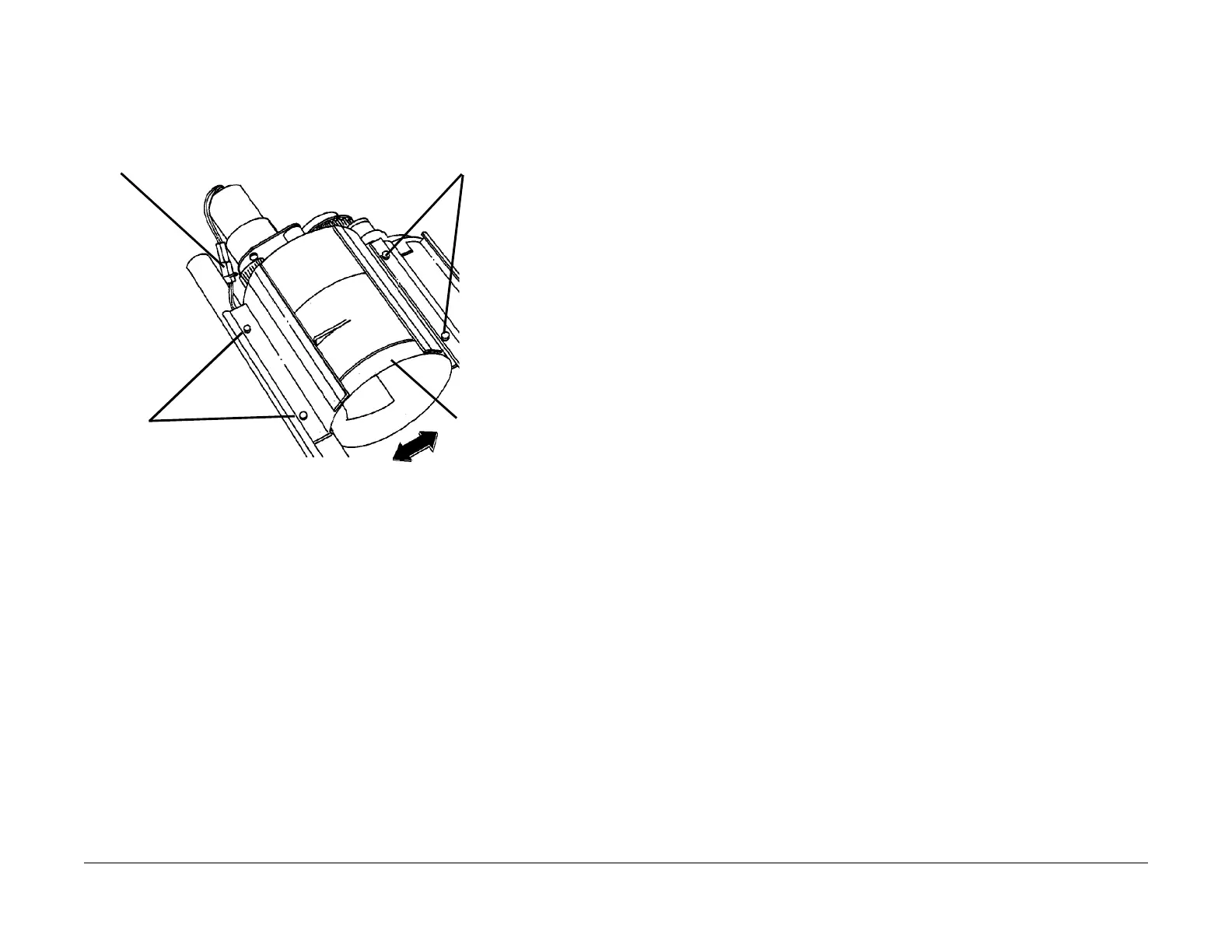

Figure 3 Reinstalling the Top shield
5. Reinstall the Developer Module (REP 9.5).
4
Connect M1
1
Reinstall the Top Shield
2
Reinstall the
screws (2)
3
Tighten the screws
(2), being careful not
to drive the screws
through the Top
Shield
To Next Page
