REP 9.14
Repairs and Adjustments
2. (Figure 3): Reinstall the Top Shield, taking care not to overtighten the screws.

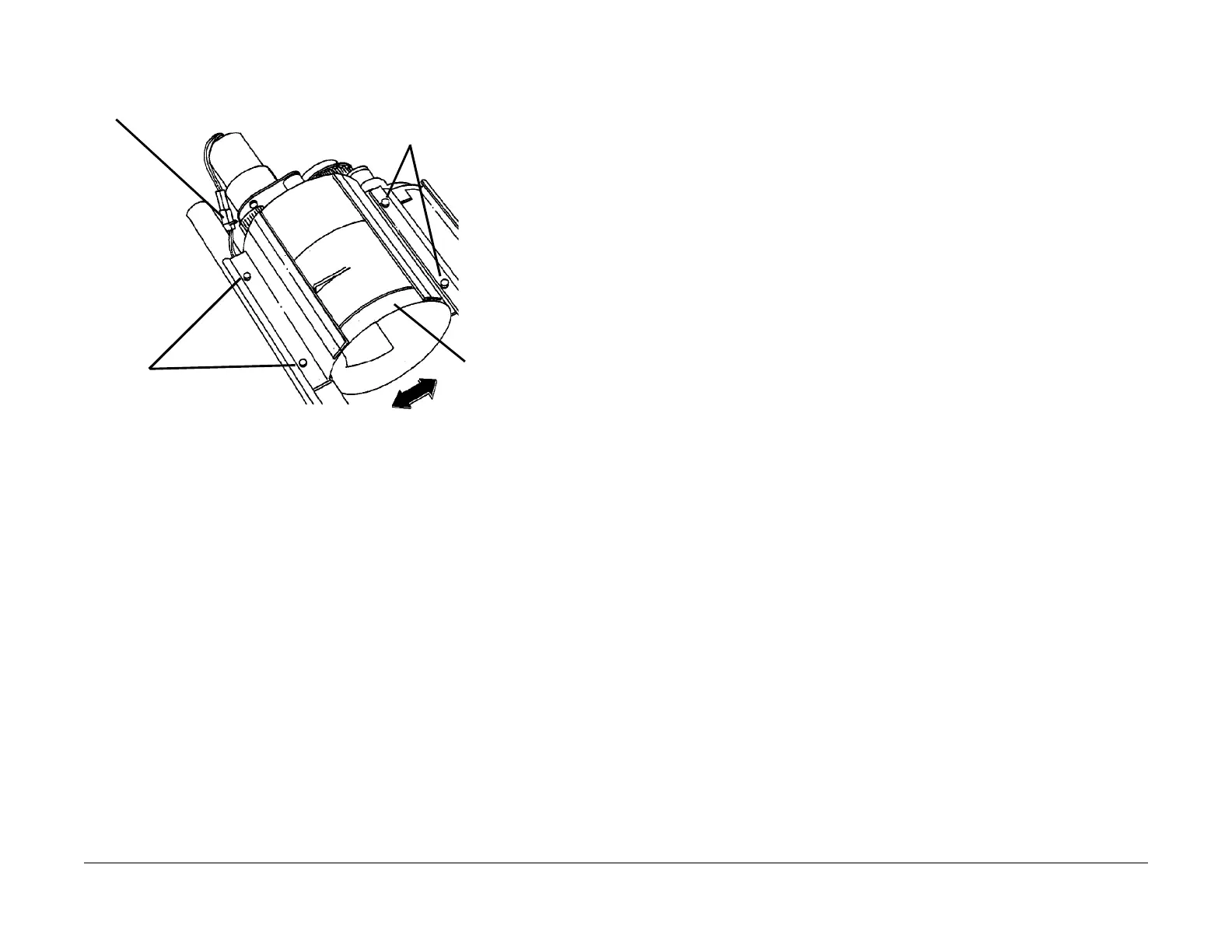

Figure 3 Reinstalling the Top Shield
3. Reinstall the Developer Module (REP 9.5).
4
Connect P1
1
Reinstall the Top Shield
2
Reinstall the
screws (2)
3
Tighten the screws (2), being
careful not to drive the screws
through the Top Shield
To Next Page
