03/2003
4-137
8850/ 510DP
REP 10.11
Repairs and Adjustments
2. (Figure 1): Remove the AC Module Front.

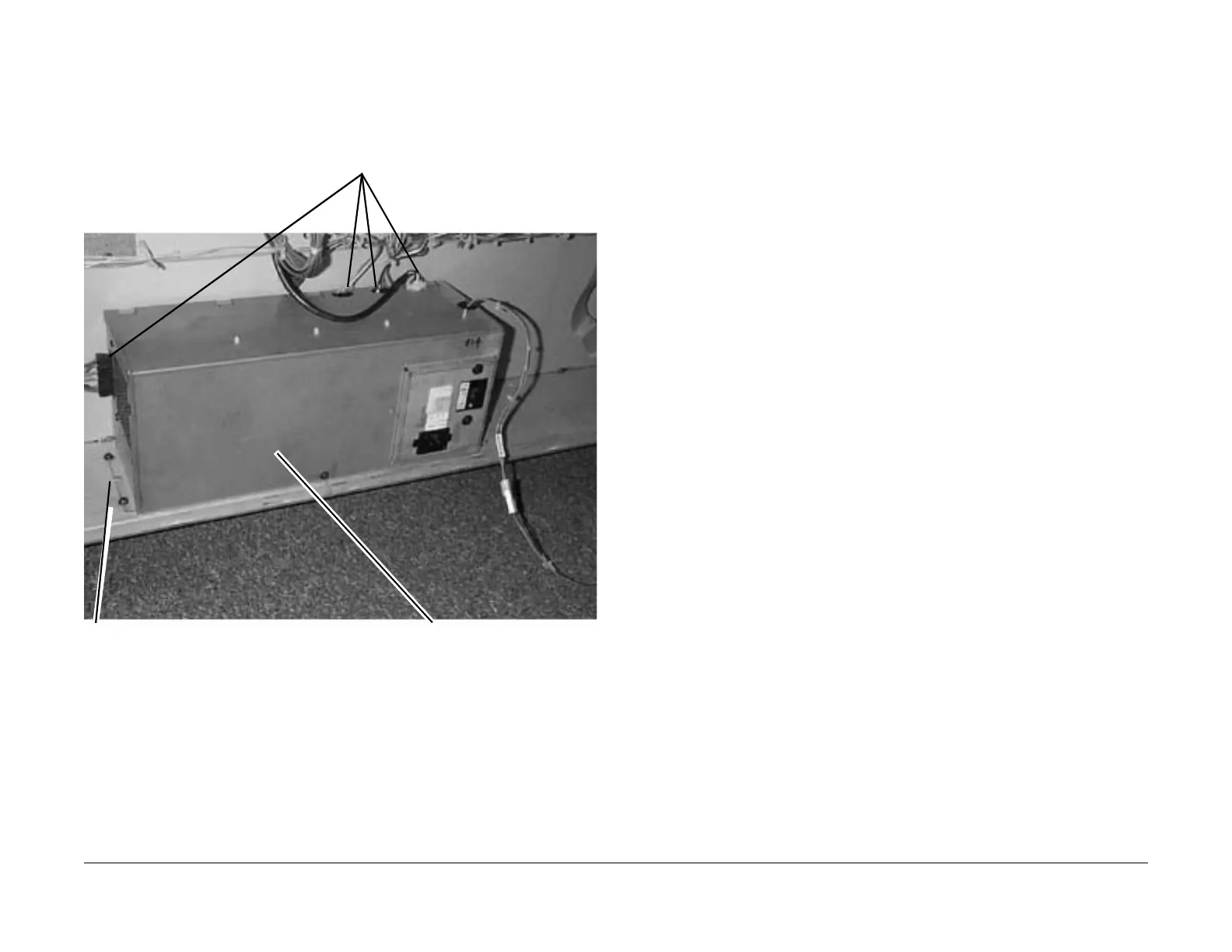

Figure 1 Removing the AC Module
Replacement
1. The replacement is the reverse of the removal. Be sure to connect J1, J2 and the ground
and fan wires.
2. Check/Adjust the Fusing Temperature. Perform ADJ 10.1 Fuser Temperature (NVM).
1
Disconnect the 4
Connectors
2
Loosen the screws, 2 on the one side and remove the
two screws from the other side of the AC Module
3
Remove the AC Module
To Next Page
