Xerox 8850 - Page 308

03/2003
6-22
8850/ 510DP
Installation Procedure
General Procedures

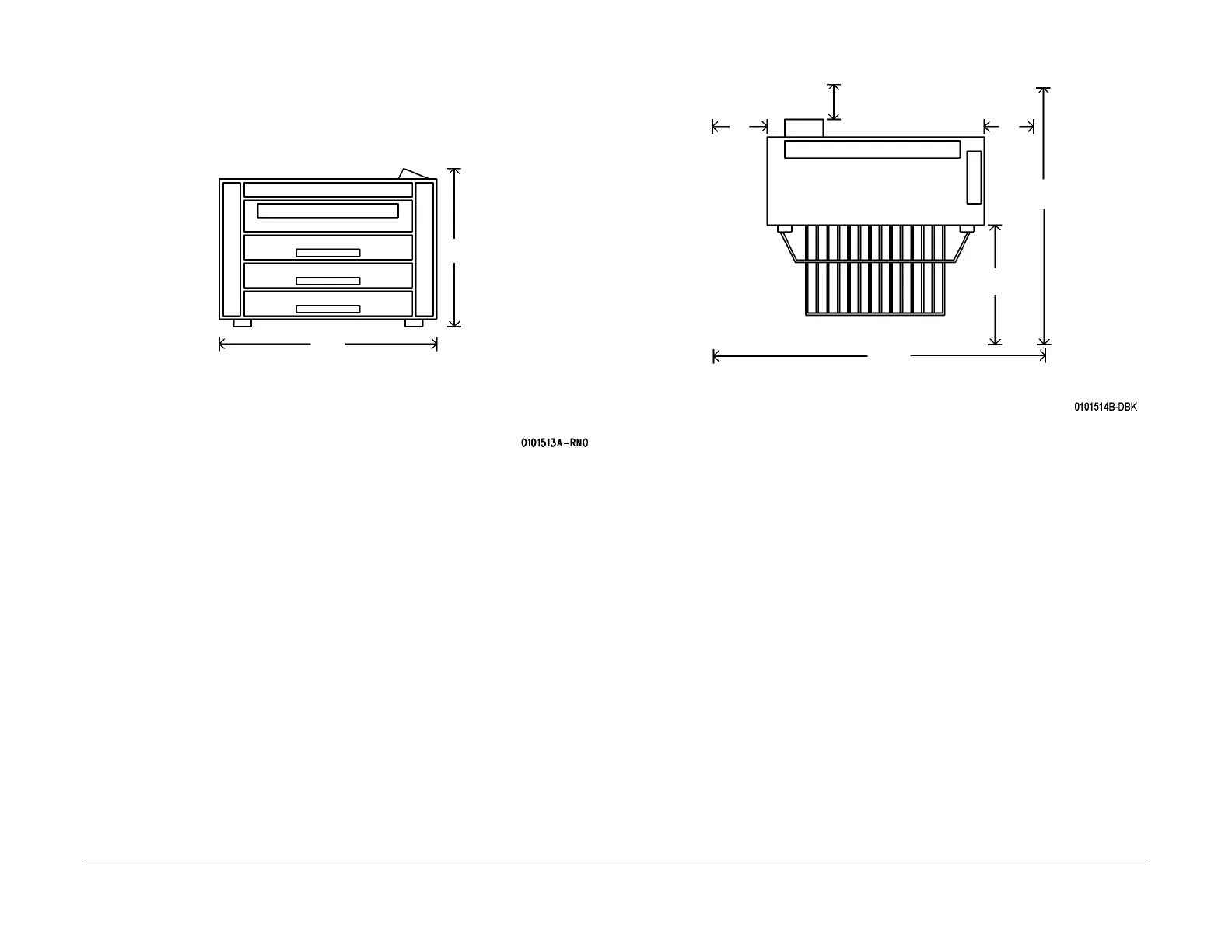

(Figure 2): IOT Dimensions.
Figure 2 IOT Dimensions
(Figure 3): Minimum Space Requirements.
Figure 3 8850 Minimum Space Requirements
Rear
Front
43.5”
(108 cm)
56.75”
(141.25 cm)
59.3”
(150.6 cm
36”
(91.4 cm)
24”
(60 cm)
36”
(91.4 cm)
89” (222.5 cm)
36”
(91.4cm)
129”
(328cm)
