03/2003
4-6
8850/ 510DP
REP 3.2
Repairs and Adjustments

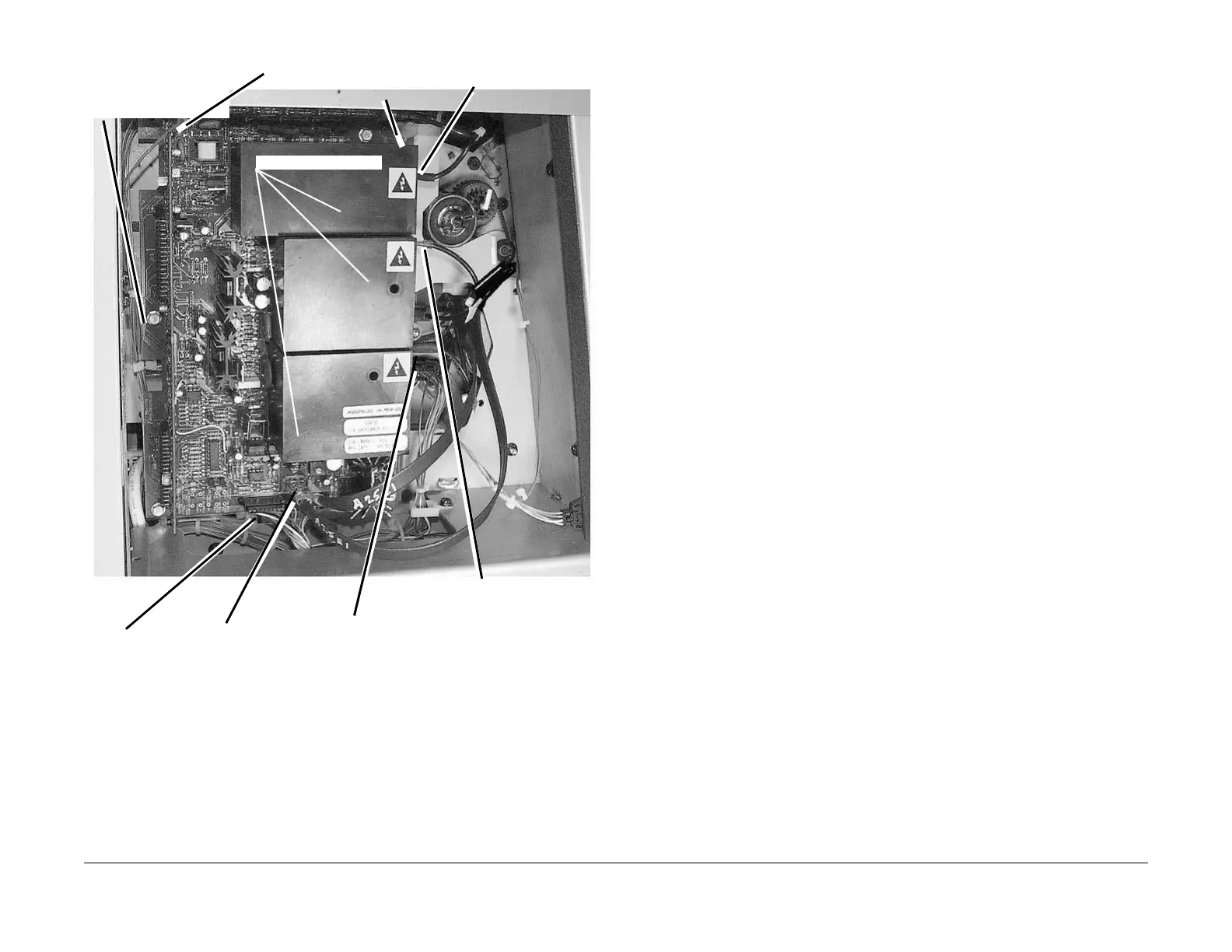

Figure 1 Removing the Xerographic High Voltage Power Supply
1
Disconnect
A25P1
3
Disconnect the
Detack Corotron wire
J6
4
Disconnect the BTR
wire J5
5
Disconnect the Charg
e
Scorotron wire J2
2
Disconnect ground
wires
6
Disconnect the
Grid wire
7
Disconnect J4
8
Remove the six mount
screws and remove the
HVPS
Relay Cases
