03/2003
4-22
8850/ 510DP
REP 7.14
Repairs and Adjustments

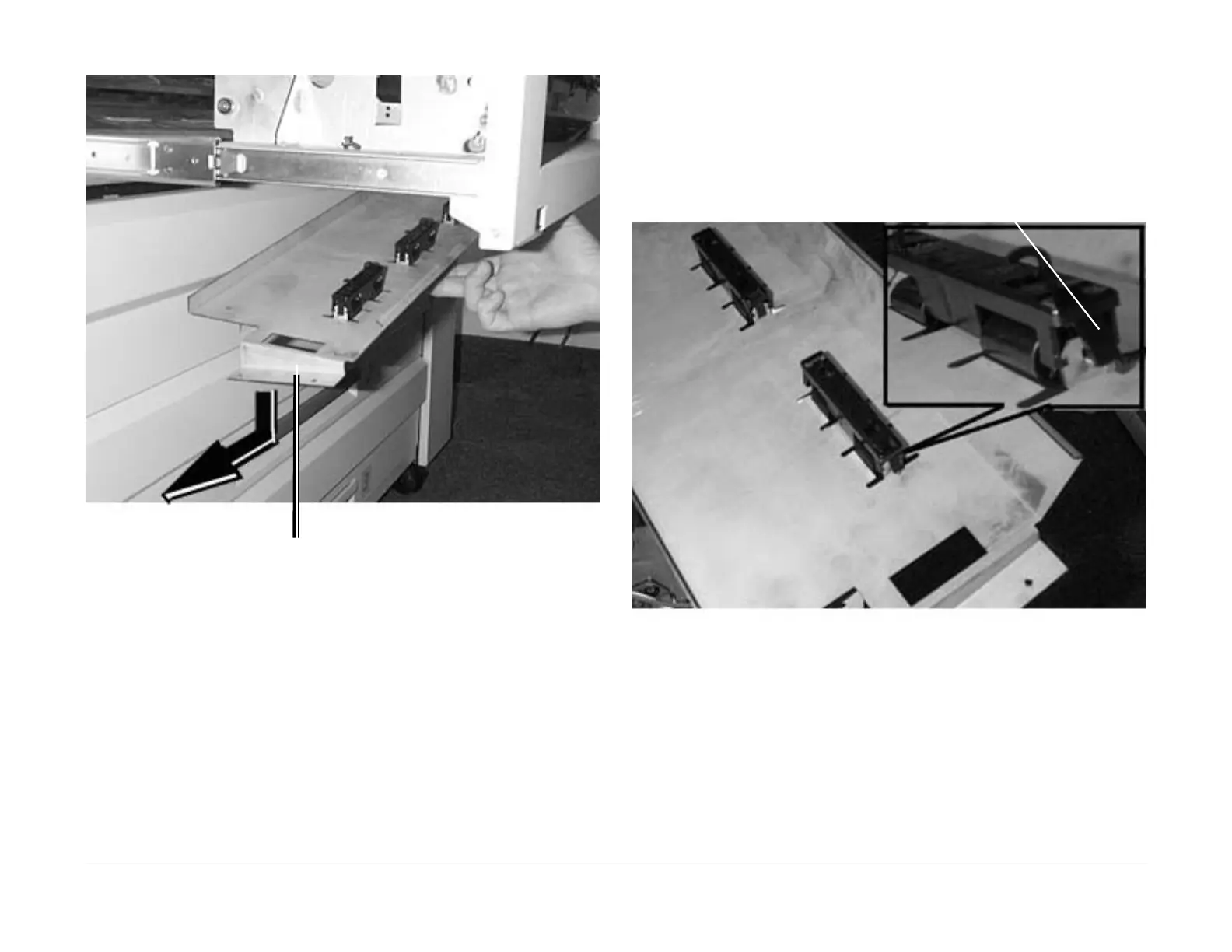

3. (Figure 3): Remove the Upper Sheet Feed Housing.
Figure 3 Removing the Upper Sheet Feed Housing
4. (Figure 4): Remove the Pinch Roll Cover
NOTE: Be careful not to lose the spring when removing the Cover
Figure 4 Removing the Pinch Roll Cover
1
Lower the Upper Sheet Feed Housing and pull
to the left to remove the tabs from the right side
frame
1
Release the Tabs on
each side of the Cover
2
Remove the Cover
