Xerox COLORQUBE 8870 Service Manual

October 2012
4-46
ColorQube 8570/8870 Service Manual
REP 2.17
Revised, 3rd Revision - Xerox Internal Use Only
Repairs and Adjustments
Removal
Drum Wiper Blade Assembly
1. Lift and remove the Drum Wiper Blade Assembly from the Drum Maintenance Pivot Plate.

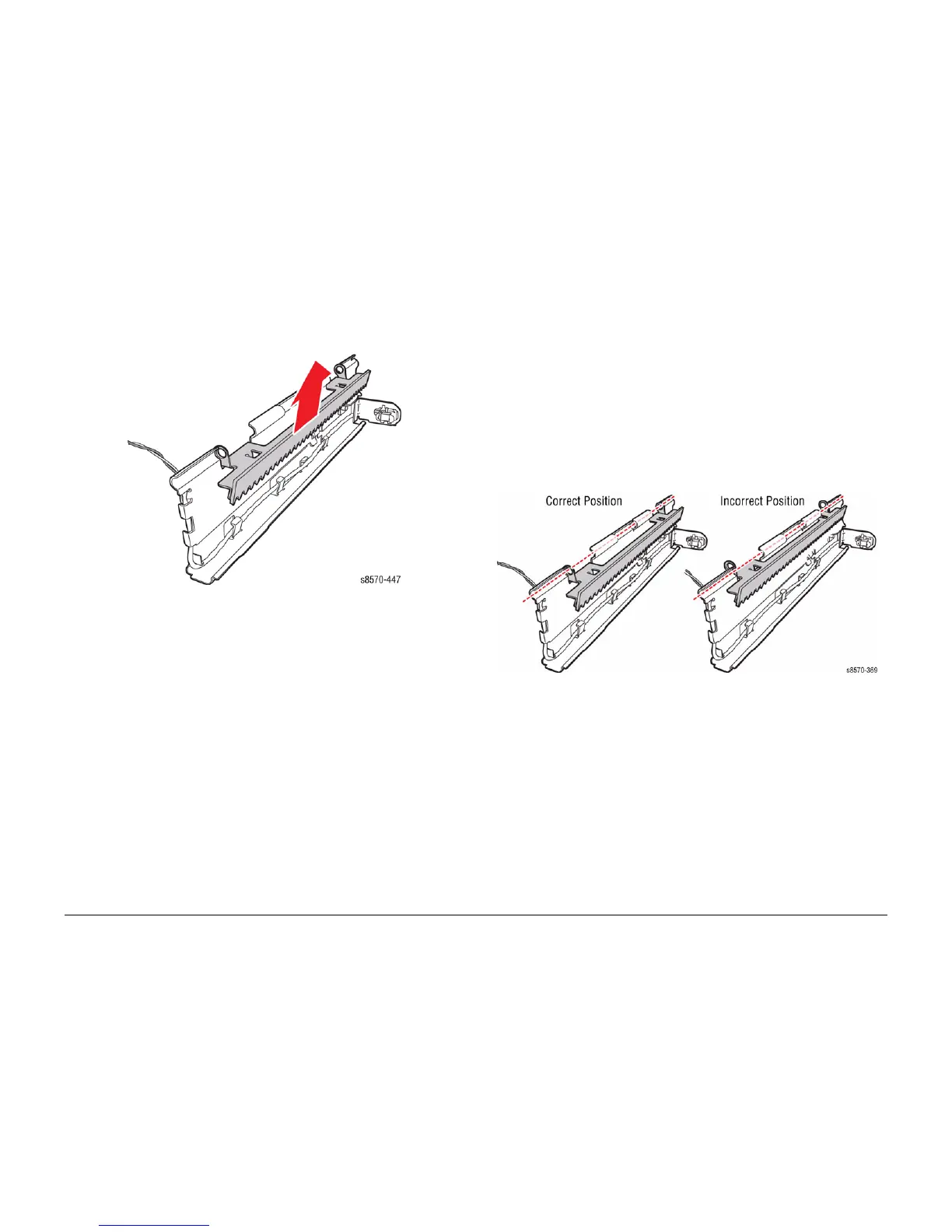

Figure 3 Removing the Drum Wiper Blade Assembly
Replacement
NOTE: For additional tips, refer to the Drum Maintenance Pivot Plate Installation video (also
available in the ColorQube 8570/8870 Training materials).
Before installing the Process Drive, perform the Manual Printhead Parking procedure (ADJ
1.4) and Wiper Blade Alignment procedure (ADJ 1.1) to put the Printhead and Wiper Assembly
in the Home position.
Be sure to place a sheet of paper through the front of the printer between the Drum Assembly
and the Pivot Plate Assembly to prevent damaging the Drum while installing the Pivot Plate
Assembly.
Do not unravel the wiring harness from the harness clips on the Pivot Plate. Be sure the Blade
sits towards the edge of the Drum Maintenance Pivot Plate as in Figure 4. Verify the blade
position.
Figure 4 Blade Location - Correct Position
