Xerox Phaser 4500 Service Manual

5-10 Phaser 4500 Service Manual
Registration (Side-to-Side)
Actions and Questions Yes No

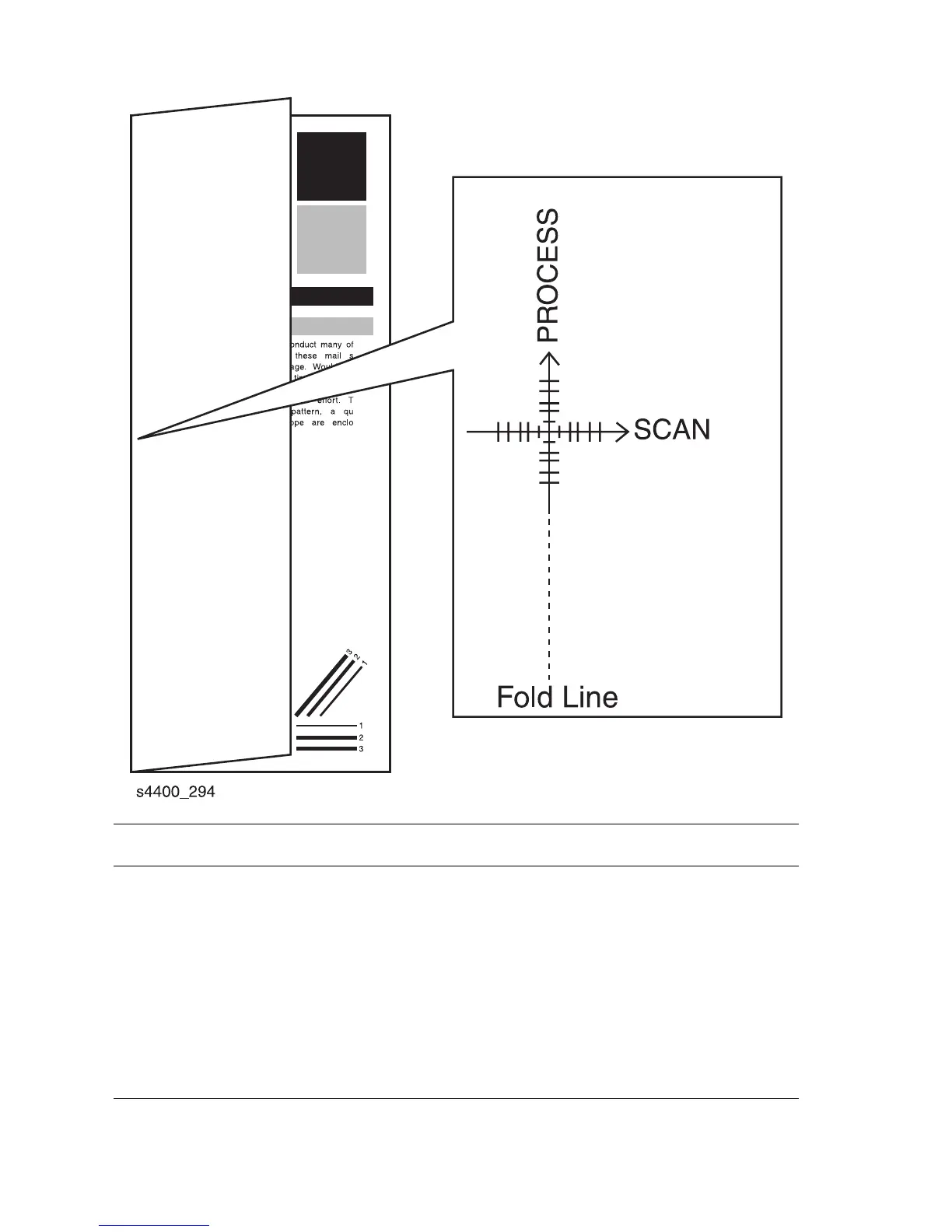

Measure the registration on two consecutive test prints. Fold
the paper in half (side-edge to side-edge). Observe the fold
line of the paper with reference to the cross hairs of the
target.
Is the fold within +/- 2.5 mm of the target cross hairs
(each line on the target is 1 mm).
The test
prints meet
the Side-to-
Side
Registration
Specification.
Go to
“Registration
(Lead Edge-
to-Trail Edge)”
on page 5-11.
Go to
“Registration”
on page 5-47.
